Heating Furnace (115 V, 50/60 Hz)
Heating Furnace (115 V, 50/60 Hz)
Regular price
$1,947.20
Sale price
$1,947.20
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description
Product Information: ..

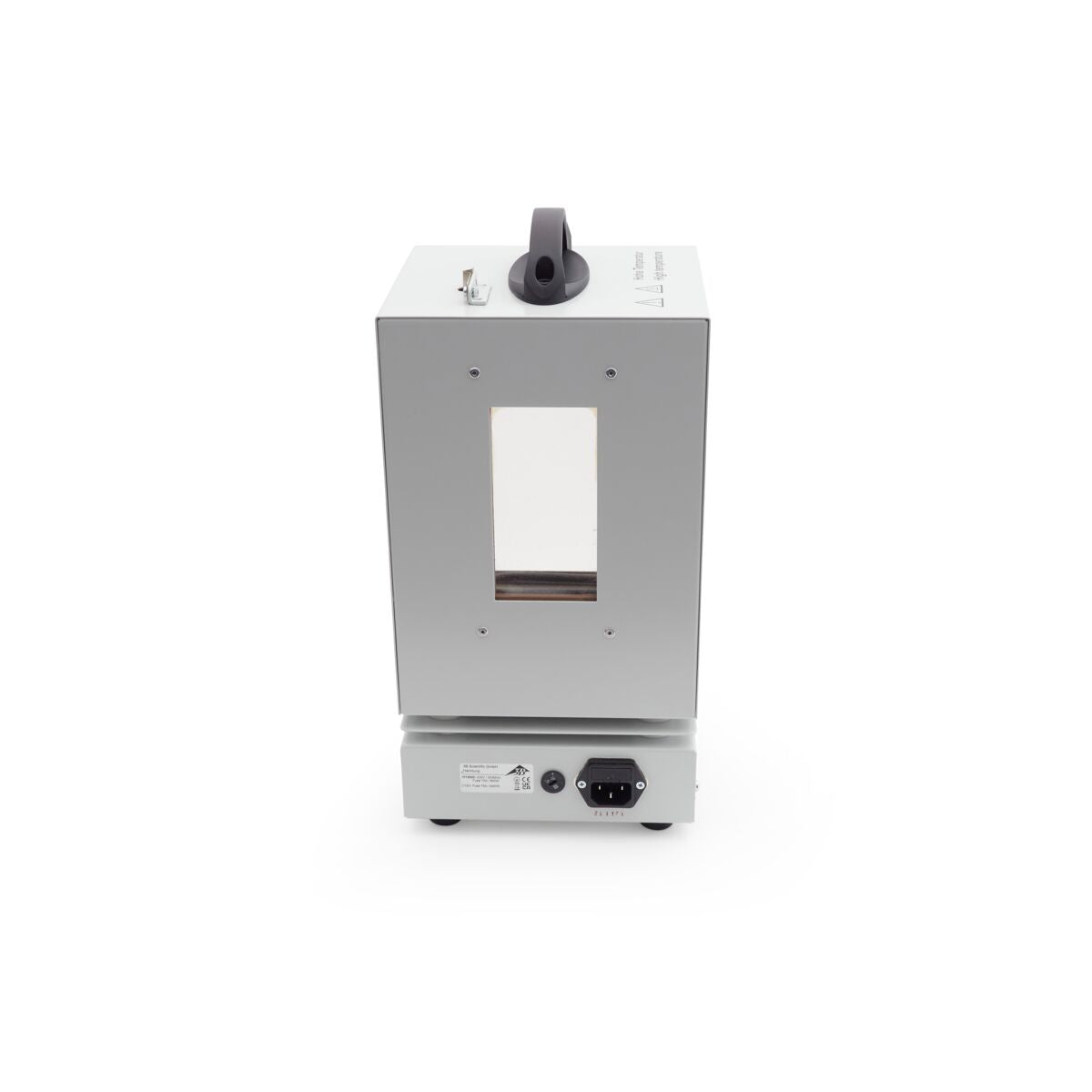

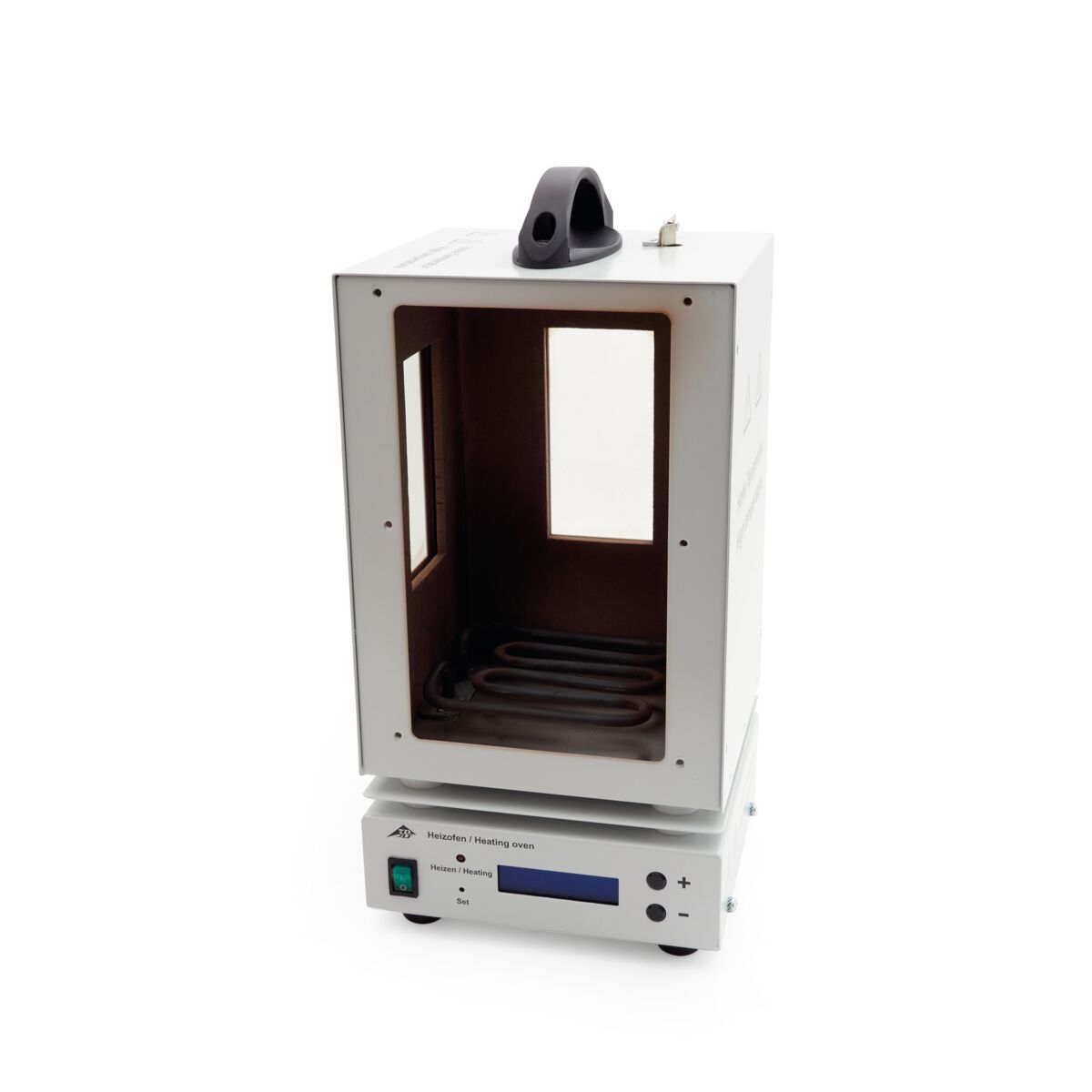

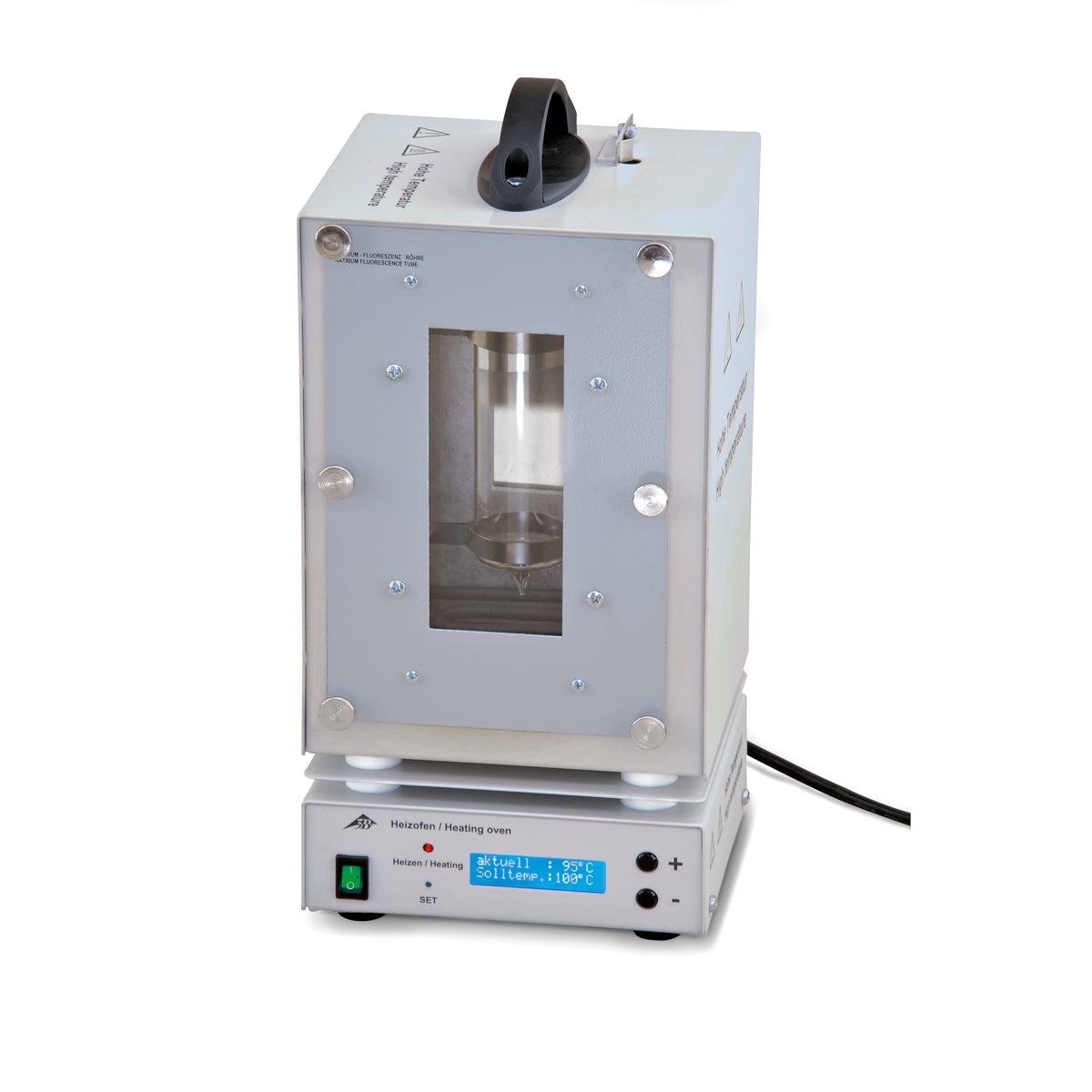

The heating chamber can be employed to conduct the Franck-Hertz experiment or the sodium resonance fluorescence experiment in safety. It consists of a powder-coated sheet steel casing with two viewing windows. The front plate is attached via six knurled screws. The chamber is heated via a tubular heating element in the chamber floor. Temperature measurement and regulation is carried via an integrated micro-controller and a PT 100 thermocouple. A digital temperature display allows you to read off the temperature set-point and the actual temperature value. The “SET” button can be used to toggle the display between ° Celsius and ° Fahrenheit. The “+/-” keys allow you to set the set-point for the temperature in steps of 1 K. There is an opening at the top with a spring clip for holding a thermometer and a thermally insulated carrying handle. The heating chamber can accommodate both the Franck-Hertz tube with Hg filling and the sodium fluorescence tube on furnace wall.
The heating chamber can be employed to conduct the Franck-Hertz experiment or the sodium resonance fluorescence experiment in safety. It consists of a powder-coated sheet steel casing with two viewing windows. The front plate is attached via six knurled screws. The chamber is heated via a tubular heating element in the chamber floor. Temperature measurement and regulation is carried via an integrated micro-controller and a PT 100 thermocouple. A digital temperature display allows you to read off the temperature set-point and the actual temperature value. The “SET” button can be used to toggle the display between ° Celsius and ° Fahrenheit. The “+/-” keys allow you to set the set-point for the temperature in steps of 1 K. There is an opening at the top with a spring clip for holding a thermometer and a thermally insulated carrying handle. The heating chamber can accommodate both the Franck-Hertz tube with Hg filling and the sodium fluorescence tube on furnace wall.
Specification
Specification
| Weight | 7.83 lb |
| Product Area | Physics |
| Dimensions of front opening: | 230 mm x 160 mm approx. mm x mm |
| Heating power: | 400 W |
| Maximum temperature: | 250°C |
| Temperature constancy: | ±1°C approx. degrees Celsius |
| Dimensions: | 335 mm x 180 mm x 165 mm approx. mm x mm x mm |
| Weight: | 5.6 kg approx. |
