Description

Self-quenching halogen pulse ionisation chamber for detecting alpha, beta, gamma and x-ray radiation. In metal housing with mica window, removable mounting clamp with shaft. Long plateau length.

Specification

Weight	0.26 lb
Product Area	Physics
Filling:	Neon/argon mixture, halogen as quenching agent
Cathode dimensions:	approx. 39x14 mm²
Window:	mica, 9 mm dia.
Mass per unit area:	1.5 – 2.0 mg/cm²
Plateau length:	400 V – 600 V
Operating voltage:	400 – 600 V (recommended: 500 V)
Relative plateau slope:	0.04 %/V
Dead time:	90 µs
Limiting resistor:	10 MΩ, integrated in holder
Shaft:	approx. 100 mm x 10 mm dia.
Dimensions counter tube:	approx. 85 mm x 25 mm dia.
Weight:	approx. 160 g

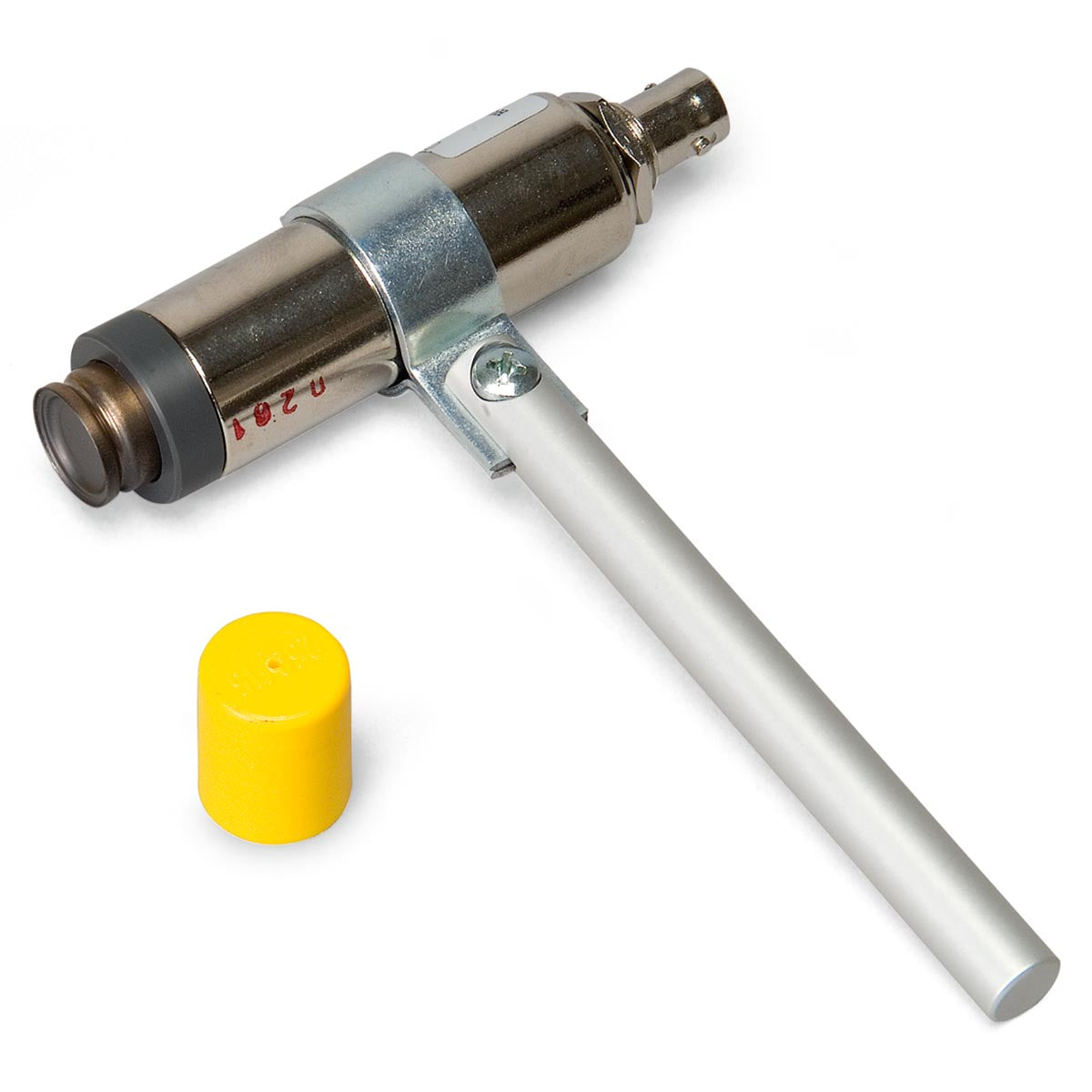

Geiger-Müller Counter Tube

Name: Geiger-Müller Counter Tube
Brand: 3B Scientific
SKU: 3BS1001035
Price: 1044.80 USD
Availability: InStock

Brand: 3B Scientific

Categories: Science Kits

Item Number: 1008710

$1,044.80

$1,044.80 ~~$0.00~~

Shipping calculated at checkout.

Description

Self-quenching halogen pulse ionisation chamber for detecting alpha, beta, gamma and x-ray radiation. In metal housing with mica window, removable mounting clamp with shaft. Long plateau length.

Specification

Weight	0.26 lb
Product Area	Physics
Filling:	Neon/argon mixture, halogen as quenching agent
Cathode dimensions:	approx. 39x14 mm²
Window:	mica, 9 mm dia.
Mass per unit area:	1.5 – 2.0 mg/cm²
Plateau length:	400 V – 600 V
Operating voltage:	400 – 600 V (recommended: 500 V)
Relative plateau slope:	0.04 %/V
Dead time:	90 µs
Limiting resistor:	10 MΩ, integrated in holder
Shaft:	approx. 100 mm x 10 mm dia.
Dimensions counter tube:	approx. 85 mm x 25 mm dia.
Weight:	approx. 160 g
