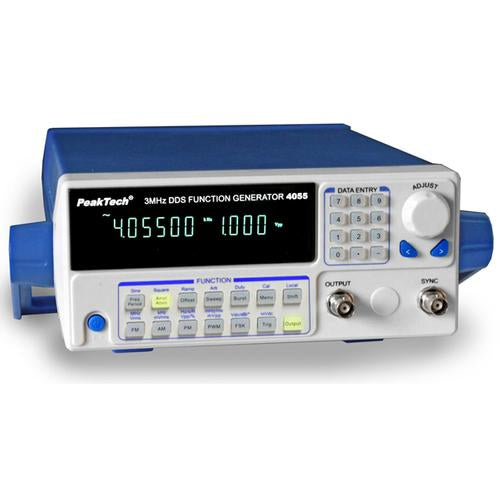

Verstatile function generator designed with direct digital synthesis technology can be used as a normal signal generator, pulse generator and a sweep generator. Includes integrated 10 W power amplifier.
· HF accuracy: up to factor 10-5
· 10 µHz frequency resolution across the entire frequency band
· Direct, digital setting and limiting for the entire range
· Start and end sweep frequency can be set as desired
· Frequency or periods, virtual amplitude value or peak-to-peak can be selected
· Keypad operation: direct digital or continuous adjustment
· USB device
Including mains power cable, USB interface cable, software for Windows 2000/XP/VISTA/7/8/10, BNC cable and instruction manual.

Frequency range: 10 µHz … 3 MHz
Output signal: 16 signals such as sinusoidal, square-wave, triangular, etc.
Frequency resolution: 10 µHz
Harmonic distortion: - 40 dBc
Total distortion: < 1 %
Square-wave signal: < 50 ns rise/fall time
Pulse duty factor: 1 – 99 %
Amplitude range: 0 – 20 Vpp
Amplitude offset: ± 10 V
Amplitude resolution: 5 mVpp
Modulation: FM, AM, PM, PWM, FSK
Operating voltage: 100 ~ 240 V AC, 45 ~ 65 Hz
Dimensions: 255 x 100 x 310 mm approx.
Weight: 2 kg approx.
