Product Information: ..

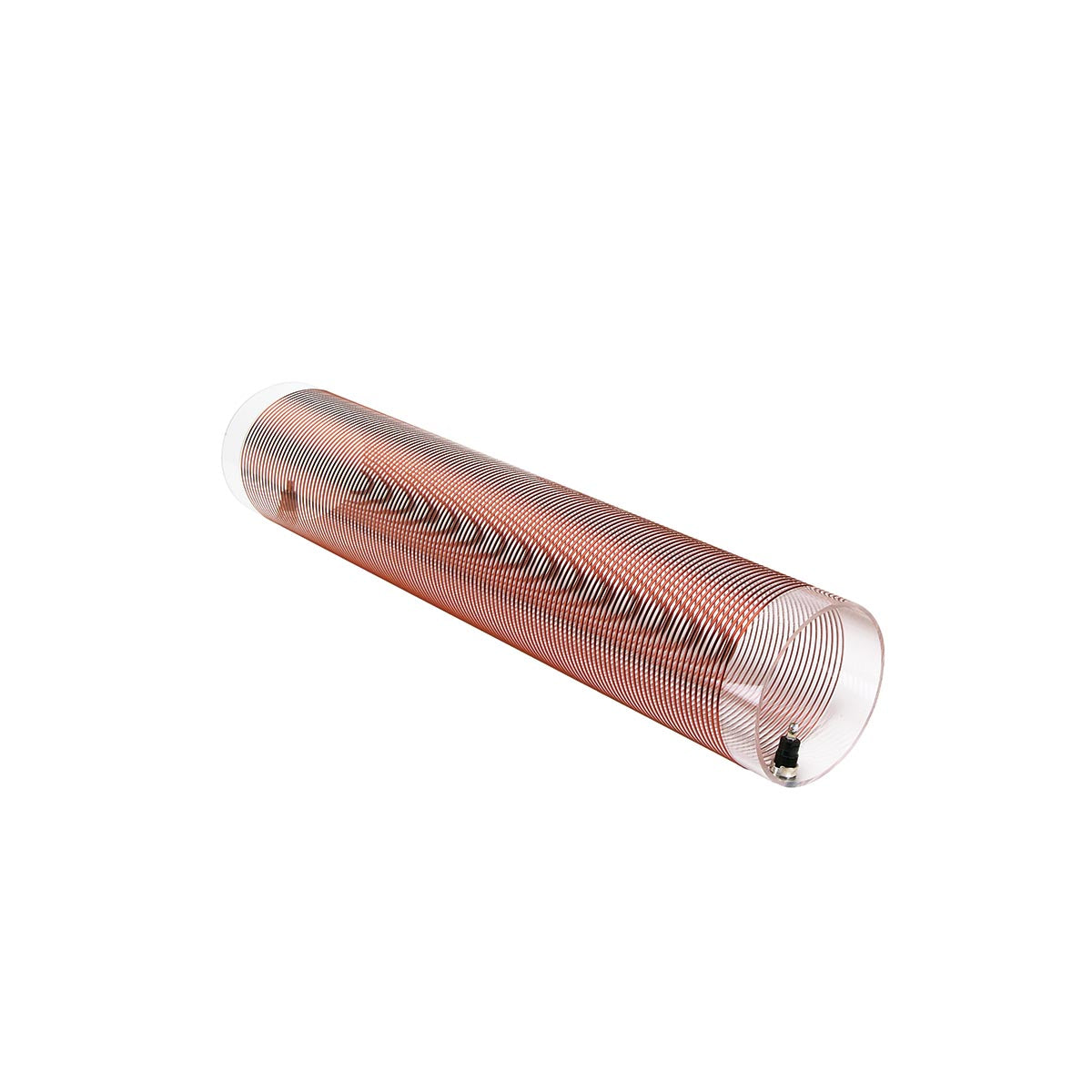

Field coil for investigating the magnetic flux density of cylindrical coils as a function of the turn density. The flux density is measured using a teslameter with Hall sensor (e.g. item no. 1024236). The coil is wound onto an acrylic cylinder.

Specifications: ..
Coil material: Cu wire, 1.25 mm, Isoflex
Coil diameter: 100 mm
Number of turns: 120
Coil length: 490 mm
Current: max. 10 A, for short periods 20 A
Connection: via 4-mm-safety sockets
