Experimentation Topics: ..
• Ohm’s law
• Parallel resistor circuits
• Series resistor circuits
• Unknown resistance
• Potentiometers
• Voltage dividers with no load
• Voltage dividers with load

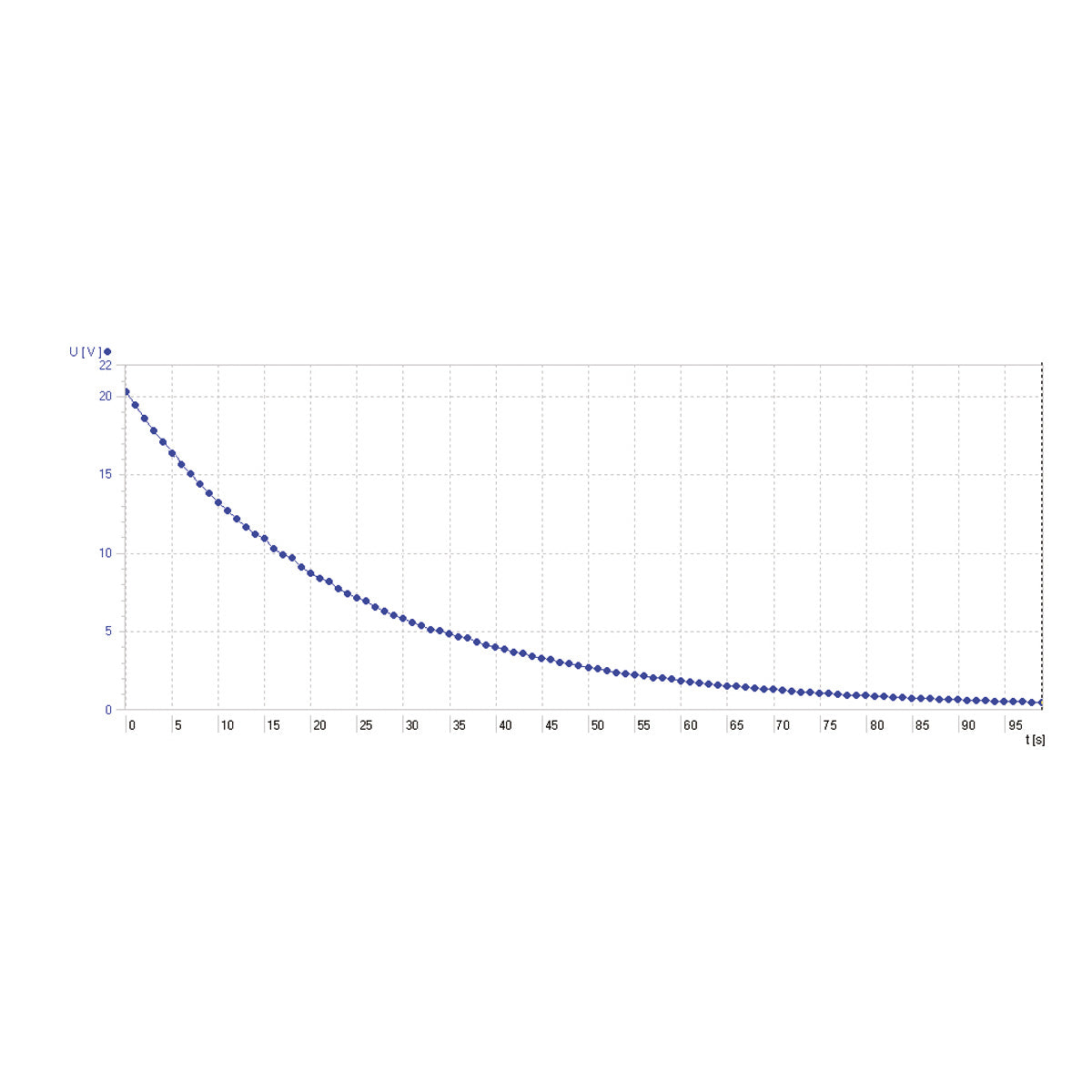

• Discharge of a capacitor
• Bridge rectifiers
• Half-wave rectifiers
• Characteristic curve for a lamp
• Characteristic curve for an LED
• Characteristic curve for a silicon diode
• Characteristic curve for a zener diode
• LC parallel resonant circuit
• LC series resonant circuit
• RLC series resonant circuit

Product Information: ..

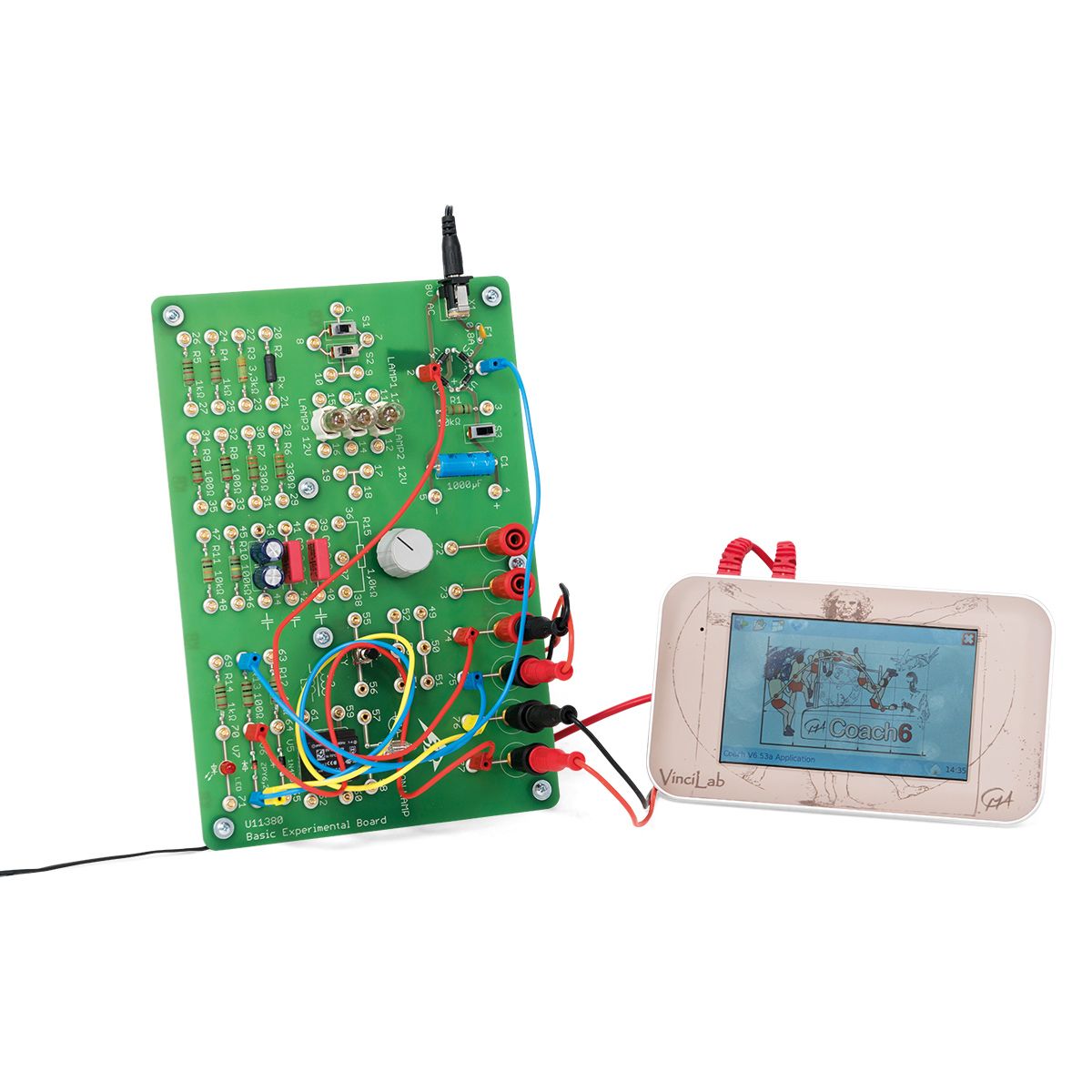

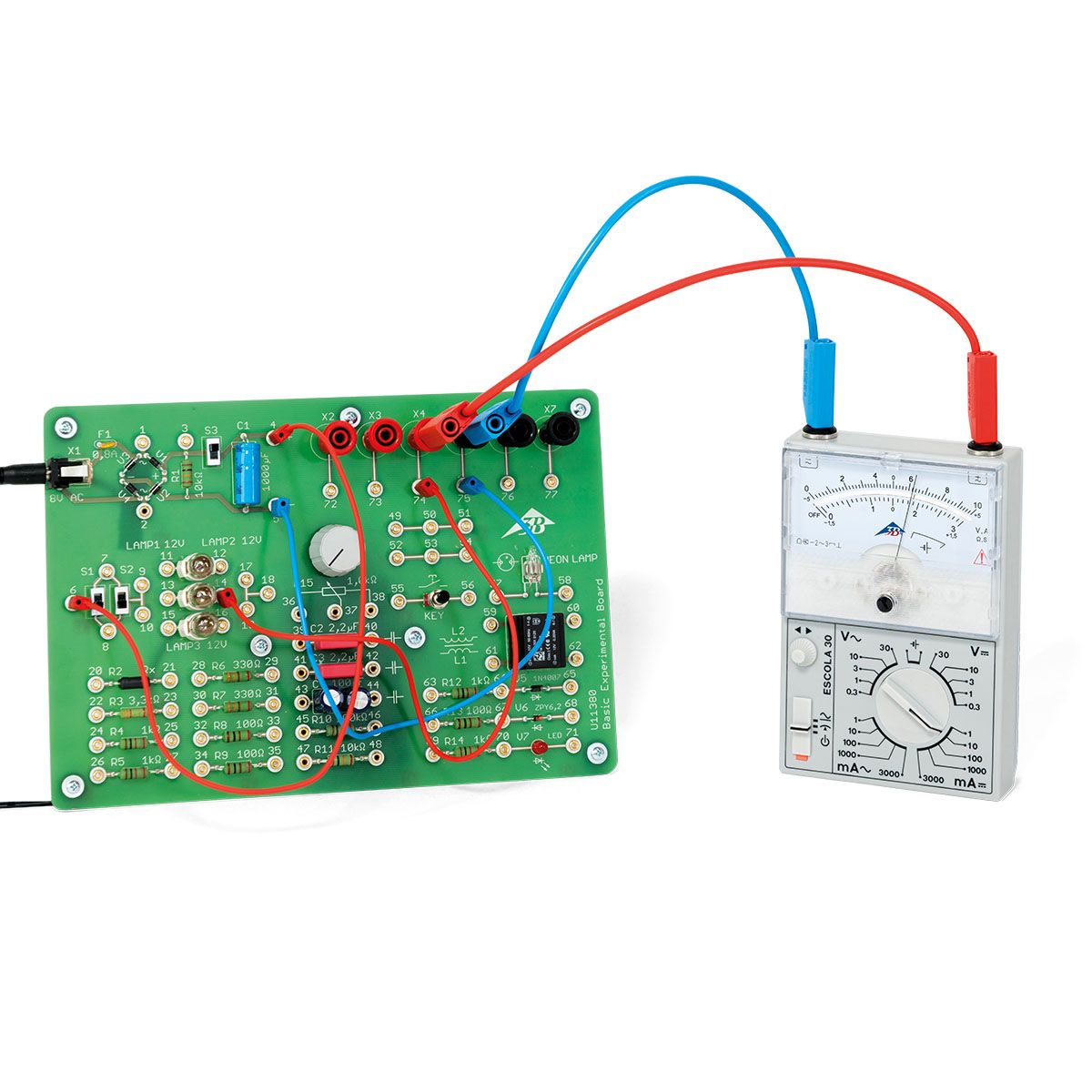

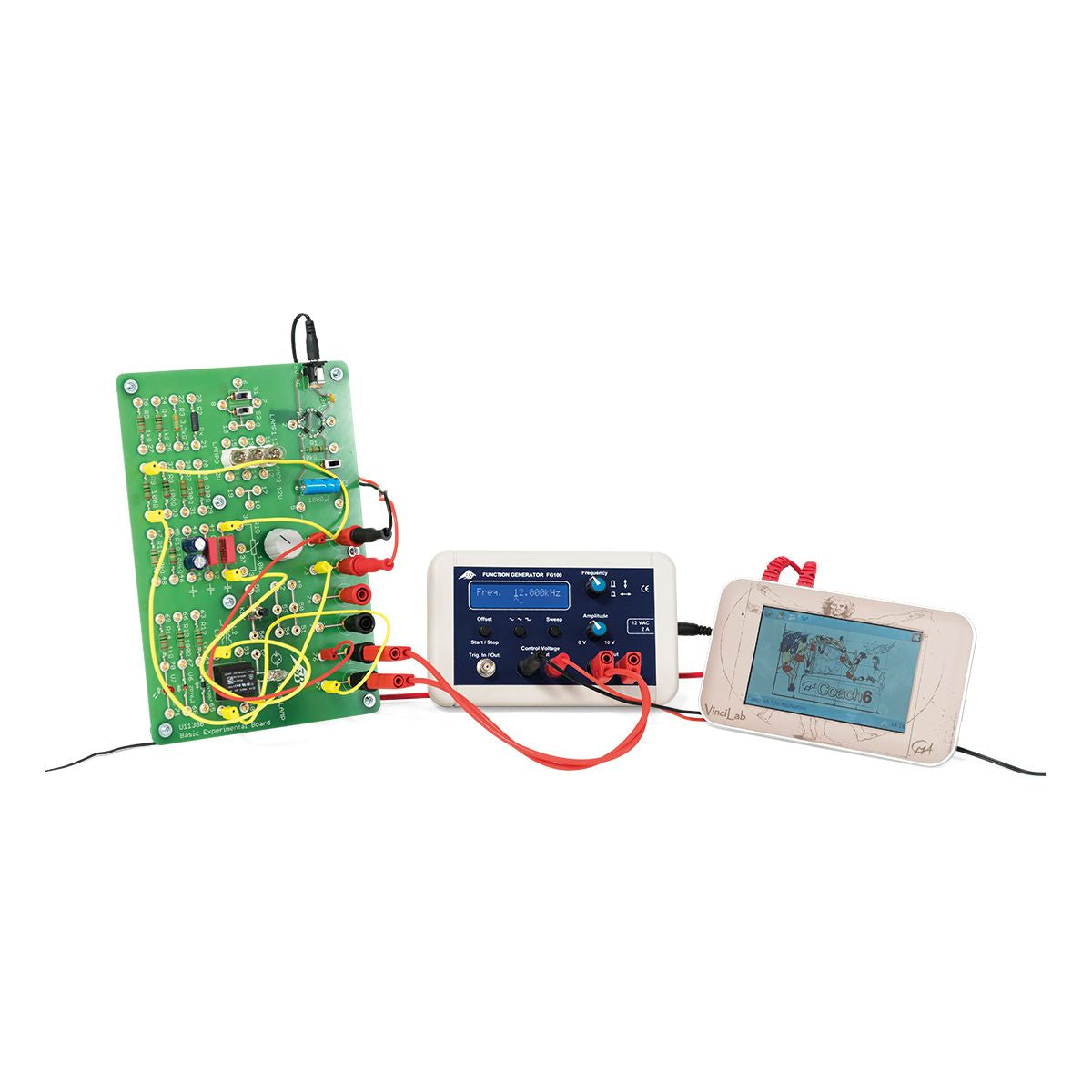

Experiment board with basic circuits for electricity and electronics: circuit components, Ohm’s law, Kirchhoff’s laws, rheostat and potentiometer circuits, two way switching, charging and discharging curves of a capacitor, inductive effects in DC and AC circuits. Simple semiconductor circuits for determining diode characteristics, rectifier circuits, filter factors. The components can be interconnected via 2 mm sockets using jumpers and experiment leads. Six 2 mm /4 mm safety socket adapters are provided for connecting 4 mm experiment leads.

Safety transformer conforming to EN 61558-2-6.
Safe isolation between power supply and output circuits.

Specifications: ..
Dimensions: approx. 233 mm x 160 mm

Scope of Delivery: ..
10 Leads (5 red and 5 blue) with 2 mm plugs, 20 cm long
10 Jumpers
1 Plug-in power supply 8 V AC/500 mA

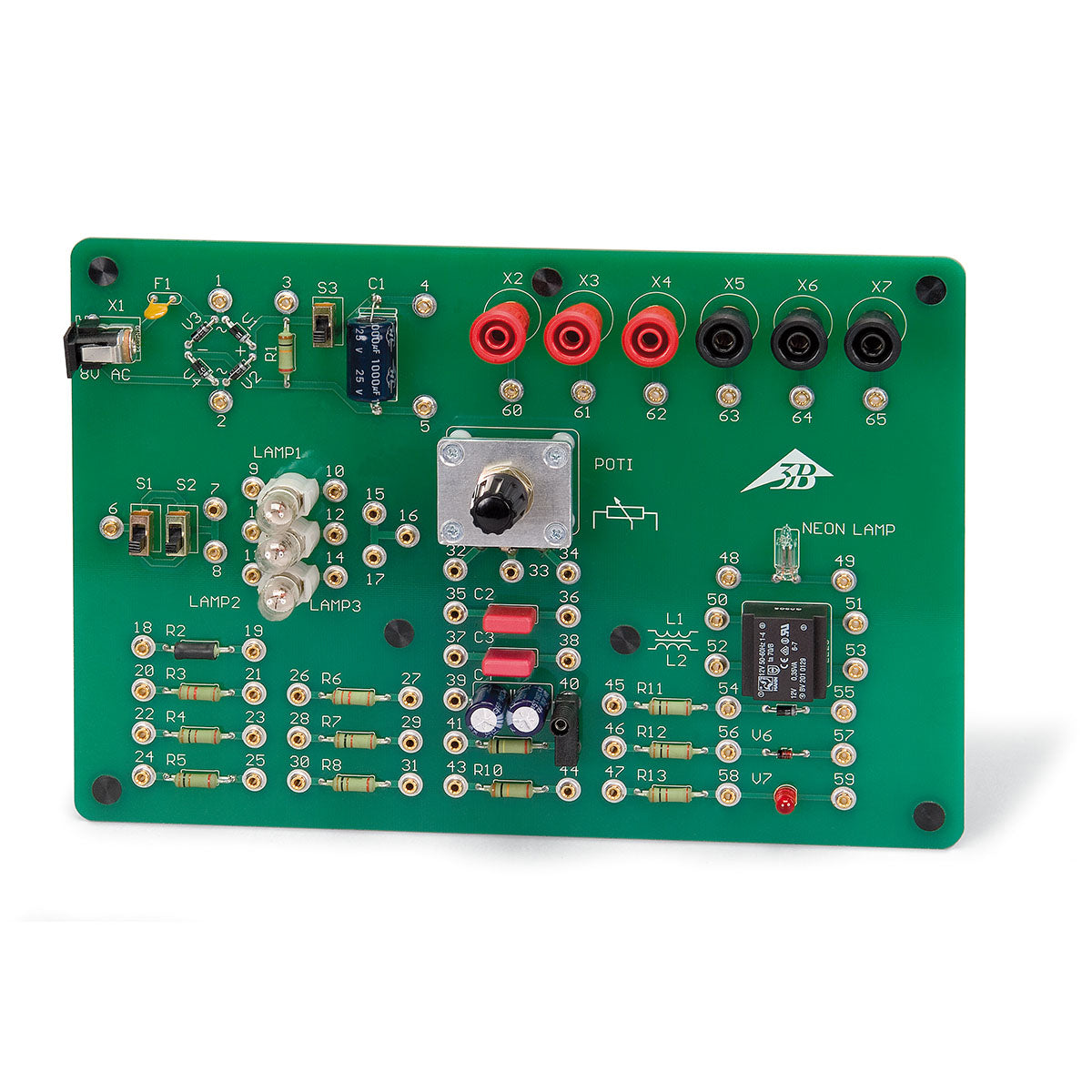

1 board with the following electronic components:
13 0.5 W resistors ranging from 100 Ω – 100 kΩ
1 Potentiometer, 1 kΩ
3 Filament lamps, 12 V
2 Slide switches
5 Capacitors (2x 2.2 μF, 1x 100 μF [bipolar], 1x 1000 μF)
5 1 A rectifier diodes
1 Zener diode
1 Red light emitting diode
1 Neon fluorescent light
1 Transformer, 12 V
