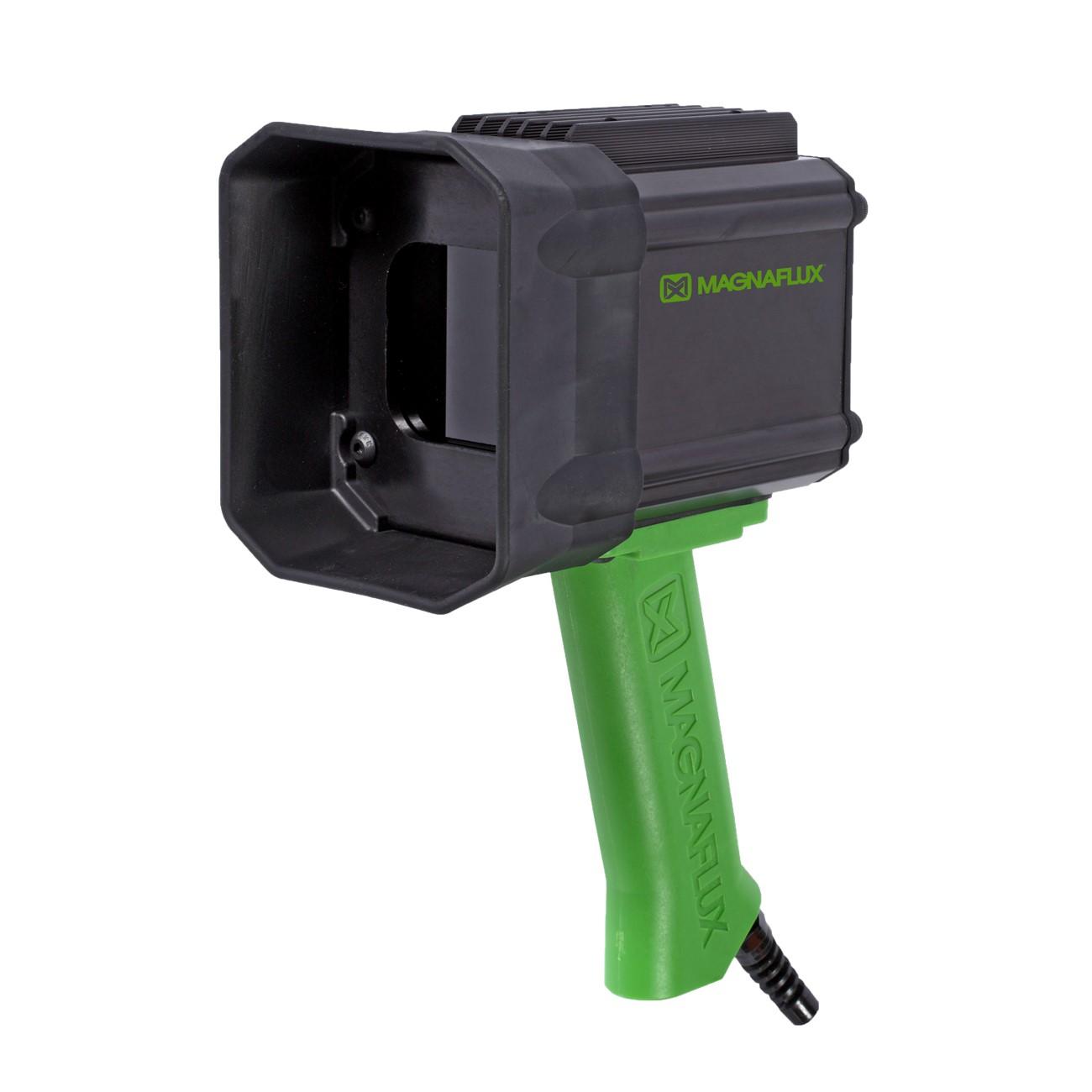

The EV6000 LED UV lamp is a portable, hand-held UV lamp for fluorescent non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections.

The EV6000 features a uniform beam with no hot-spots and a 9 in / 23 cm wide beam, 33% wider than the next widest hand-held UV lamp in the industry.

Custom-designed optics provide intense and even UV-A coverage of UV-A to easily identify indications, and an integrated filter ensures minimal visible light emission to improve inspection reliability.

The EV6000 is certified to NDT standards for LED UV lamps and certified for Aerospace Prime and OEM specifications for emission spectrum and beam profile. Each unit is shipped with a manufacturer’s certificate of conformance which meets or exceeds all current specifications for use with fluorescent liquid penetrant and magnetic particle testing.

NOTE: Handheld UV lamps were temporarily manufactured with black handles from approximately July 2022 to mid-June 2023.

KEY FEATURES

• 5,000 μW/cm2 maximum irradiance at 15 in / 38 cm
• 9 in / 23 cm wide, uniform circular beam
• Light weight at only 2 lb / 0.9 kg
• No hot-spots in the beam profile
• IP65 rated, rugged, durable design
• No internal fan
• Low energy consumption
• Aerospace prime and OEM certified
• Improved operator and environmental safety
• Certified to ASTM / RRE
