Electrometer (115 V, 50/60 Hz)
Electrometer (115 V, 50/60 Hz)
Regular price
$545.60
Sale price
$545.60
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description
Product Information: ..

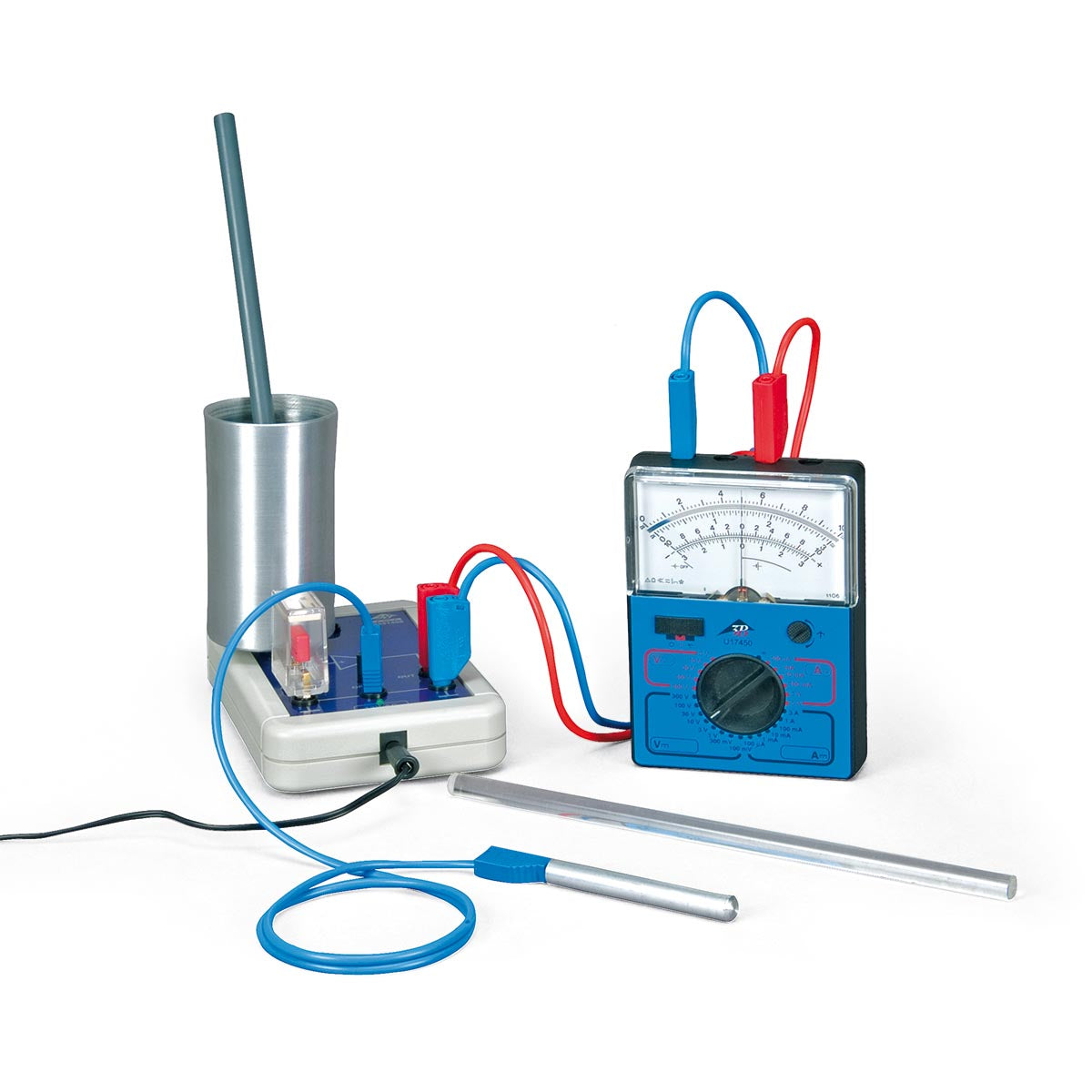

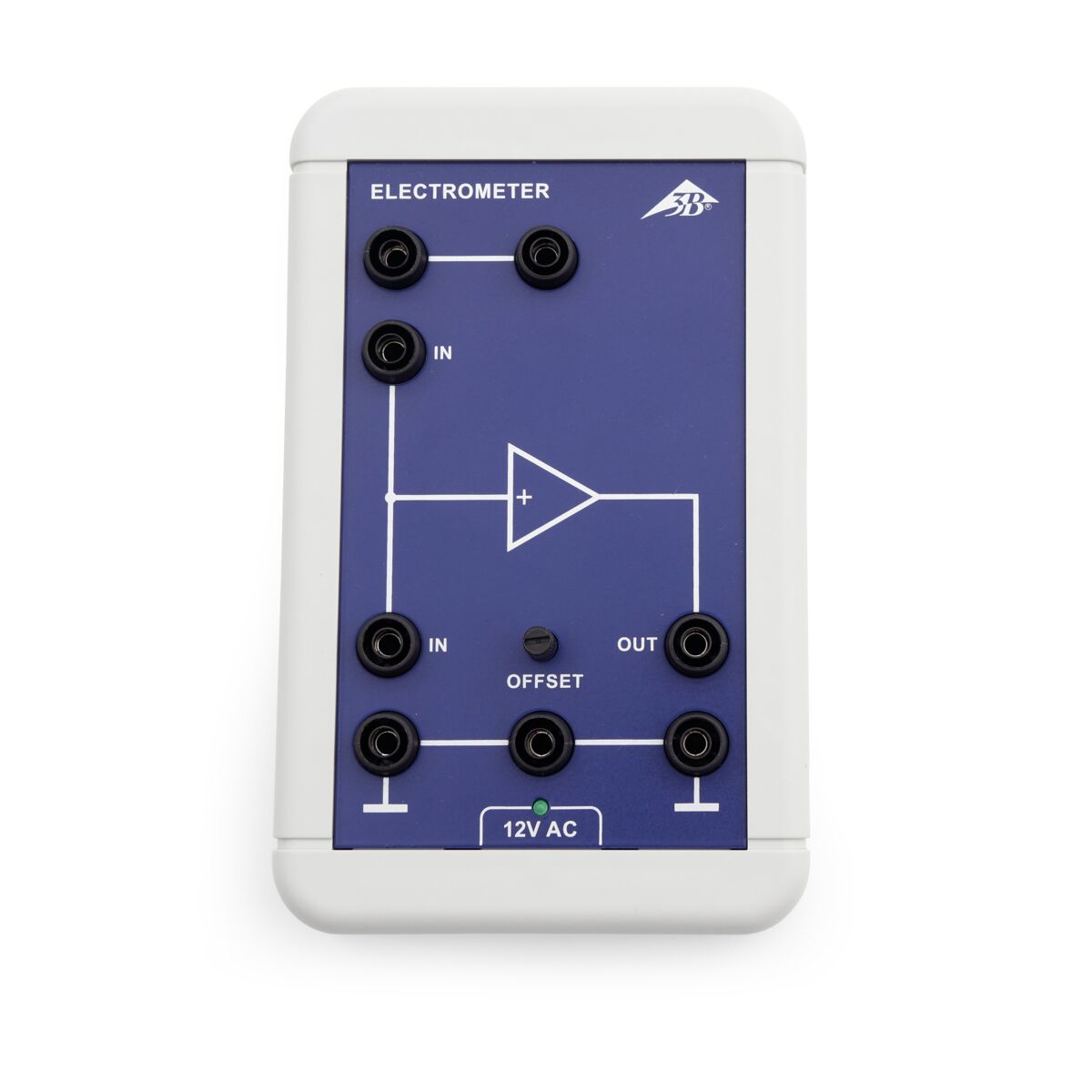

Impedance converter with high-resistance input for measuring extremely small charges and currents. The input signal is converted into a proportional voltage, which can then be measured with an external voltmeter. During the measurement the potentials of the electrometer and the experimenter must be matched by using a metal rod connected to earth.

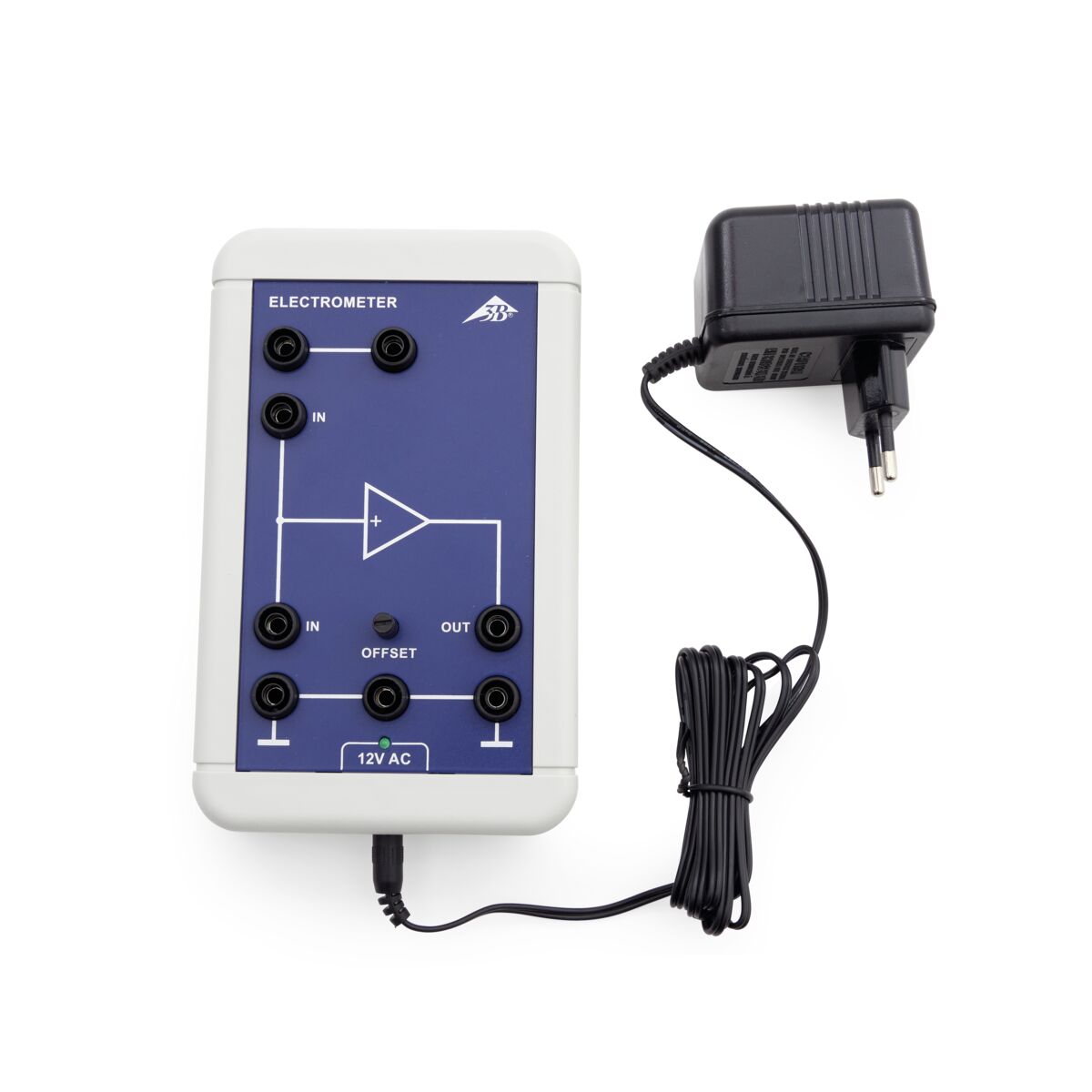

Includes a 12-V AC plug-in power supply.
Please check the recommended and required tabs for additional supplies.
Impedance converter with high-resistance input for measuring extremely small charges and currents. The input signal is converted into a proportional voltage, which can then be measured with an external voltmeter. During the measurement the potentials of the electrometer and the experimenter must be matched by using a metal rod connected to earth.
Includes a 12-V AC plug-in power supply.
Please check the recommended and required tabs for additional supplies.
Specification
Specification
| Weight | 1.28 lb |
| Dimensions | 43.3 x 66.9 x 11.8 in |
| Product Area | Physics |
| Electrometer gain factor: | 1 |
| Input resistance: | > 1012 Ω |
| Output resistance: | < 1 kΩ |
| Input current: | < 10 pA |
| Input capacitance: | < 50 pF |
| Max. output voltage: | ± 8 V |
| Resistance to excess voltage: | 1 kV (from low-resistance sources), 10 kV (from high-resistance sources) |
| Dimensions: | 110 mm x 170 mm x 30 mm approx. |
| Mass: | 1 kg approx. |
