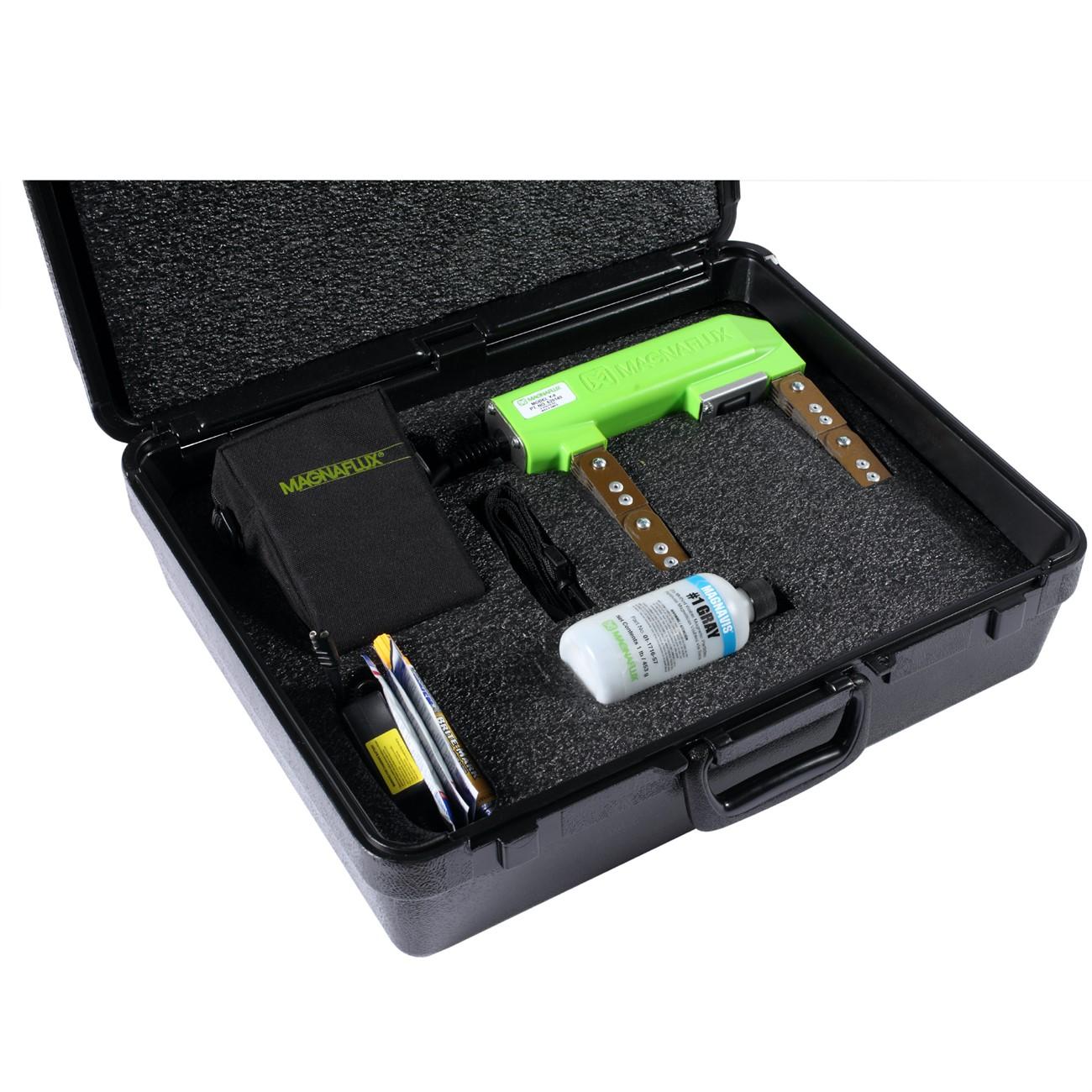

The Y-8 is a battery-powered, DC electromagnetic yoke designed to stand up to the most rugged applications. True portability for magnetic particle inspection in the field and remote locations is achieved through a compact battery pack which provides a full 8-hour shift of inspection power. Featuring sealed chemical-resistant construction and articulating legs to contour to any part shape, the Y-8 MV Kit comes with a Y-8 yoke, universal-voltage battery charger, global plug adapters, #1 Gray magnetic powder, a paint marker and hand cleaner towels in a convenient carrying case.

KEY FEATURES

• Sealed, durable construction
• Chemical and abrasion resistant
• True portability with compact battery pack
• Exceeds ASTM lifting specifications
• Individual serial number for each yoke
• Convenient carrying case
• Great for job sights and field inspections
• Has everything needed for non-fluorescent / colored mag particle testing

Applications

Defect location:

Subsurface (and some surface)

Ideal for:

• Field testing
• In-service inspections
• Demanding environments
• Remote sites

Defect examples:

• Inclusions
• Seams
• Tears
• Laps
• Welding slag
• Grinding cracks
• Quenching cracks

Compliance

• ASME BPVC
• ASTM E709
• ASTM E1444
• ASTM E3024
• ISO 9934-3
