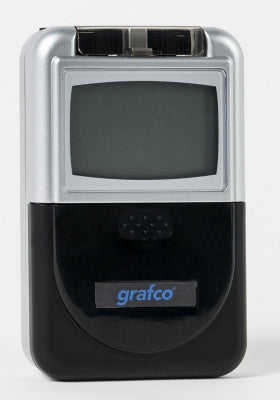

Digital T.E.N.S SD LCD Program, Graham-Field
Digital T.E.N.S SD LCD Program, Graham-Field
Regular price
$72.00
Sale price
$72.00
Regular price
$0.00
Shipping calculated at checkout.
Description
Description
T.E.N.S. (Transcutaneous Electrical Nerve Stimulation) is indicated under a physician's prescription for the symptomatic relief and management of chronic (long-term) pain and the treatment of post-operative or post-traumatic pain.
Standard Features:
Dual channels
LCD indicating operation modes and output
Three modes: Standard, Burst, Modulation
Includes: TENS unit, soft carrying case, instructions and accessories (four electrodes and lead wires)
Also required (not included): One 9-Volt alkaline battery
Federal Law (USA) restricts this device to sale by or on the order of a physician.
Standard Features:
Dual channels
LCD indicating operation modes and output
Three modes: Standard, Burst, Modulation
Includes: TENS unit, soft carrying case, instructions and accessories (four electrodes and lead wires)
Also required (not included): One 9-Volt alkaline battery
Federal Law (USA) restricts this device to sale by or on the order of a physician.
Specification
Specification
| Category | Medical, Surgical and Physician |
| Subcategory | Pain Management |
| Family Name | Pain Management |
| Unit of Measure | 1EA |
Pulse Rate: 1 ? 150 Hz adjustable,
45 adjustable frequencies
Pulse Width: 30 ~ 300 ?s adjustable
Power Source: Operated by 9v battery
Channel: Dual, isolated
Amplitude: Adjustable 0 ? 80 mA
500 ohm load each channel
Output Voltage: Adjustable, 0 ? 40v
Wave Form: Asymmetrical bi-phasic
rectangular pulse
Timer: 1 ? 60 minutes auto-off
Stimulation Mode: Burst: PW adjustable
Constant: PR/PW adjustable
3 Modulation Capacities:
M: PR/PW modulation
A(SD1): PR/PW modulation
S(SD2): PR/PW modulation
Treatment Memory Function: Memorize the last set of operation records
Reset Memory Function: Yes
Compliance Timer: Total record time is 999 minutes
Reset Compliance Timer: Yes
Low Battery: Yes
Function Control Cover: Yes
Intensity Control Cover: N/A
Belt Clip: Metal belt clip for strength (Rotates 360?)
Weight: 90 grams (without battery)
Size: 95 mm x 60 mm x 25mm
Display: Output indicator, Low batt.
Output amplitude (mA)
PW, PR, Timer, Compliance Timer,
Stimulation Modes
45 adjustable frequencies
Pulse Width: 30 ~ 300 ?s adjustable
Power Source: Operated by 9v battery
Channel: Dual, isolated
Amplitude: Adjustable 0 ? 80 mA
500 ohm load each channel
Output Voltage: Adjustable, 0 ? 40v
Wave Form: Asymmetrical bi-phasic
rectangular pulse
Timer: 1 ? 60 minutes auto-off
Stimulation Mode: Burst: PW adjustable
Constant: PR/PW adjustable
3 Modulation Capacities:
M: PR/PW modulation
A(SD1): PR/PW modulation
S(SD2): PR/PW modulation
Treatment Memory Function: Memorize the last set of operation records
Reset Memory Function: Yes
Compliance Timer: Total record time is 999 minutes
Reset Compliance Timer: Yes
Low Battery: Yes
Function Control Cover: Yes
Intensity Control Cover: N/A
Belt Clip: Metal belt clip for strength (Rotates 360?)
Weight: 90 grams (without battery)
Size: 95 mm x 60 mm x 25mm
Display: Output indicator, Low batt.
Output amplitude (mA)
PW, PR, Timer, Compliance Timer,
Stimulation Modes
