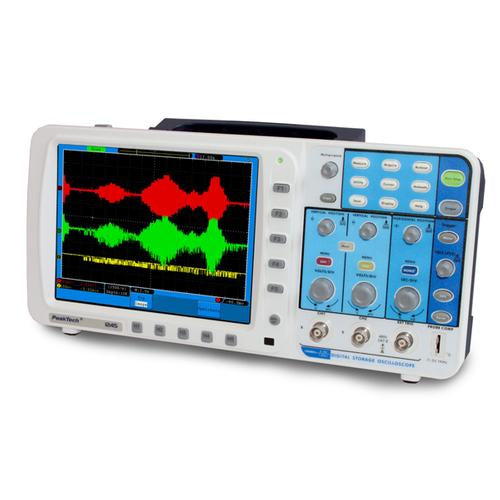

Latest generation, dual-channel digital storage oscilloscope for many applications with the following features:
High-resolution colour display and back-lighting
Large internal data memory
VGA output for connecting external monitor
LAN connection for remote access via network
USB port for real-time data transmission or for reading internal memory
Autoset and autoscale functions for user-friendly operation
20 automatic measuring modes plus FFT function
PASS/FAIL function
Includes two probes, two BNC cables, USB connecting cable, and software CD for Windows 2000/XP/VISTA/7/8/10.

Channels: Two
Band width: 100 MHz
Sample rate: Dual CH 500 MS/s
Single CH 1 GS/s
Operating modes: CH1, CH2, XY
Input:
Input coupling: DC, AC, GND
Input impedance: 1 MΩ ±2% ll 10 pF ±5 pF
Input voltage: 0 – 400 V DC or ACpp
Vertical:
Deflection coefficient: 2 mV/div. – 10 V/div.
Precision: ± 3%
A/D converter: 8-bit resolution
Horizontal:
Time-base coefficient: 2 ns/div. – 100 s/div.
Sampling range: 0.5 S/s – 250 MS/s
Precision: 100 ppm
Measuring mode:
Automatic measurement: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, overshoot, pre-shoot, rise time, fall time, +width, -width, +duty, -duty, delay A-B (rising), delay A-B (falling), freq, period, FFT
Maths functions: +, -, *, /, FFT
Trigger:
Trigger type: Edge, Video, Pulse, Slope
Trigger modes: Auto, Normal, Single
Trigger detection: Sample, peak detect, average
Interfaces:
Memory size: 10000 measurements
Interface: USB 2.0, VGA, LAN
Power supply: 100 ~ 240 V AC RMS, 50/60 Hz
General data:
Display: TFT colour screen, 8 inches, 800 x 600 pixels, 65536 colours
Dimensions: 340x155x70 mm³ approx.
Weight: 1.8 kg approx.
