Digital Multimeter E
Digital Multimeter E
Regular price
$89.60
Sale price
$89.60
Regular price
$0.00
Shipping calculated at checkout.
Description
Description

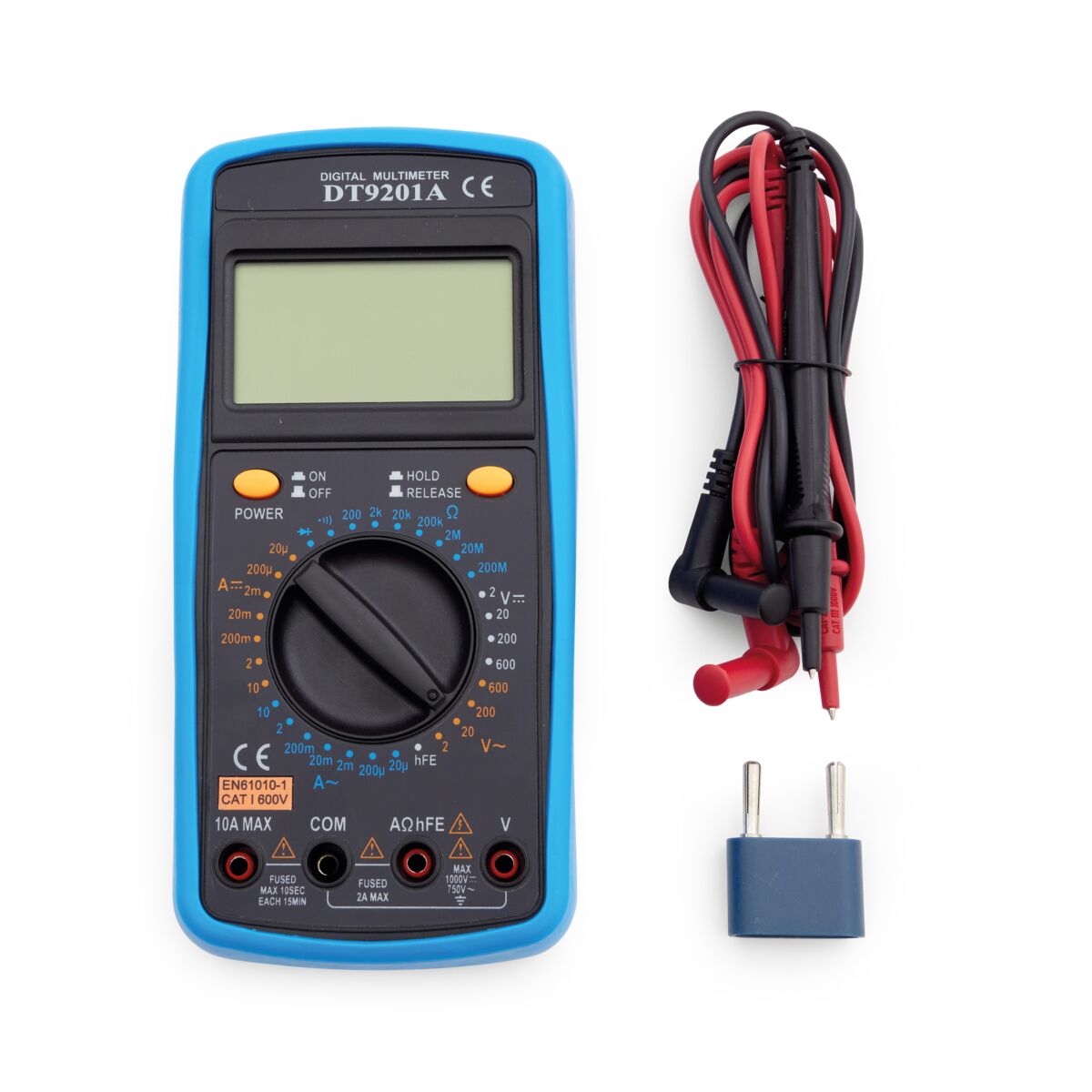

Compact 3½-digit multimeter for measuring voltage, current and resistance as well as for diode and hFE gain testing. All measurement ranges are selected by means of a rotary dial. All measurement ranges are protected against overload. Includes measuring leads and battery.
Specification
Specification
| Weight | 0.71 lb |
| Product Area | Physics |
| DC voltage | 2 V − 600 V, 4 ranges, ±0.8% ±5 digits |
| AC voltage | 2 V − 600 V, 4 ranges, ±1% ±5 digits |
| DC current | 20 μA − 10 A, 7 ranges, ±1.8% ±2 digits |
| AC current | 20 μA − 10 A, 7 ranges, ±2% ±3 digits |
| Resistance | 200 Ω − 200 MΩ, 7 ranges, ±1% ±4 digits |
| Display | 3½- display LCD, 24 mm, max. 1999 |
| Operating voltage | 9 V battery 6F22 |
| Fuse: | F1: F 2 A / 600 V |
| Dimensions | 90x190x35 mm3 approx. |
| Weight | 310 g approx. (with battery) |
