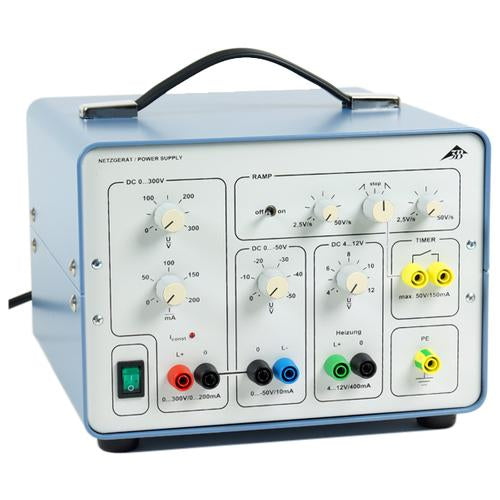

DC Power Supply, 0 – 300 V, max. 200 mA
DC Power Supply, 0 – 300 V, max. 200 mA
Regular price
$2,281.60
Sale price
$2,281.60
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description
Product Information: ..
Low voltage power supply to supply voltages for operating narrow electron beam tubes (1024633) or training oscilloscope (1000902). The DC voltages 0 − -50 V and 0 − +300 V have a common zero volt ground so that DC voltages of up to 350 V can be supplied.
In addition, a ramp generator is available for generating an adjustable, temporally linear rising or falling voltage. For this reason, experiments on the law of induction and the charging and discharging of capacitors can also be carried out.
Low voltage power supply to supply voltages for operating narrow electron beam tubes (1024633) or training oscilloscope (1000902). The DC voltages 0 − -50 V and 0 − +300 V have a common zero volt ground so that DC voltages of up to 350 V can be supplied.
In addition, a ramp generator is available for generating an adjustable, temporally linear rising or falling voltage. For this reason, experiments on the law of induction and the charging and discharging of capacitors can also be carried out.
Specification
Specification
| Weight | 9.27 lb |
| Product Area | Physics |
| Output 1:...v | voltage: 0 − 300 V DC, max. current: 200 mA |
| Output 2:... | voltage: 0 − -50 V DC, max. current: 10 mA |
| Output 3:... | voltage: 4 − 12 V DC, max. current: 400 mA |
| Ramp generator: | 2.5 − 50 V/s, linear rising or falling |
| Connections: | 4 mm safety sockets |
| Dimensions: | 240 mm x 230 mm x 170 mm approx. mm x mm x mm |
| Weight: | 3.7 kg approx. |
