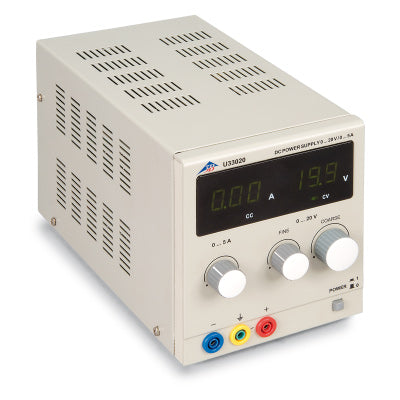

DC Power Supply, 0 – 20 V, 0 – 5 A
DC Power Supply, 0 – 20 V, 0 – 5 A
Regular price
$684.80
Sale price
$684.80
Regular price
$0.00
Shipping calculated at checkout.
Description
Description
Product Information: ..
The 0 – 20 V, 0 – 5 A DC power supply provides a DC voltage up to 20 V and a DC current up to 5 A.
The output voltage and output current are continuously variable. The unit can be used either as a constant voltage source with current limitation or as a constant current source with voltage limitation.
When the cv LED is illuminated it shows that the unit is operating as a constant voltage source, whereas the cc LED shows that it is operating as a constant current source.
The output is protected against short-circuiting.
Specification
Specification
| Weight | 11.90 lb |
| Dimensions | 13.8 x 7.9 x 8.7 in |
| Product Area | Physics |
| DC output: | 0 – 20 V; 0 – 5 A |
| Output power: | 100 W |
| Stability under full load: | ≤0.01% + 5 mV, ≤0.2% + 5 mA |
| Residual ripple: | ≤1 mV; 3 mA |
| Displays: | 2 x 3 digit LED |
| Terminals: | 4 mm safety sockets |
| Dimensions: | 130 mm x 150 mm x 300 mm approx. |
| Weight: | 4.7 kg approx. |
