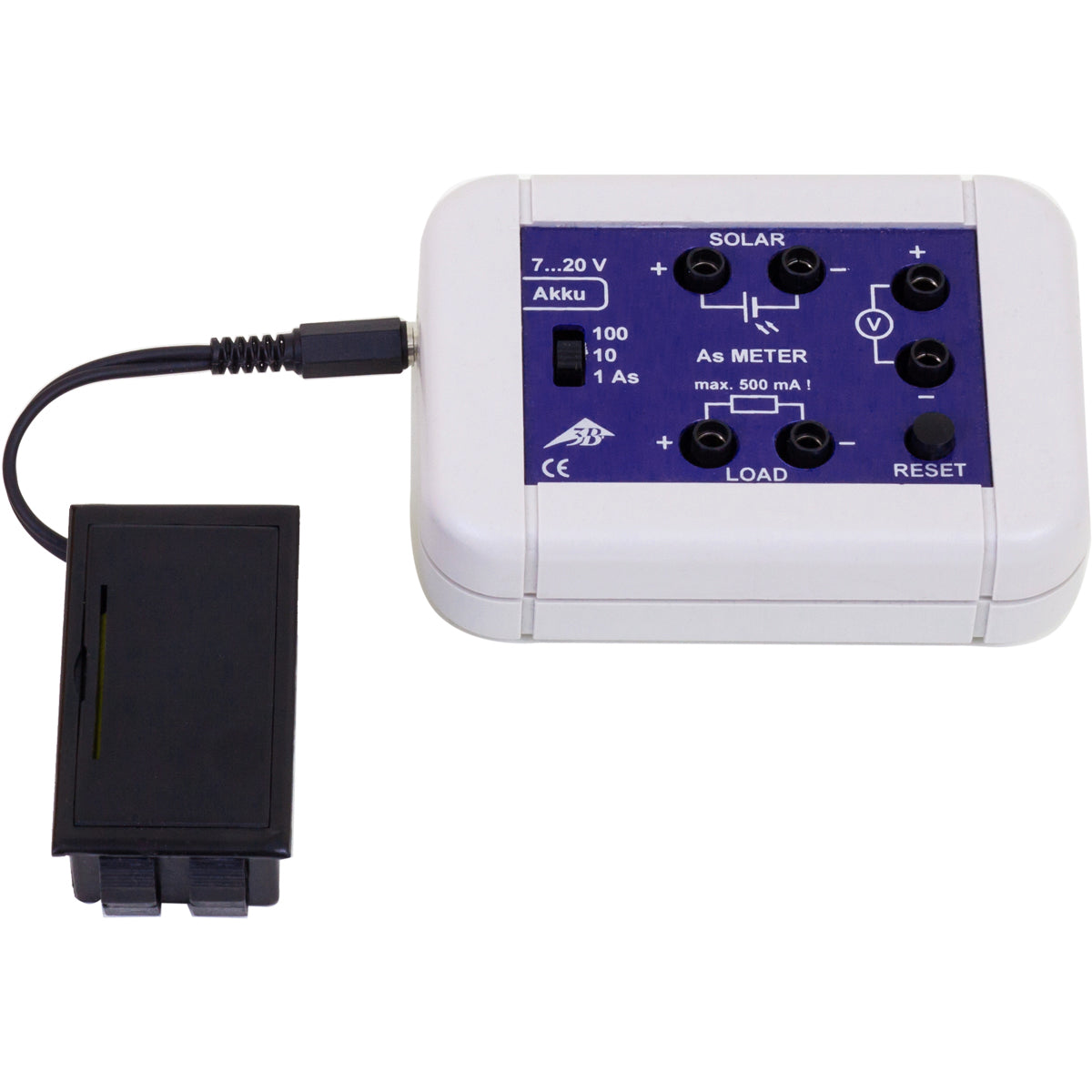

Coulombmeter with Rechargeable Battery
Coulombmeter with Rechargeable Battery
Regular price
$657.60
Sale price
$657.60
Regular price
$0.00
Shipping calculated at checkout.
Description
Description
Coulombmeter for measuring the flow of current when storing energy in a rechargeable battery. Charge or consumption can be displayed by means of a voltmeter. Depending on the measuring range selected, 1 V on the voltmeter corresponds to either 0.1, 1 or 10 ampere seconds (As).
Specification
Specification
| Weight | 0.57 lb |
| Product Area | Physics |
| Measuring ranges: | 1/10/100 As (max. measurable charge ±499 As) |
| Power supply: | 9 V rechargeable battery via DC co-axial power socket |
| Load current: | max. 500 mA |
| Charging current for battery: | max. 50 mA |
| External power source: | Solar panel or DC power supply (max. 12 V DC) with current limiting to 50 mA when there is no load on the coulombmeter |
| Connectors: | 4-mm safety sockets |
| Dimensions: | 105 x 75 x 35 mm3 approx. |
| Weight: | 200 including rechargeable battery and housing |
