General Information

---

Manufacturer:Brother Industries, Ltd
Manufacturer Part Number:DCP-L5510DN
Manufacturer Website Address:http://www.brother-usa.com
Brand Name:Brother
Product Model:DCP-L5510DN

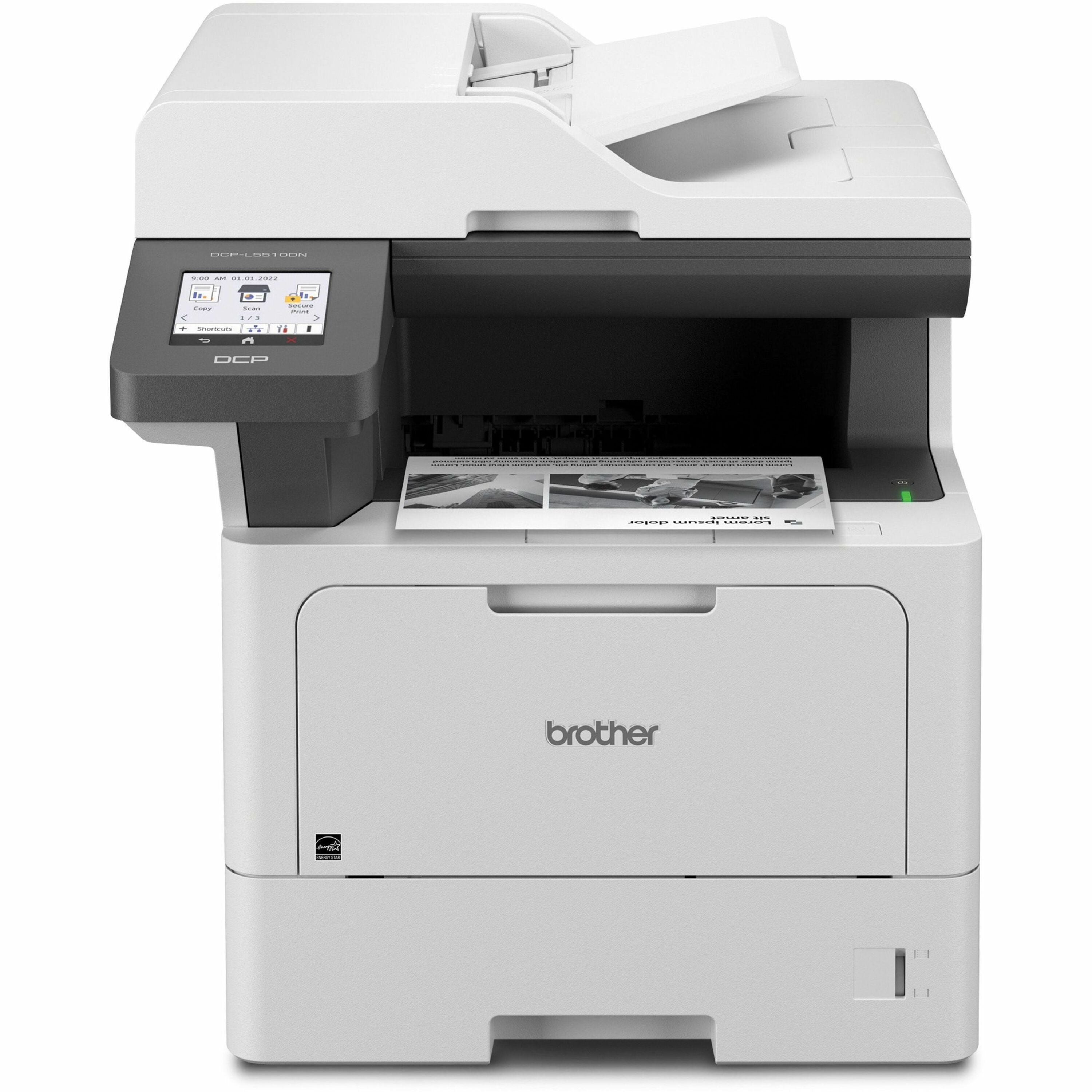

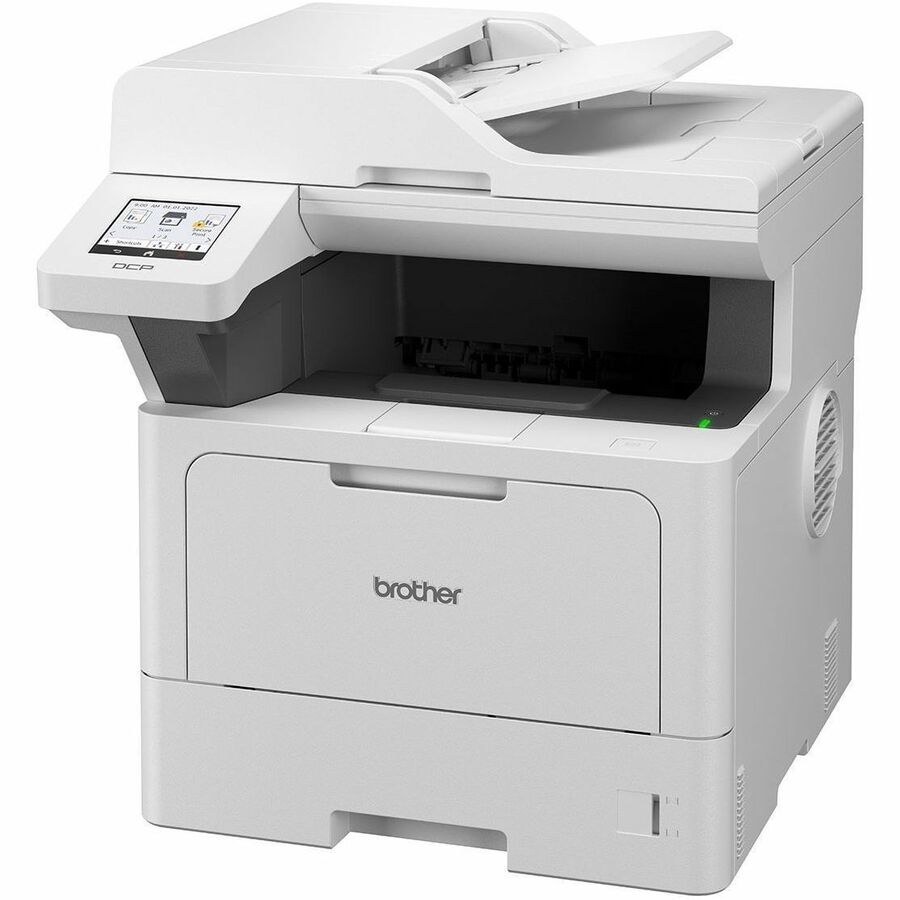

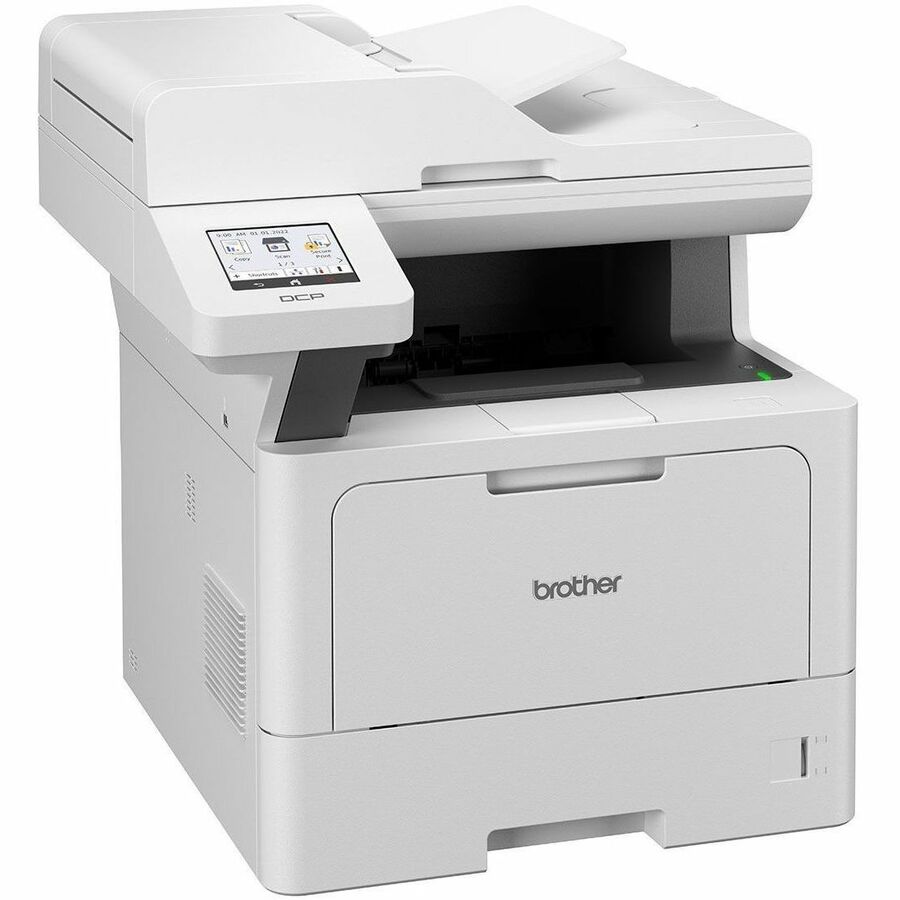

Product Name:Professional 3-in-1 Mono Laser Printer
Marketing Information:DCP-L5510DN Business Monochrome Laser All-in-One Printer is a great addition for busy offices and small workgroups that need cost-efficient printing, versatile paper handling, advanced security features and reliable output. It helps increase productivity with fast printing and copying speeds up to 48 ppm. Printer delivers cost-efficient printing with the Brother Genuine TN920XXL Super High-Yield Replacement Toner Cartridge (not included). Scan to popular destinations using the touch-screen display. Triple-layer security features help limit document and device access and protect against network intrusions. Quickly scan multipage documents to a wide variety of destinations using the 50-page auto document feeder. 250-sheet input tray adjusts for letter/legal-size papers. Gigabit Ethernet interface lets you seamlessly set up and share with multiple users on your wired network. Easily print from and scan to mobile devices. 3.5" touch screen provides customized shortcuts.
Packaged Quantity:1 Each
Product Type:Laser Multifunction Printer

Technical Information

---

Multifunction Devices:Copier/Printer/Scanner
Recommended Use:Plain Paper Print
First Print Speed:6.7 Second Monochrome
Print Color Capability:Monochrome
Maximum Mono Print Speed (ppm):48
Maximum Print Resolution (dpi):1200 x 1200
Print Technology:Laser
Duplex Printing:Automatic
Connectivity Technology:Wired
Noise Levels:54 dB

Processor & Chipset

---

Processor Speed:1.20 GHz

Interfaces/Ports

---

USB:Yes

Network & Communication

---

Ethernet:Yes
Ethernet Technology:Gigabit Ethernet

Display & Graphics

---

Screen Size:3.50"
Display Screen Type:LCD
Touchscreen:Yes

Scanner

---

Scanner Type:Flatbed
Scan Color:Color
Optical Resolution (dpi):600
Scan To:

• USB
• OCR
• E-mail
• Image
• File

Image Formats Supported:

• JPEG
• TIFF

Copier

---

Copier Type:Flatbed
Copy Color:Monochrome
Maximum Copy Resolution (dpi):1200 x 600

Media Types & Handling

---

Media Type:

• Letterhead
• Thick Paper
• Thin Paper
• Plain Paper
• Recycled Paper
• Color Paper
• Bond Paper
• Envelope
• Label

Media Size:

• A5 - 5.80" x 8.30"
• Folio - 8.27" x 13"
• Legal - 8.50" x 14"
• Letter - 8.50" x 11"
• A4 - 8.30" x 11.70"
• Executive - 10.50" x 7.25"
• A6 - 4.10" x 5.80"
• Custom Size
• 3" x 5"
• 8.50" x 14"

Media Handling:

• 1 x Automatic Document Feeder - 50 Sheet Capacity
• 1 x Input Tray - 250 Sheet Capacity
• 1 x Output Bin - 150 Sheet Capacity
• 1 x Multi Purpose Tray 100 Sheets

Standard Input Media Capacity:350 sheets
Standard Output Media Capacity:150 sheets

Fonts & Emulation

---

Language Emulation:

• PCL 6
• BR-Script 3
• IBM ProPrinter XL
• Epson FX-850
• PDF v1.7
• XPS v1.0

Reliability

---

Recommended Monthly Print Volume:5000 to 90000

Power Description

---

Power Source:AC Supply
Input Voltage:230 V AC
Maximum Power Consumption:680 W

Environmental Conditions

---

Minimum Operating Temperature:50°F (10°C)
Maximum Operating Temperature:90.5°F (32.5°C)
Minimum Operating Humidity:20%
Maximum Operating Humidity:80%

Physical Characteristics

---

Form Factor:Desktop
Height:17.6"
Width:16.4"
Depth:18.1"
Weight (Approximate):37.3 lb

Miscellaneous

---

Country of Origin:Vietnam
