Coil S with 2400 Turns
Coil S with 2400 Turns
Regular price
$112.00
Sale price
$112.00
Regular price
$0.00
Shipping calculated at checkout.
Description
Description
Product Information: ..

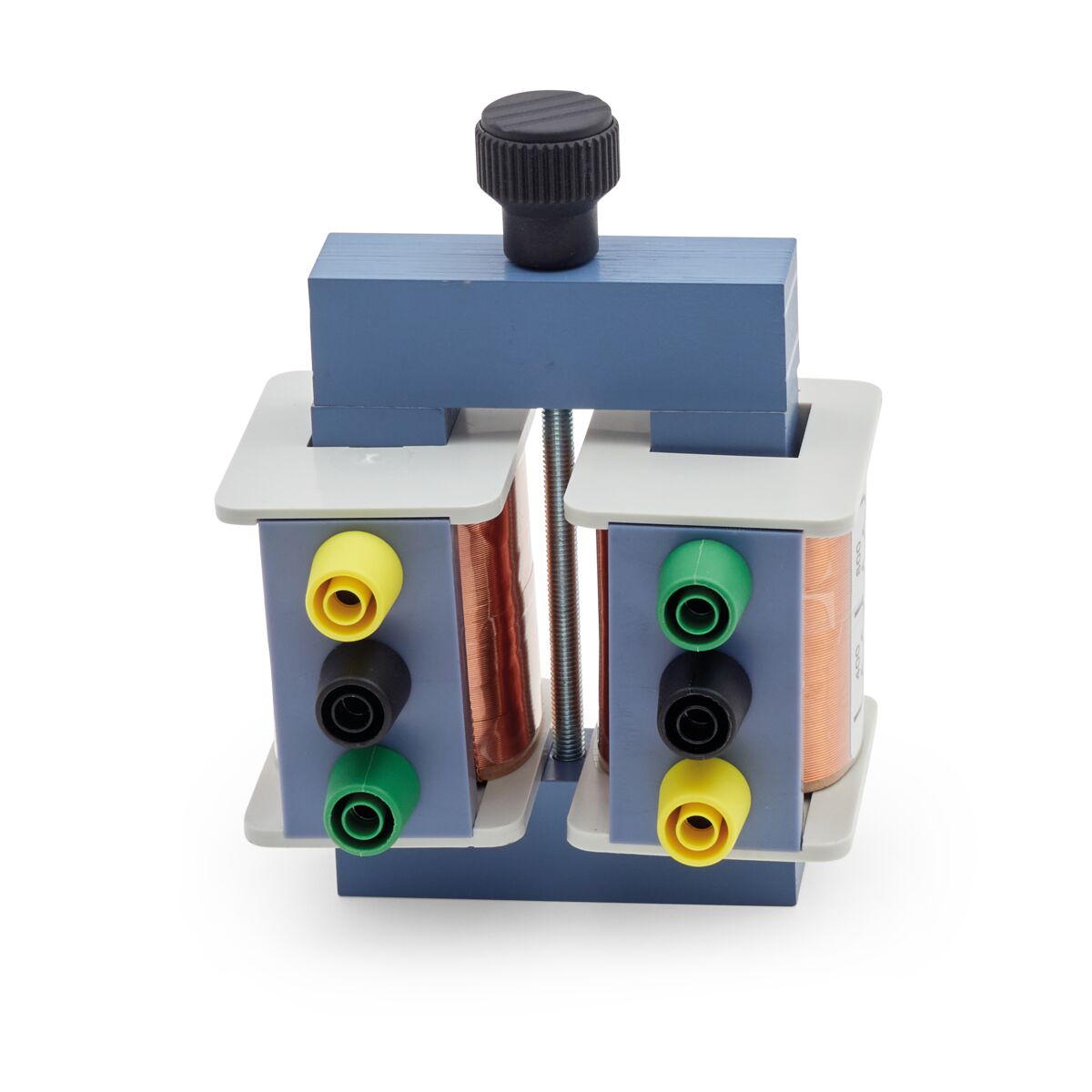

Impact resistant plastic covered coil, safe to touch, for assembling a transformer in conjunction with the Transformer Core S (U8498112).
Specifications: ..
Maximum voltage: 50 V (safety extra-low voltage)
Maximum current: 200 mA
Terminals: 4 mm safety sockets
Opening for iron cores: 20 mm x 20 mm approx.
Number of turns: 2400
Taps: 800 / 1600 / 2400
Inductance: 100 mH approx.
Impact resistant plastic covered coil, safe to touch, for assembling a transformer in conjunction with the Transformer Core S (U8498112).
Specifications: ..
Maximum voltage: 50 V (safety extra-low voltage)
Maximum current: 200 mA
Terminals: 4 mm safety sockets
Opening for iron cores: 20 mm x 20 mm approx.
Number of turns: 2400
Taps: 800 / 1600 / 2400
Inductance: 100 mH approx.
Specification
Specification
| Weight | 0.33 lb |
| Dimensions | 2.2 x 1.8 x 2.6 in |
| Product Area | Physics |
| Maximum voltage: | 50 V (safety extra-low voltage) |
| Maximum current: | 200 mA |
| Terminals: | 4 mm safety sockets |
| Opening for iron cores: | 20 mm x 20 mm approx. mm x mm |
| Number of turns: | 2400 |
| Taps: | 800 / 1600 / 2400 |
| Inductance: | 100 mH approx. |
