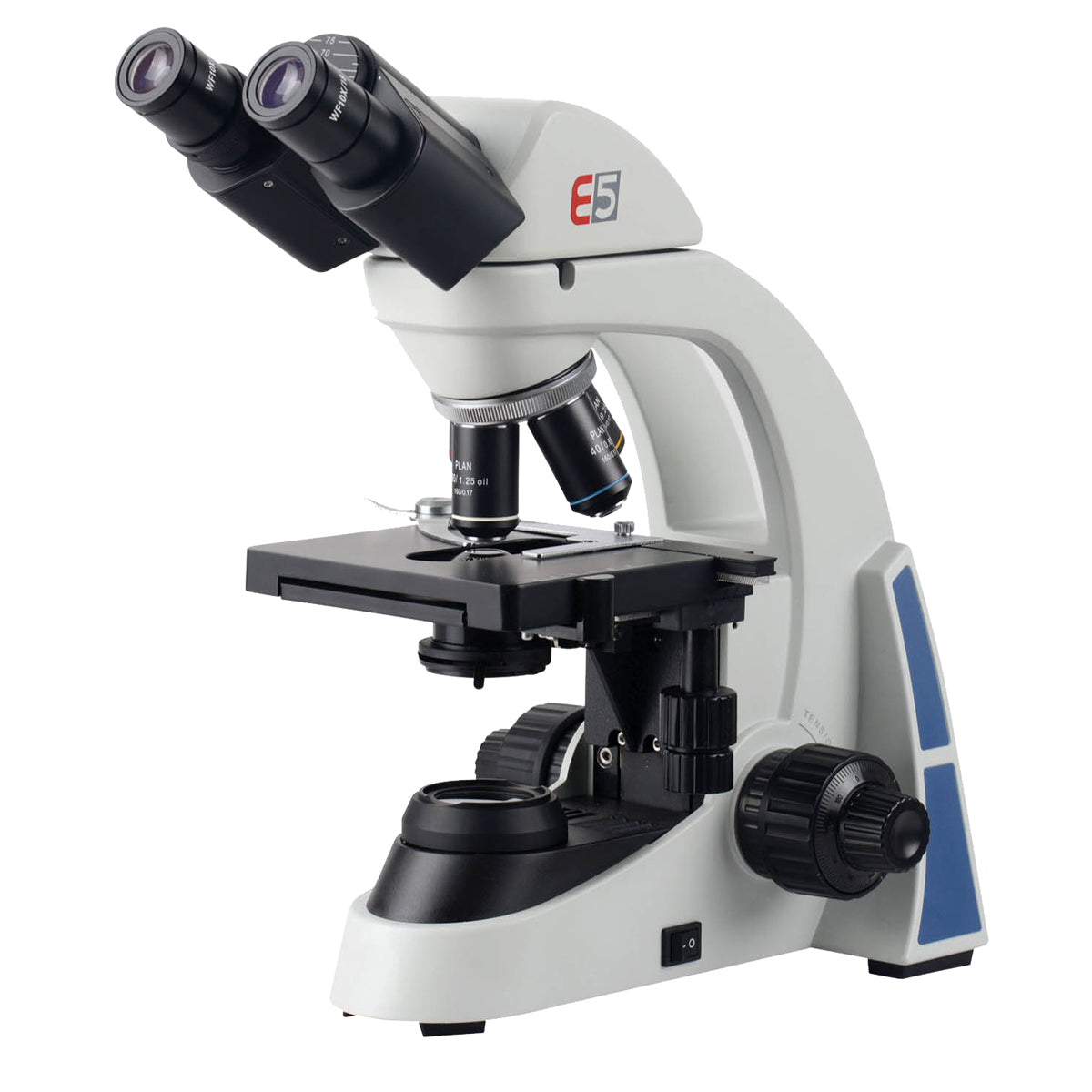

The microscope BE5 stands out thanks to:
• its ergonomic design with 30° angled eyepiece
• its compact and robust construction
• its excellent mechanical and optical quality
• its ease of operation

LED fibre optic illumination integrated into the base

• ensures even illumination of the field of vision
• prevents thermal effects from affecting the sample during prolonged examination
• features a long operating life and makes lamp replacement superfluous

Stand:
• Robust, all-metal stand with an arm permanently connected to the base. Focusing is achieved with separate knobs for coarse and fine adjustment, located on either side of the stand. The mechanism is a rack and pinion drive with ball bearings and a retaining lever. An adjustable stopper is included to protect the object slides and objective.
• Resolution of fine focusing adjustment: 0.002 mm

Tube
• The microscope features a binocular head with a 30° viewing angle and 360° rotation. The viewing distance is adjustable between 50 and 75 mm, and it has a ±5 dioptric compensation.

Eyepieces
• It comes with a pair of wide-field plan eyepieces PL 10x 18 mm.

Objectives
• The inverted objective revolver holds four achromatic objectives:
• 4x / 0.10
• 10x / 0.25
• 40x / 0.65
• 100x / 1.25 (oil)

Enlargement
• The total magnification options are 40x, 100x, 400x, and 1000x.

Object Stage
• The x-y mechanical stage measures 132 mm x 140 mm. It includes an object guide and coaxial adjustment knobs perpendicular to the stage.

Adjustment range: 76 mm x 50 mm

Accuracy: 0.1 mm

Illumination
• The microscope has adjustable LED lighting integrated into the base, powered by a universal 100 to 240 V, 50/60 Hz power supply.

Condenser
• It is equipped with an Abbe condenser N.A. 1.25, featuring an iris diaphragm and a filter holder.

Dimensions & Weight
• Dimensions: Approximately 350 mm x 213 mm x 366 mm
• Weight: Approximately 8 kg

Supplied
• The product is supplied complete with a dust cover.
