Bell, Relay and Bimetallic Switch – Equipment Kit

Overview

Scope of Delivery: ..
1 Base-plate with three fixing positions

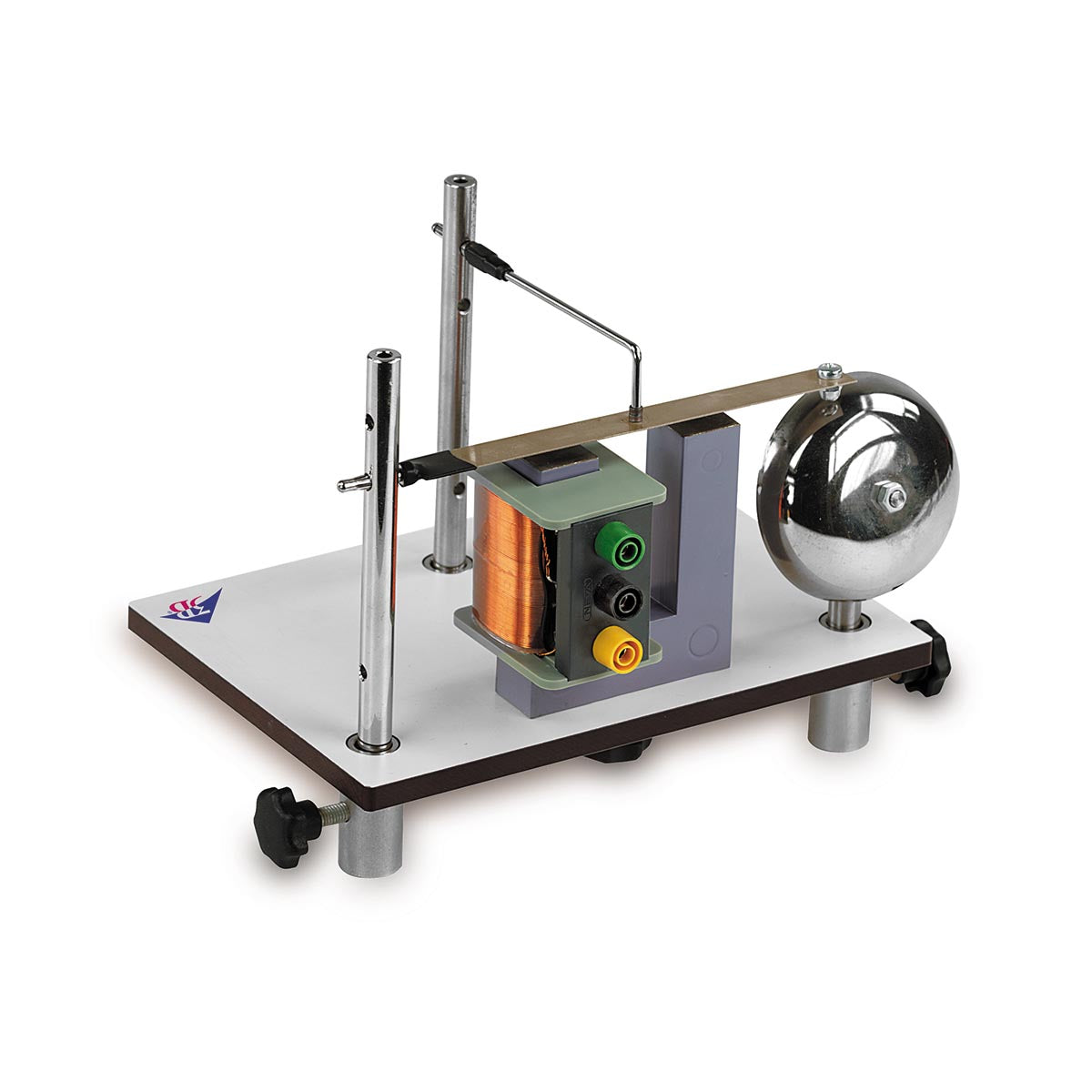

1 Bell, 70 mm diameter
2 Contact rods, each with three 4 mm holes
1 Leaf spring with plug
1 Bimetallic strip with plug
1 Armature with plug
1 Contact pin with plug
1 U-core, 20 mm x 20 mm
1 Fixing screw for U-core

Description

Product Information: ..
Assembly Kit “Bell, Relay and Bimetallic Switch ” Equipment kit comprising materials to assemble electromagnetic switches and bimetallic switches.

Specification

Weight	3.57 lb
Product Area	Physics
Base plate (L x W x H):	200 mm x 140 mm x 40 mm mm x mm x mm
Total weight of set:	1.6 kg approx.

Bell, Relay and Bimetallic Switch – Equipment Kit

Name: Bell, Relay and Bimetallic Switch – Equipment Kit
Brand: 3B Scientific
SKU: 3BS1000994
Price: 691.90 USD
Availability: InStock

Brand: 3B Scientific

Categories: Science Kits

Item Number: 1008691

$691.90

$691.90 ~~$0.00~~
