Product Information: ..

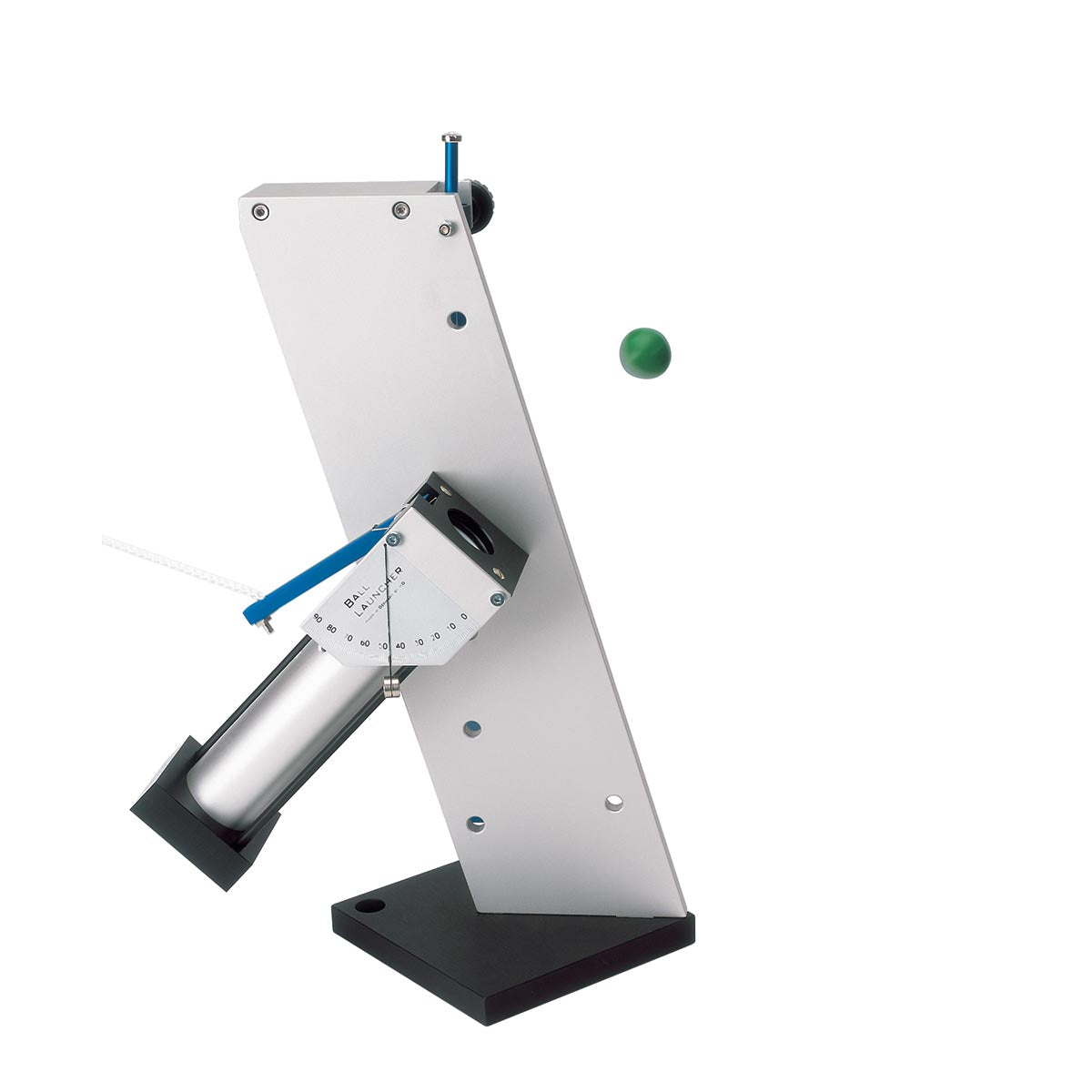

Accessories for the launcher (item no: 1002654 ) for use in experiments on elastic and inelastic collision or to be used as a holder for experiments on trajectory. The speed of the balls as measured in launcher experiments or pendulum experiments agree to within approximately ±3%. Additional weights can be used to investigate how pendulums behave with differing angles of deflection at the same speed. For experiments investigating trajectories, the launcher can be set to 5 different launch heights 5, 10, 15, 20 and 30 cm when it is attached to the rear of the ballistic pendulum.

Specifications: ..
Height of pendulum: 370 mm
Extra weights: 17,5 g each
Base plate: 130 mm x 130 mm
Span of bench clamp: 10 mm – 65 mm
Mass: 2.1 kg

Contents: ..

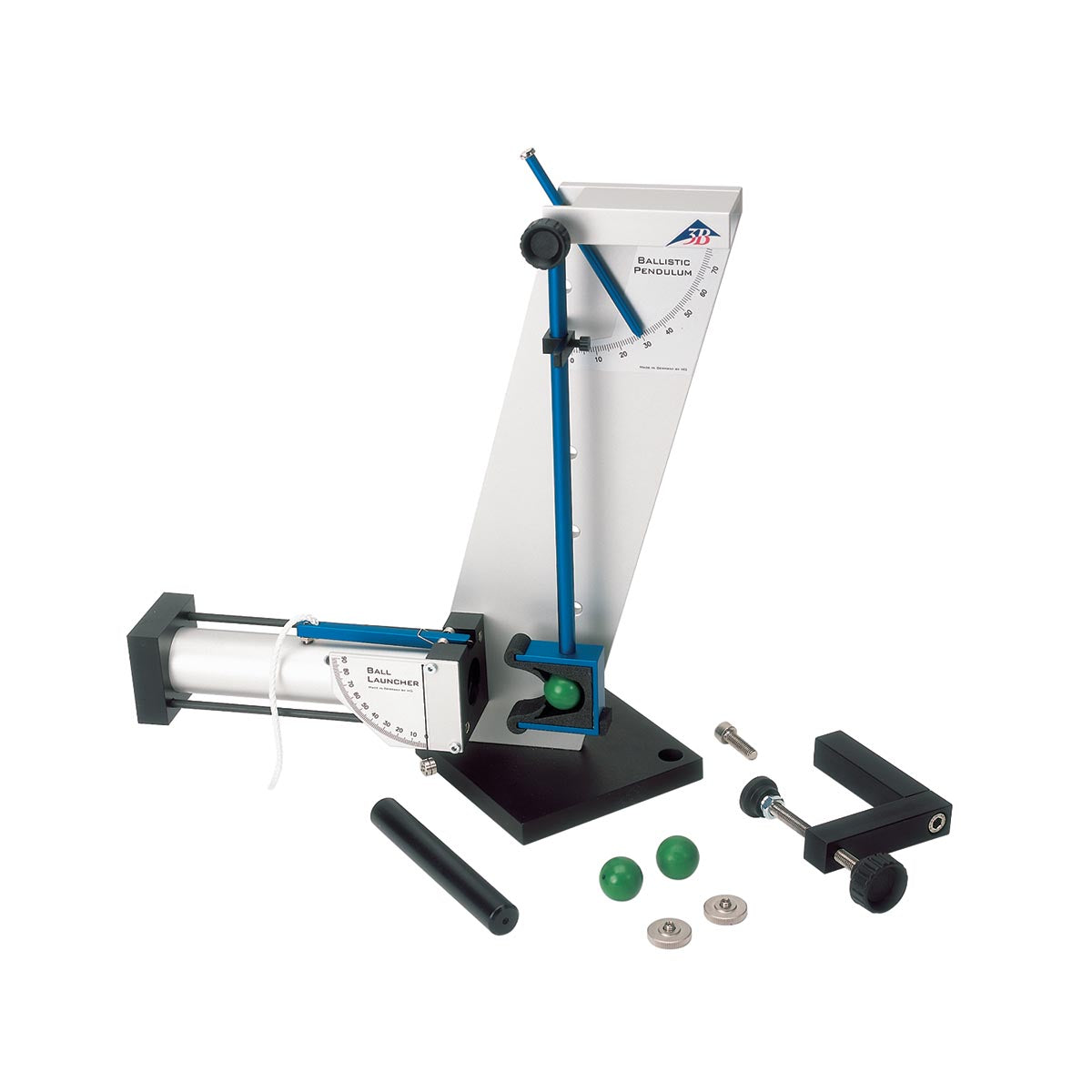

1 Ballistic pendulum with table clamp
2 Extra weights
