Application: ..
The auxiliary is used to create a magnetic field perpendicular to the axis of a tube. When used in conjunction with the Helmholtz pair of coils D and S (1000644 and 1000611) and the Perrin tube D and S (1000650 and 1000616) two orthogonal magnetic fields can thus be generated at right angles to the tube axis to demonstrate the basic principles of a cathode ray oscilloscope.

Product Information: ..

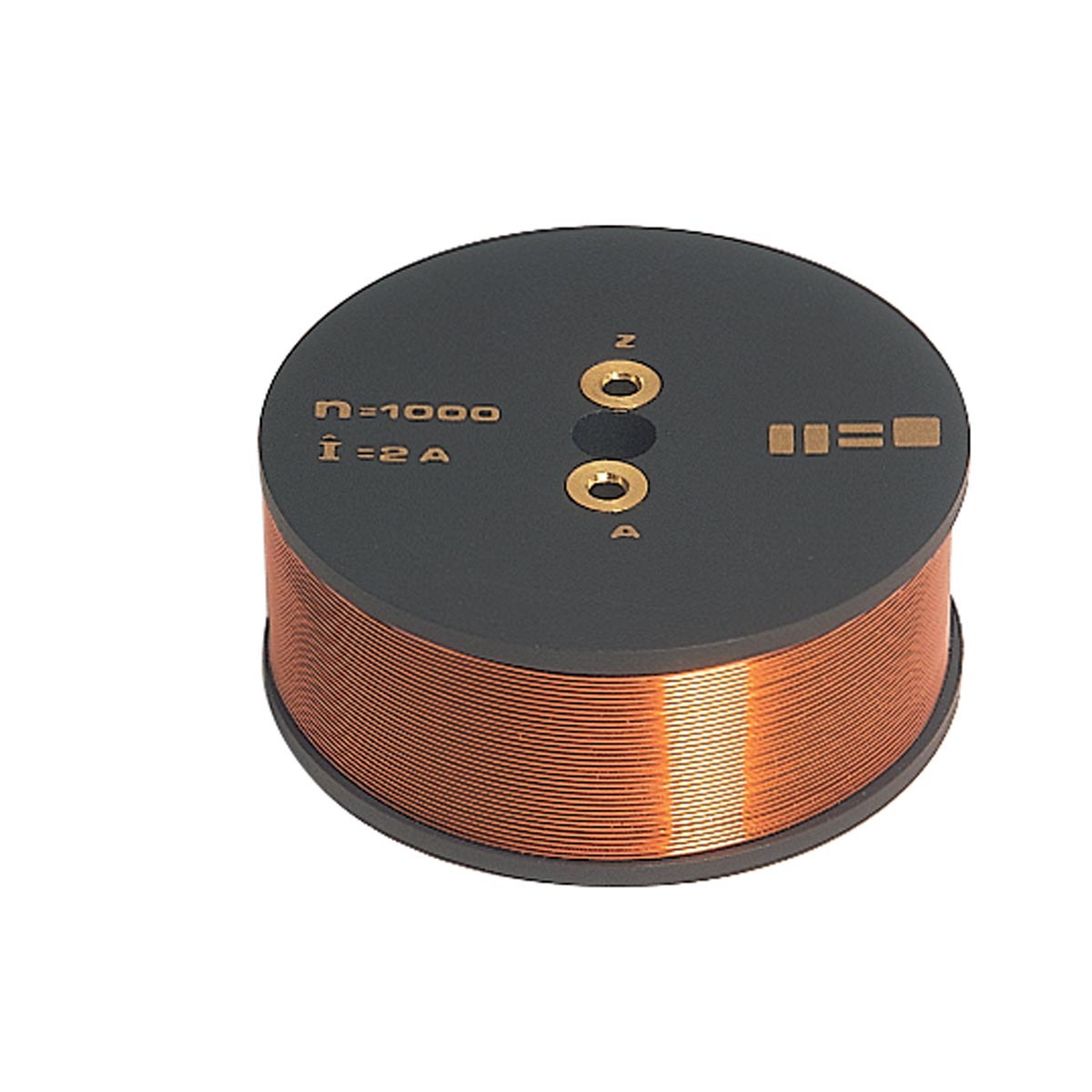

The air filled coil is made of lacquered copper wire on a plastic bobbin with a lip for securing to the fork of the tube holder D (1008507). Connections are labelled from the start (A) to the end (Z) of the coil winding.

Specifications: ..
Number of windings: 1000
Maximum current: max. 2 A (short term)
Effective resistance: 7 Ω approx.
Connection: via 4-mm sockets
Dimensions: 33 mm x 80 mm Ø
