General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP9626
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric

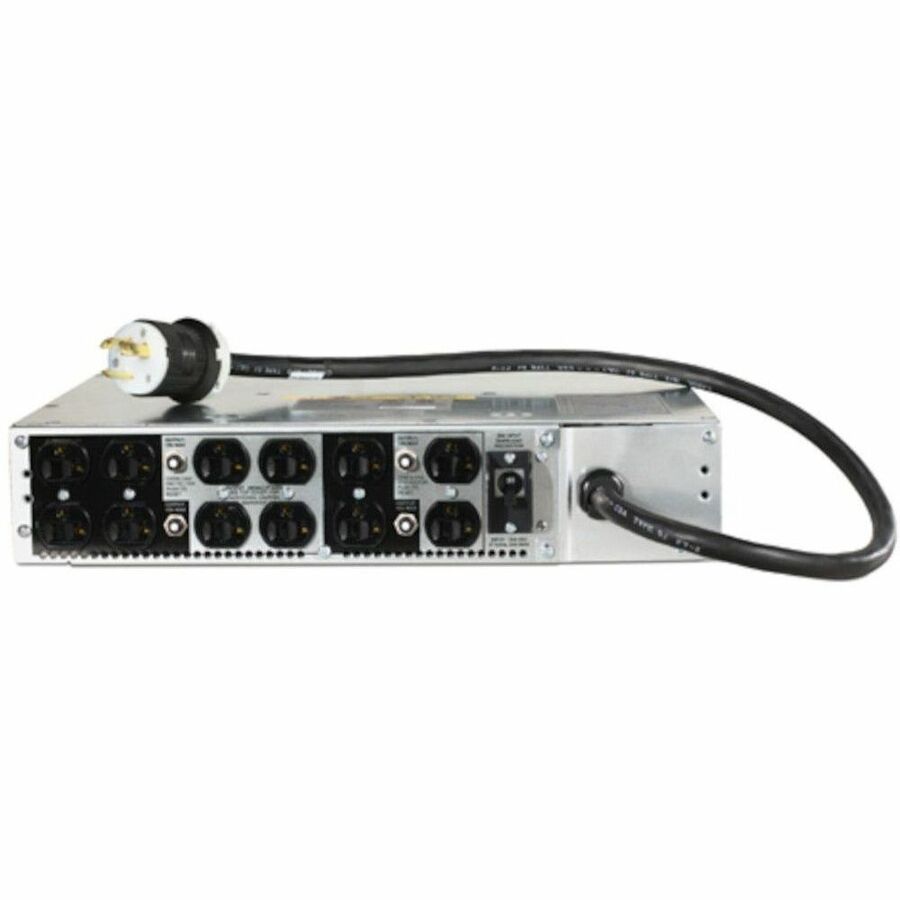

Product Name:Step-Down Rack-mountable Transformer
Marketing Information:

This transformer converts high voltage (208V) input to low voltage (120V) output, suitable for powering low voltage AC equipment. It features a 2U rack-mount design and includes 12 NEMA 5-20R outlets. The unit includes rack mounting brackets and user manual.

Packaged Quantity:1 Each
Product Type:Step Down Converter

Technical Information

---

Power Rating:5000 VA
Input Receptacle Type:NEMA L6-30P
Output Receptacle Type:NEMA 5-20R
Output Receptacle Detail:12 x NEMA 5-20R

Power Description

---

Input Voltage:208 V
Output Voltage:120 V
Maximum Line Current:30 A

Physical Characteristics

---

Color Family:Black
Product Color:Black
Form Factor:Rack-mountable
Mounting Location:Front
Mounting Preference:No Preference
Rack Height:2U
Height:3.5"
Width:17.5"
Depth:24"
Weight (Approximate):95.20 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

Step-Down Rack-mountable Transformer

Rack mounting brackets

User manual

Certifications & Standards:CSA
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP9626_ROHS_DECLARATION&p_FileName=AP9626KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759638&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759638&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
REACH free of SVHC:No
Lead Free:Yes
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
