General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:SRT5KRMXLT
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS On-Line

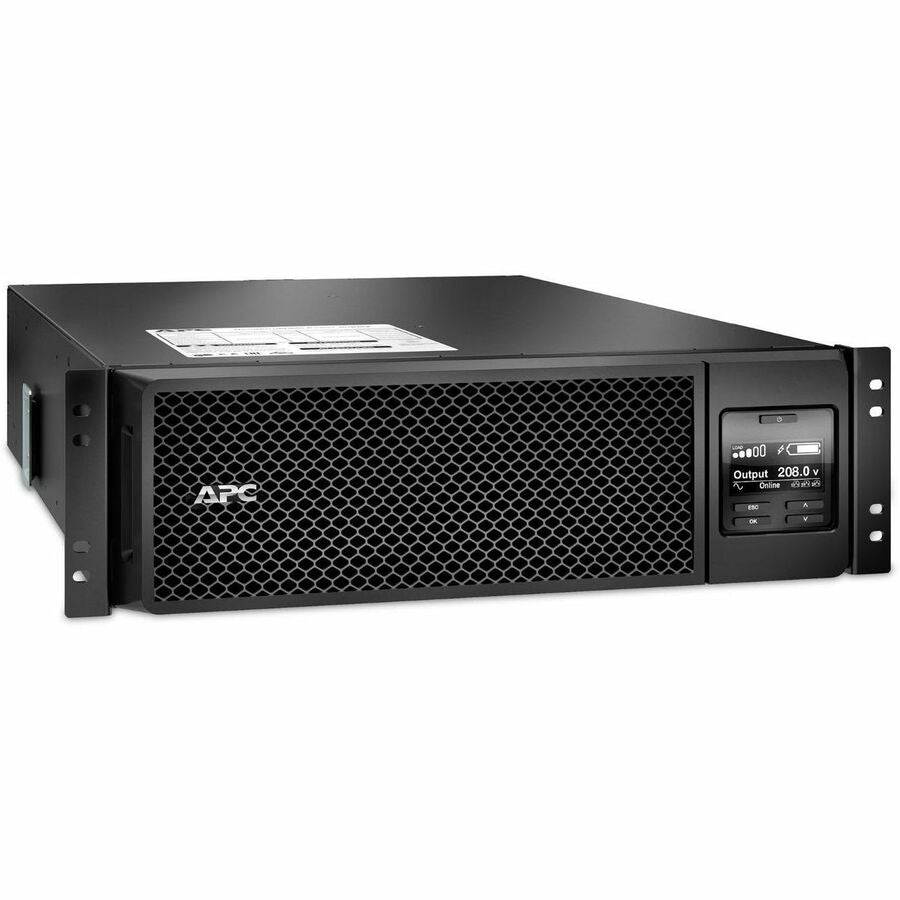

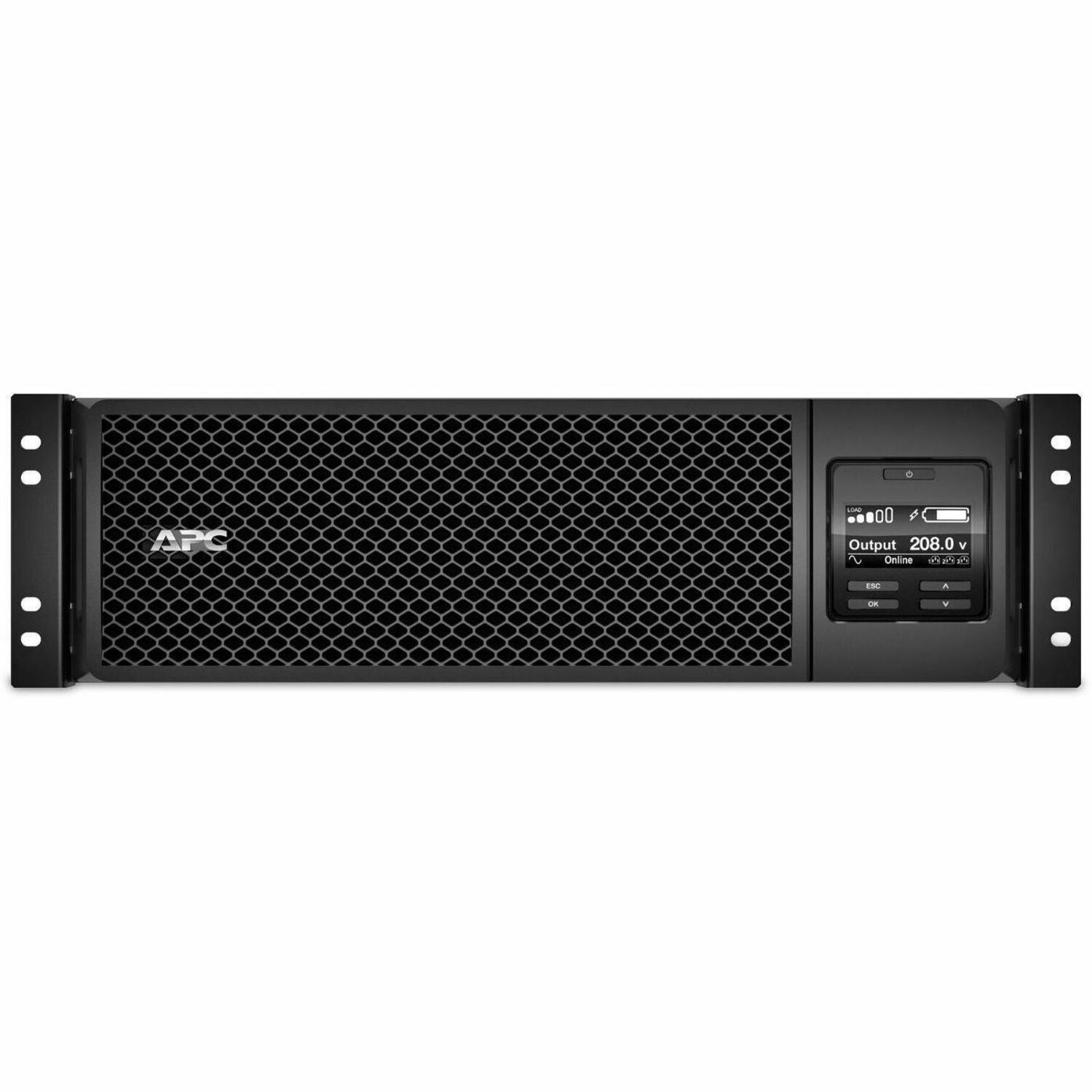

Product Name:Smart-UPS SRT 5000VA RM 208V
Marketing Information:

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5.4kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-30P input, 2x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

Packaged Quantity:1 Each
Product Type:Double Conversion Online UPS

Technical Information

---

Plug/Connector Type:NEMA L6-30P
Receptacle Type:NEMA L6-30P
Receptacle Detail:

• 2 x NEMA L6-20R
• 2 x NEMA L6-30R

Number of Battery & Surge Outlets:4
Cord Length:10.01 ft
Phase:Single Phase

Power Description

---

Load Capacity (VA):5400 VA
Load Capacity (Watt):4250 W
Input Voltage:208 V AC
Output Voltage:208 V AC
Waveform Type:Sine Wave
Surge Energy Rating:480 J

Battery Information

---

Battery Chemistry:Lead Acid
Typical Battery Recharge Time:1.50 Hour

Physical Characteristics

---

Color Family:Black
Product Color:Black

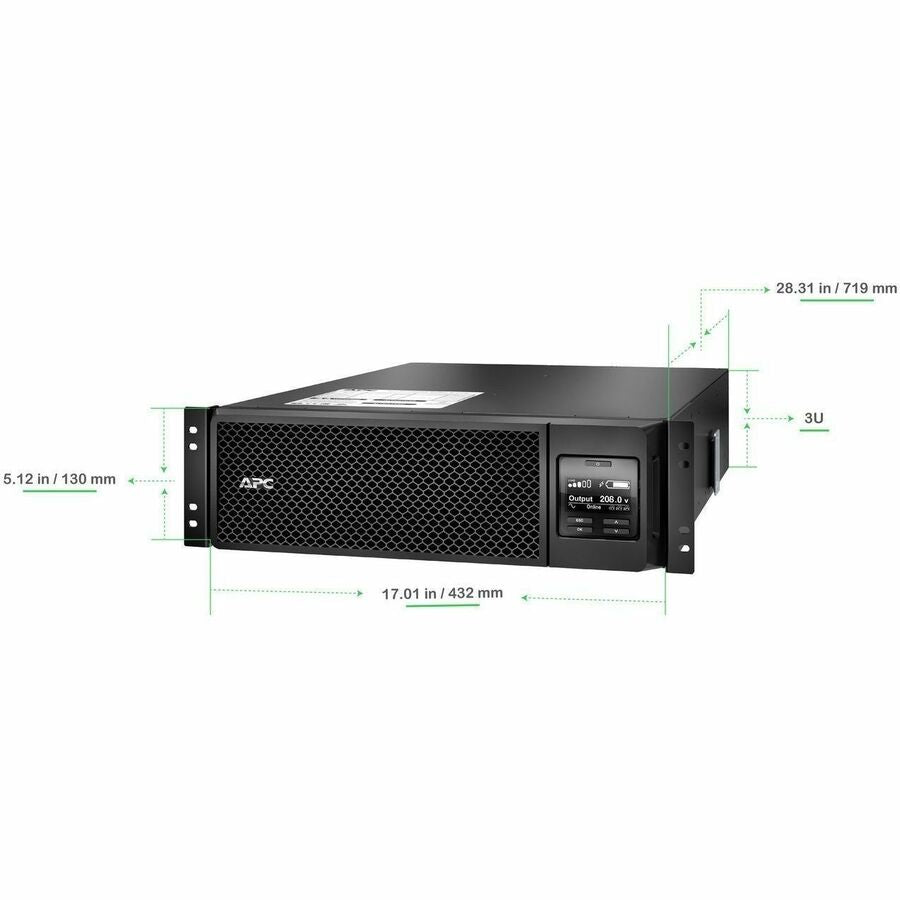

Height:5.1"
Width:17"
Depth:28.3"
Rack Height:3U
Form Factor:Rack-mountable
Mounting Preference:No Preference
Mounting Location:Front
Weight (Approximate):123 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

Smart-UPS SRT 5000VA RM 208V

Documentation CD

Rack mounting brackets

Rack mounting hardware

Rack mounting support rails

USB cable

User manual

Warranty card

Web/SNMP management card

Certifications & Standards:ENERGY STAR V2.0 (USA)|NOM
Energy Star:Yes
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT5KRMXLT_ROHS_DECLARATION&p_FileName=SRT5KRMXLTKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433135481&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433135481&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
Energy Star URL:https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC:No
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:3 Year
Additional Warranty Information:UPS: 36 month(s)|Battery: 24 month(s)
