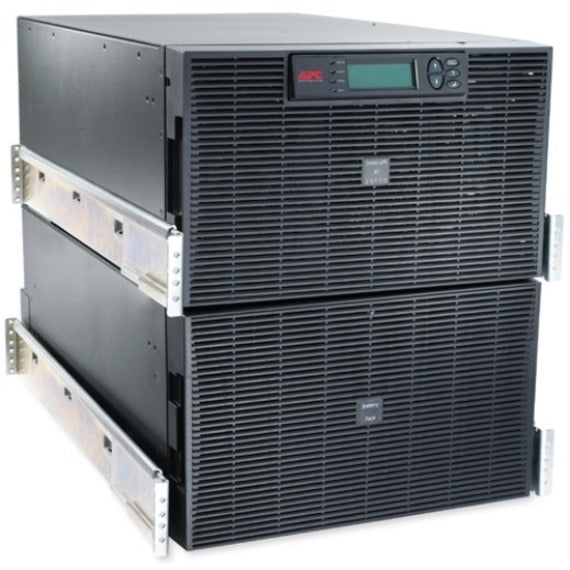

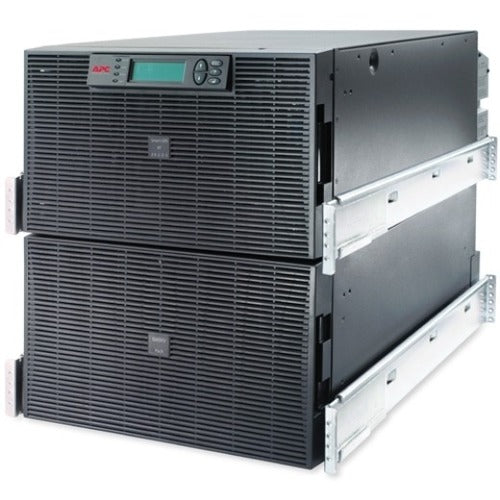

APC by Schneider Electric Smart-UPS RT 20kVA Tower/Rack-mountable UPS
APC by Schneider Electric Smart-UPS RT 20kVA Tower/Rack-mountable UPS
Regular price
$23,759.99
Sale price
$23,759.99
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description
The APC Smart-UPS RT is an online UPS with a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as IEC 60230 C19 and IEC Jumpers. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.
Specification
Specification
General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SURT20KRMXLI
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Series:RT
Product Model:SURT20KRMXLI
Product Name:Smart-UPS RT 20kVA Tower/Rack-mountable UPS
Marketing Information:
Packaged Quantity:1 Each
Product Type:Double Conversion Online UPS
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SURT20KRMXLI
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Series:RT
Product Model:SURT20KRMXLI
Product Name:Smart-UPS RT 20kVA Tower/Rack-mountable UPS
Marketing Information:
The APC Smart-UPS RT is an online UPS with a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as IEC 60230 C19 and IEC Jumpers. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.
Packaged Quantity:1 Each
Product Type:Double Conversion Online UPS
Technical Information
Plug/Connector Type:
Receptacle Type:
Receptacle Detail:
Number of Battery & Surge Outlets:21
Overload Protection:Yes
Plug/Connector Type:
- Hard Wire 3-wire
- Hard Wire 5-wire
Receptacle Type:
- Hard Wire 3-wire
- Hard Wire 5-wire
- IEC 60320 C19
- IEC Jumper
Receptacle Detail:
- 1 x Hard Wire 3-wire
- 1 x Hard Wire 5-wire
- 8 x IEC 60320 C19
- 2 x IEC Jumper
Number of Battery & Surge Outlets:21
Overload Protection:Yes
Power Description
Load Capacity (VA):20 kVA
Input Voltage:220 V AC
Output Voltage:230 V AC
Waveform Type:Sine Wave
Load Capacity (VA):20 kVA
Input Voltage:220 V AC
Output Voltage:230 V AC
Waveform Type:Sine Wave
Management
Network Management:SNMP Manageable
Bypass Switch:
Emergency Power OFF:Yes
Network Management:SNMP Manageable
Bypass Switch:
- Automatic
- External (Optional)
- Internal
- Manual
- Static
Emergency Power OFF:Yes
Interfaces/Ports
Serial Port:Yes
Network (RJ-45):Yes
Modular Slots:SmartSlot
Serial Port:Yes
Network (RJ-45):Yes
Modular Slots:SmartSlot
Battery Information
Battery Characteristics:Maintenance-free/Sealed/Spill Proof
Battery Chemistry:Lead Acid
Typical Battery Recharge Time:2.50 Hour
Battery Characteristics:Maintenance-free/Sealed/Spill Proof
Battery Chemistry:Lead Acid
Typical Battery Recharge Time:2.50 Hour
Physical Characteristics
Color Family:Black
Product Color:Black
Form Factor:Rack-mountable
Rack Height:12U
Height:21"
Width:17"
Depth:30.4"
Weight (Approximate):546.15 lb
Color Family:Black
Product Color:Black
Form Factor:Rack-mountable
Rack Height:12U
Height:21"
Width:17"
Depth:30.4"
Weight (Approximate):546.15 lb
Miscellaneous
Package Contents:Smart-UPS RT 20kVA Tower/Rack-mountable UPS CD with software Rack mounting support rails Smart UPS signalling RS-232 cable User manual Web/SNMP management card
Country of Origin:Philippines
Environmentally Friendly:Yes
Package Contents:
Country of Origin:Philippines
Environmentally Friendly:Yes
Warranty
Limited Warranty:2 Year
Limited Warranty:2 Year
