General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:SURT20KRMXLT
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Series:RT

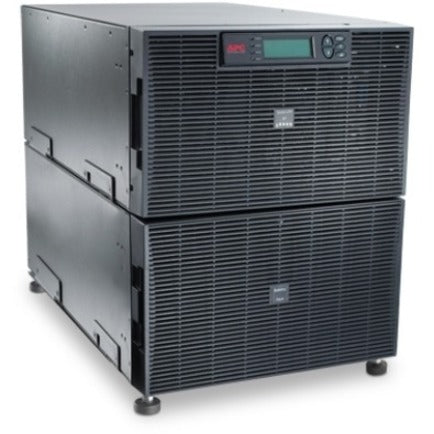

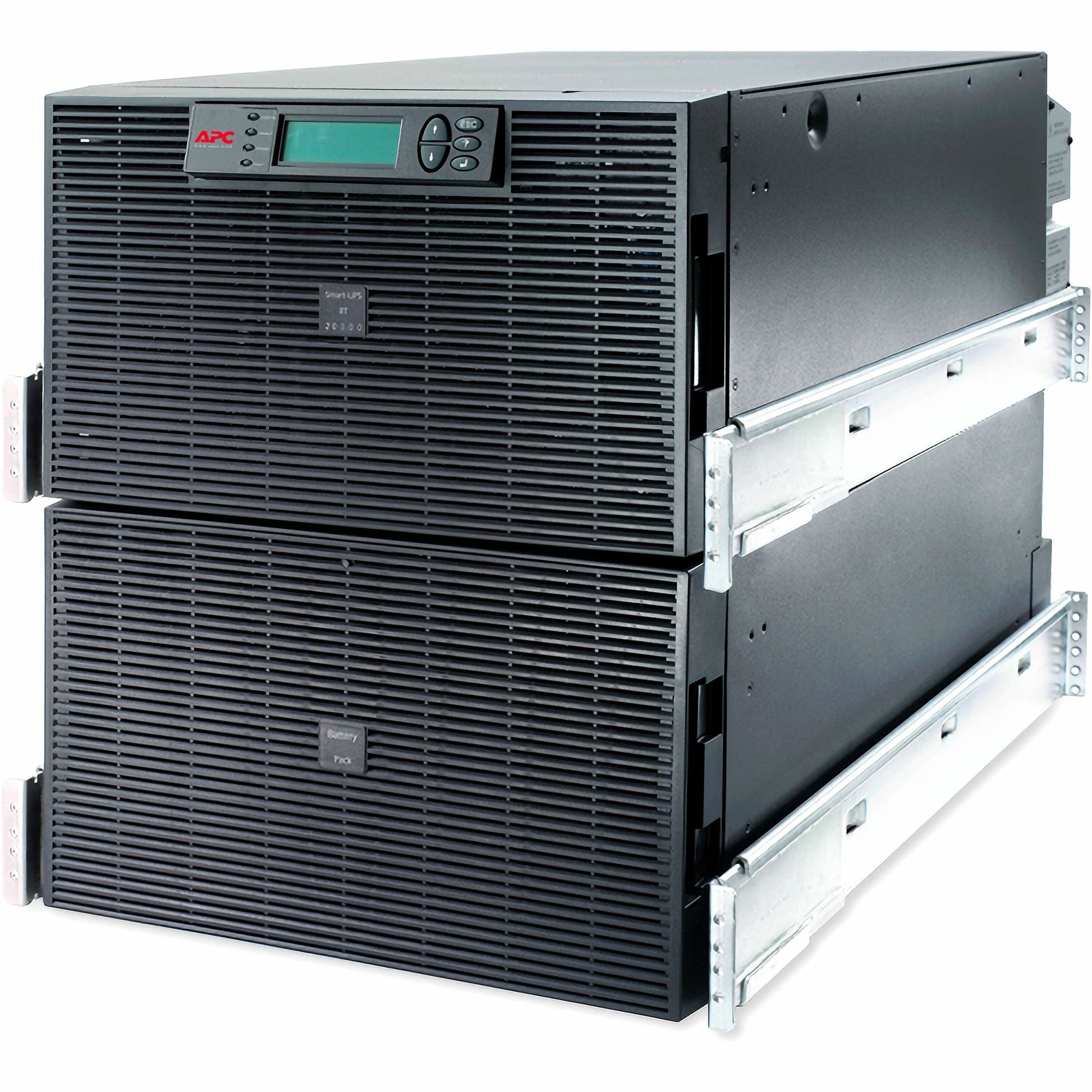

Product Name:Smart-UPS RT 20000VA Tower/Rack Mountable UPS
Marketing Information:

The APC Smart-UPS RT is an online UPS with a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as NEMA L6-20R and NEMA L6-30R. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.

Packaged Quantity:1 Each
Product Type:Double Conversion Online UPS

Technical Information

---

Plug/Connector Type:Hard Wire 3-wire (2PH + G)
Receptacle Type:

• NEMA L6-20R
• NEMA L6-30R

Receptacle Detail:

• 1 x Hard Wire 3-wire (2PH + G)
• 4 x NEMA L6-20R
• 2 x NEMA L6-30R

Number of Battery & Surge Outlets:6
Bypass Switch:

• Static
• Internal
• Automatic & Manual
• External (Optional)

Emergency Power OFF:Yes
Phase:Single Phase

Power Description

---

Load Capacity (VA):20 kVA
Load Capacity (Watt):16 kW
Input Voltage:

• 208 V AC
• 240 V AC

Input Current:114 A
Output Voltage:

• 208 V AC
• 240 V AC

Waveform Type:Sine Wave

Management

---

Network Management:SNMP Manageable

Interfaces/Ports

---

Serial Port:Yes
Network (RJ-45):Yes

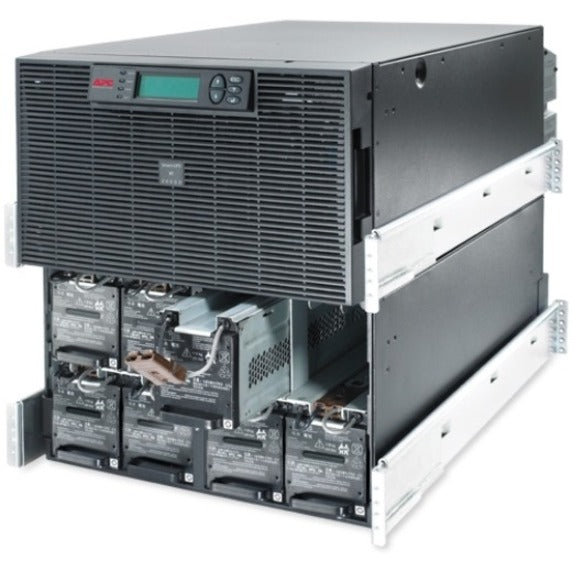

Battery Information

---

Number of Batteries:4
Battery Characteristics:Spill-proof, Maintenance-free
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):4.90 Minute
Backup/Run Time (Half Load):15.30 Minute
Typical Battery Recharge Time:2 Hour
Hot Swappable:Yes

Physical Characteristics

---

Color Family:Black
Product Color:Black
Height:21"
Width:17"
Depth:30.4"
Rack Height:12U
Form Factor:Rack-mountable
Mounting Preference:Lower
Mounting Location:Front
Weight (Approximate):546.15 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

Smart-UPS RT 20000VA Tower/Rack Mountable UPS

CD with software

Rack mounting support rails

Smart UPS signalling RS-232 cable

User manual

Web/SNMP management card

Certifications & Standards:UL 1778
Software Included:PowerChute Management Software
Product Take Back Program:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT20KRMXLT_ROHS_DECLARATION&p_FileName=SURT20KRMXLTKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=765796&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=765796&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
REACH free of SVHC:No
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
