General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:SCL500RM1UNC
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Name:Smart-UPS 500VA Rack-mountable UPS
Marketing Information:

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Packaged Quantity:1 Each
Product Type:Line-interactive UPS

Technical Information

---

AVR:Yes
Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15P
Receptacle Detail:4 x NEMA 5-15R
Number of Battery & Surge Outlets:4
Overload Protection:Yes
Cord Length:6 ft
Transfer Time:6 ms
Phase:Single Phase
Application/Usage:

• Server
• POS Terminal
• Router
• Switch
• Network Hub
• IT Equipment
• Network Device
• Business
• Storage System
• Critical System
• Security System
• Communication System

Power Description

---

Load Capacity (VA):500 VA
Load Capacity (Watt):400 W
Input Voltage:120 V AC
Output Voltage:120 V AC
Input Frequency:63 Hz
Output Frequency:60 Hz
Waveform Type:Sine Wave
Surge Energy Rating:680 J

Management

---

Alarm:

• On Battery
• Low Battery
• Configurable Delay

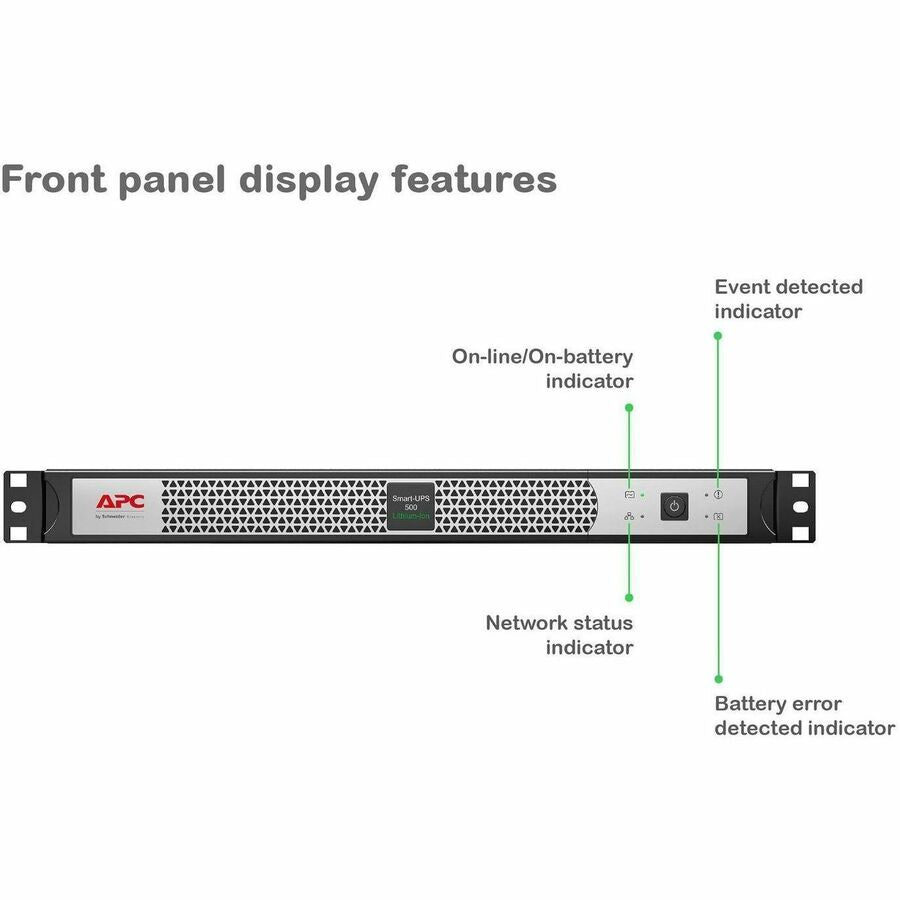

Controls/Indicators

---

Status Indicators:

LED Status Display:

• On Battery
• On Line

Interfaces/Ports

---

Serial Port:Yes
USB (HID Compliant) Port:Yes

Battery Information

---

Battery Chemistry:Lithium Ion (Li-Ion)
Battery Energy:108 kJ
Backup/Run Time (Full Load):2.70 Minute
Backup/Run Time (Half Load):6.30 Minute
Typical Battery Recharge Time:3 Hour
Hot Swappable:Yes
Replaceable Battery:Yes

Environmental Conditions

---

Maximum Operating Temperature:104°F (40°C)
Storage Temperature:5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:6561 ft
Maximum Storage Elevation:49212 ft
Sound Emission (A-Weighted):45 dB(A)

Physical Characteristics

---

Color Family:Dual Color
Product Color:

• Black
• Silver

Height:1.7"
Width:17"
Depth:9.1"
Rack Height:1U
Form Factor:Rack-mountable
Mounting Preference:No Preference
Weight (Approximate):9.30 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

Smart-UPS 500VA Rack-mountable UPS

CD with software

Documentation CD

Installation guide

Rack mounting support rails

USB cable

Certifications & Standards:cULus|NOM
Software Included:Powerchute Serial Edition
Energy Star:Yes
Optimized Energy Efficiency:Yes
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SCL500RM1UNC_ROHS_DECLARATION&p_FileName=SCL500RM1UNCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500678&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500678&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
REACH free of SVHC:No
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:5 Year
Directly Connected Equipment Guarantee:

• 150000 Lifetime
