General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:SUA5000RMT5U
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS

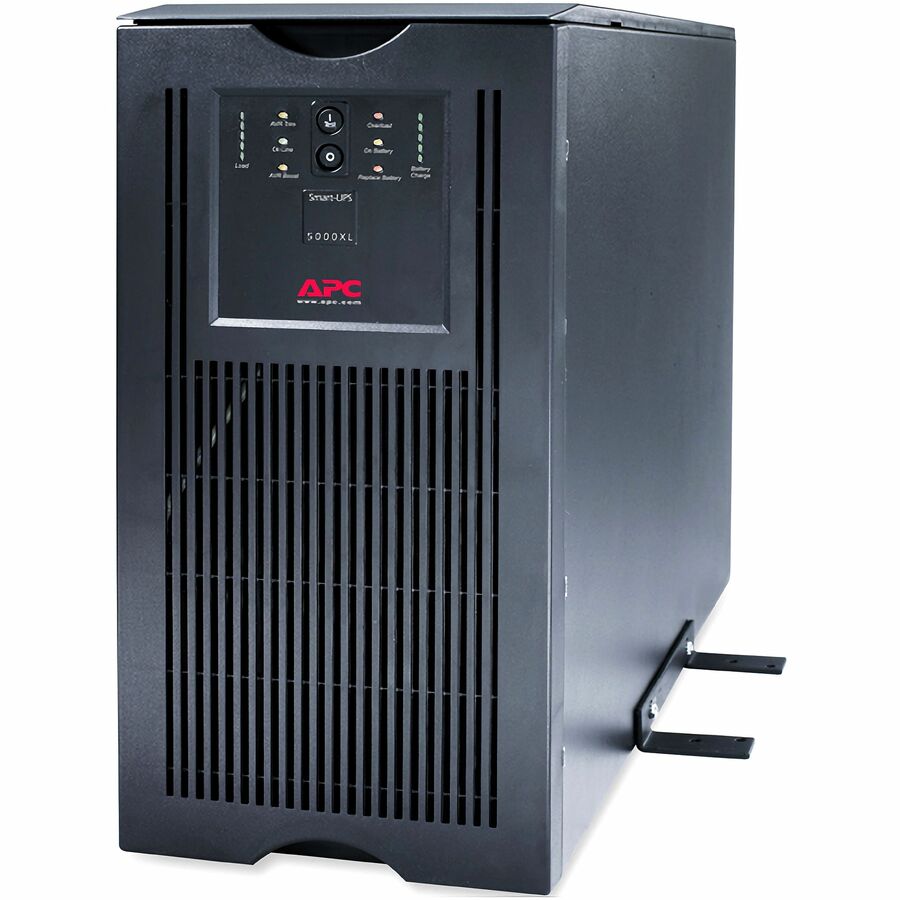

Product Name:Smart-UPS 5000VA Tower/Rack-mountable UPS
Marketing Information:

The APC Smart-UPS is a rackmount or tower UPS with a power rating of 5000VA and 4000 watts. It supports 208V input and output, and includes multiple output connections such as 2 NEMA L6-20R and 2 NEMA L6-30R. The UPS uses lead-acid batteries and features a SmartSlot for additional management options.

Packaged Quantity:1 Each
Product Type:Line-interactive UPS

Technical Information

---

Plug/Connector Type:NEMA L6-30P
Receptacle Type:NEMA L6-30P
Receptacle Detail:

• 2 x NEMA L6-20R
• 2 x NEMA L6-30R

Number of Battery & Surge Outlets:4
Emergency Power OFF:Optional
Cord Length:8 ft
Phase:Single Phase

Power Description

---

Load Capacity (VA):5000 VA
Load Capacity (Watt):4000 W
Input Voltage:

• 208 V AC
• 220 V AC

Output Voltage:208 V AC
Waveform Type:Sine Wave
Surge Energy Rating:480 J

Management

---

Network Management:SNMP Manageable

Battery Information

---

Battery Characteristics:Spill-proof, Maintenance-free
Battery Chemistry:Lead Acid
Typical Battery Recharge Time:3 Hour
Hot Swappable:Yes

Physical Characteristics

---

Color Family:Black
Product Color:Black
Height:8.7"
Width:19"
Depth:26"
Rack Height:5U

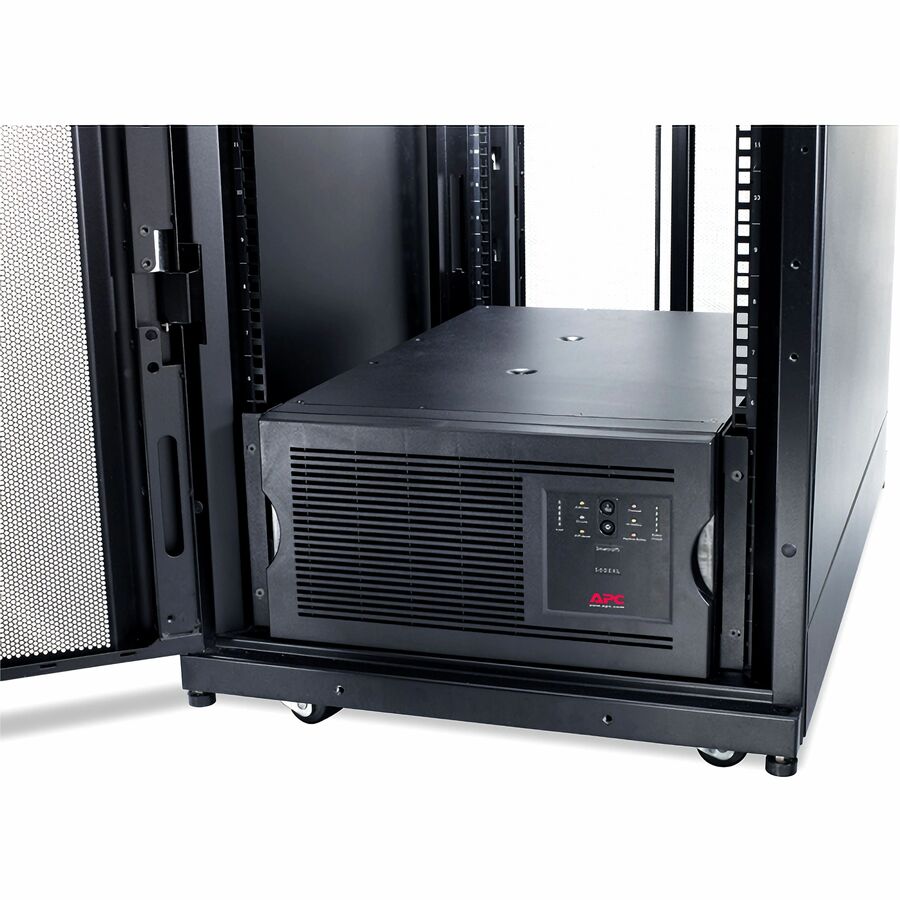

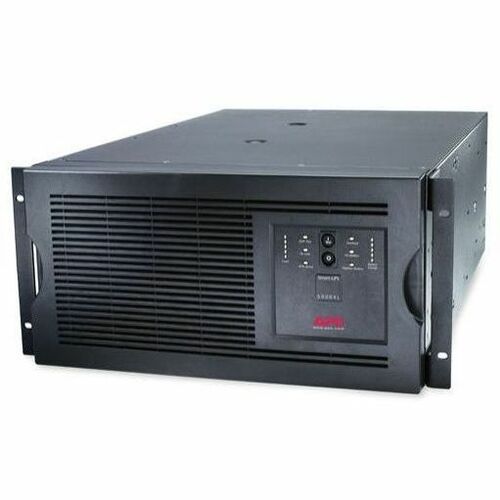

Form Factor:Rack-mountable
Mounting Preference:Lower
Mounting Location:Front
Weight (Approximate):215.46 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

Smart-UPS 5000VA Tower/Rack-mountable UPS

CD with software

Rack mounting support rails

Smart UPS signalling RS-232 cable

User manual

Web/SNMP management card

Certifications & Standards:CSA
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA5000RMT5U_ROHS_DECLARATION&p_FileName=SUA5000RMT5UKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=765536&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=765536&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
REACH free of SVHC:No
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
Directly Connected Equipment Guarantee:

• 150000 Lifetime
