General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:AR8206ABLK
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Model:AR8206ABLK

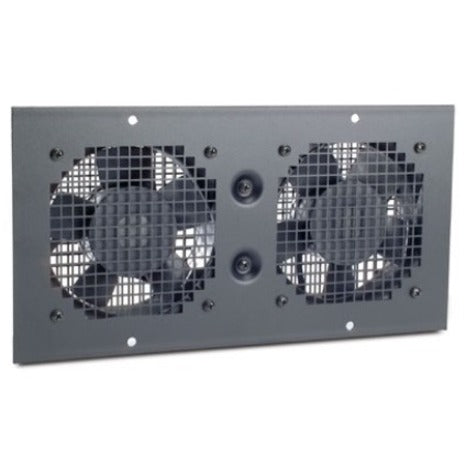

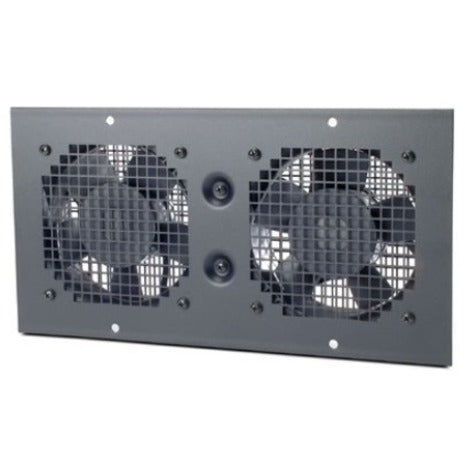

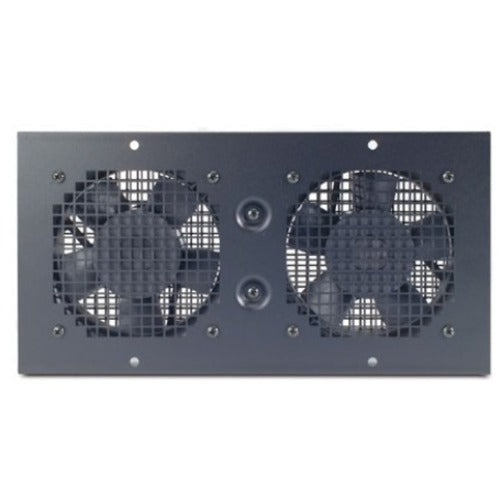

Product Name:Roof Fan Tray for NetShelter WX Enclosures
Marketing Information:

The Rack Fan Tray is a low cost solution that aids in heat removal from a Netshelter Enclosure. The system easily installs into the top of the enclosure and expels heat from the roof of the rack. Wall-mounted enclosures have the additional option of installing the rack fan tray systems in the base of the rack as well. The fan trays are designed to promote bottom to top airflow within the enclosure.

Packaged Quantity:1 Each
Product Type:Fan Tray

Technical Information

---

Number of Fans:2
Maximum Air Flow:220 CFM
Receptacle Type:NEMA 5-15P

Power Description

---

Input Voltage:120 V

Physical Characteristics

---

Color Family:Black
Product Color:Black
Mounting Preference:No Preference
Height:2.1"
Width:12.5"
Depth:6.9"
Weight (Approximate):4.01 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

Roof Fan Tray for NetShelter WX Enclosures

(1) IEC to NEMA 5-15P power cord

(2) Fans

Installation guide

Additional Information:

• Budget conscious solution to enhance airflow within enclosure
• Promotes Proper Airflow
• Fault-tolerant fan system

Certifications & Standards:CSA|UL Listed
Compatibility:

APC NetShelter WX Enclosures

Product Take Back Program:No
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR8206ABLK_ROHS_DECLARATION&p_FileName=AR8206ABLKKIT_ROHS_DECLARATION_US.pdf
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760404&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760404&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008_EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN
REACH free of SVHC:Yes
Toxic Heavy Metal Free:Yes
Country of Origin:United States
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
