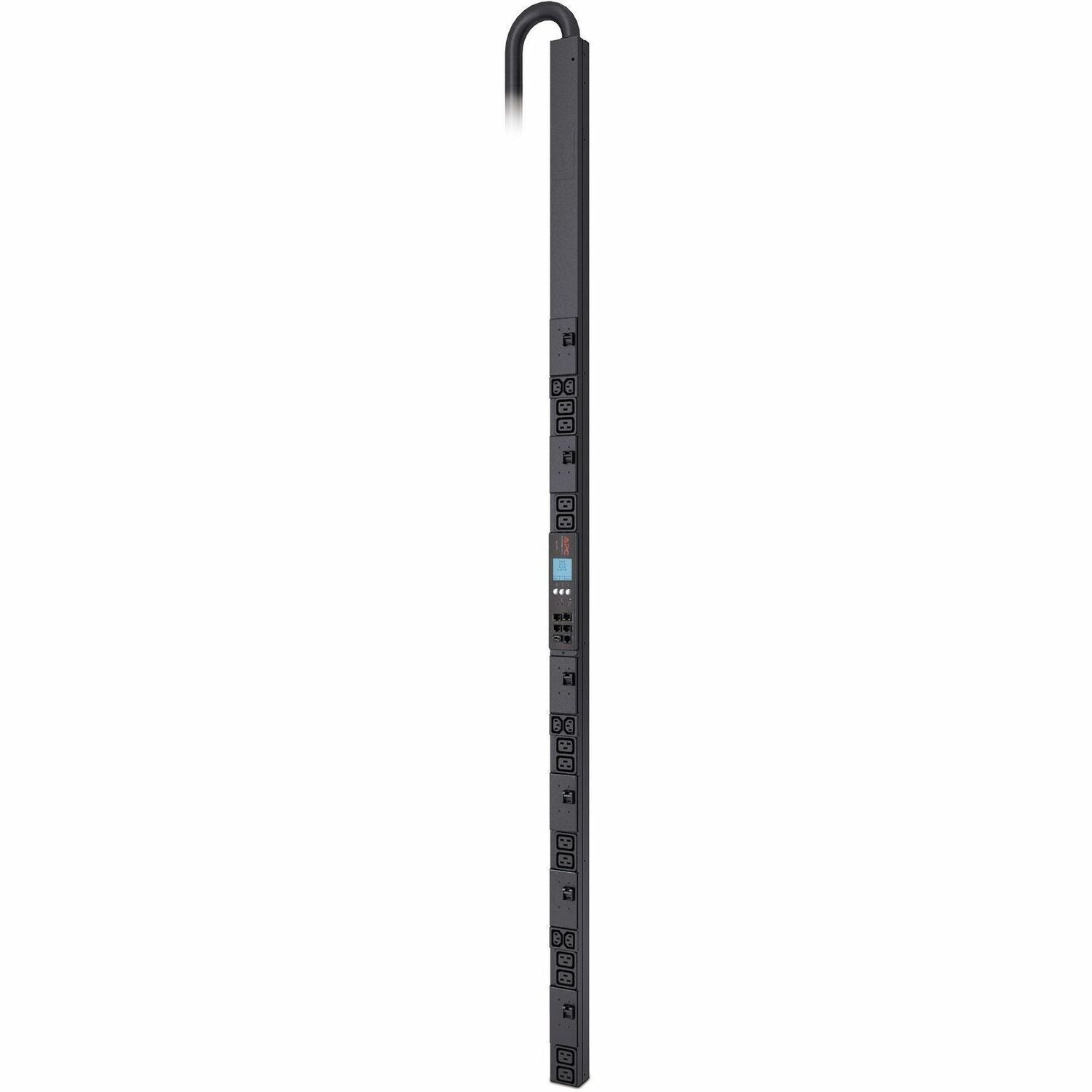

APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
Overview
Overview
Description
Description
Specification
Specification
Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP8866
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Metered Rack
Product Name:Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
Marketing Information:

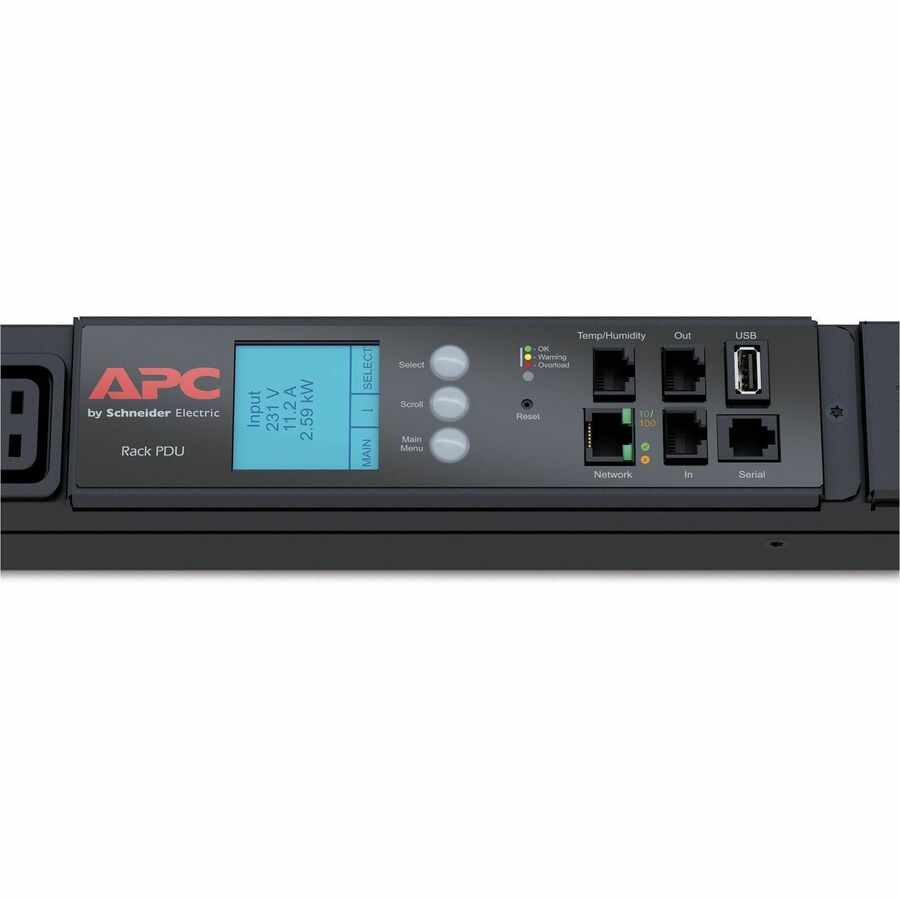

APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (6) IEC 60320 C13, (12) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separatelymodel AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable.
Packaged Quantity:1 Each
Product Type:PDU
PDU Type:Metered

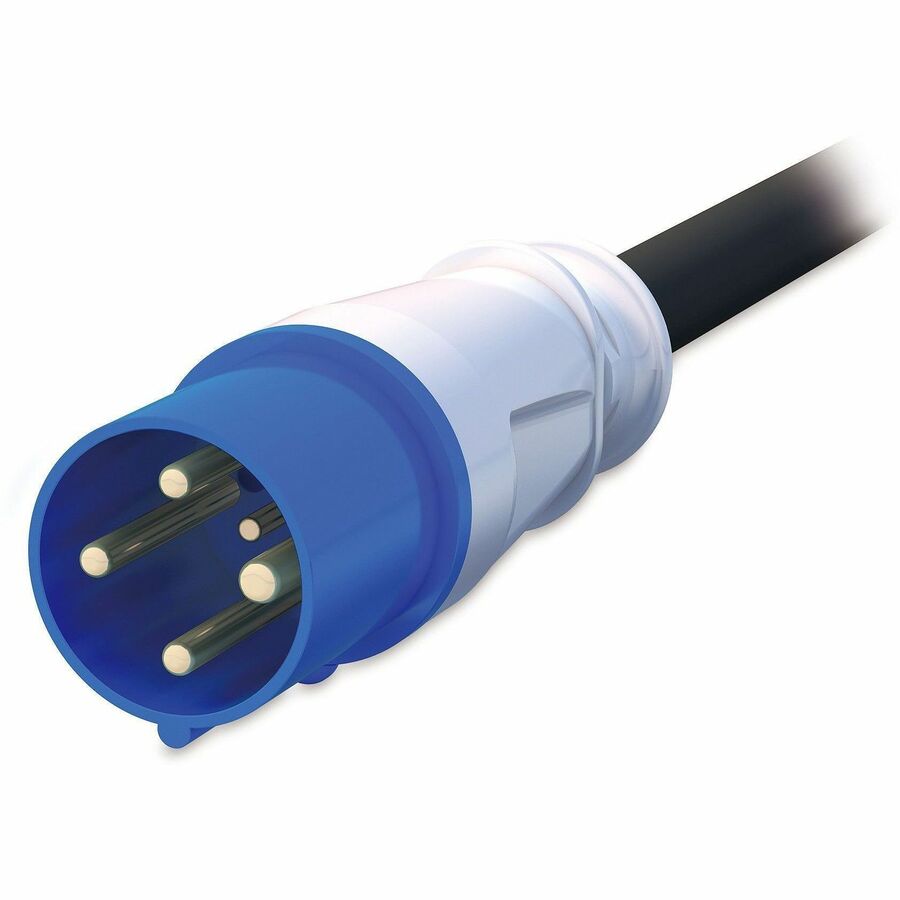

Plug/Connector Type:IEC 60309 60A 3P+PE
Receptacle Type:
- IEC 60320 C13
- IEC 60320 C19
Receptacle Detail:
- 6 x IEC 60320 C13
- 12 x IEC 60320 C19
Protection Type:Overload Protection
Input Voltage:208 V
Output Voltage:208 V AC
Power Rating (VA):17.30 kVA
Management:
Protocols:
- SNMP
- Telnet
- Web
Color Family:Black
Product Color:Black
Mounting Orientation:Vertical
Mounting Preference:No Preference
Mount Type:Rack-mountable
Placement:Side
Rack Height:0U
Number of Cord/Cable:1
Cord Length:5.97 ft
Height:72"
Width:2.2"
Depth:2"
Weight (Approximate):20.94 lb
For Country/Region:United States
Package Contents:
Additional Information:
Input Connections: IEC 309 60A 3P+PE
Certifications & Standards:cUL Listed|UL Listed|VCCI Class A
Product Take Back Program:No
REACH free of SVHC:Yes
Mercury Free:Yes
Lead Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8866_ROHS_DECLARATION&p_FileName=AP8866KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194460&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194460&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:India
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Limited Warranty:2 Year
