APC by Schneider Electric Rack Fan Tray
APC by Schneider Electric Rack Fan Tray
Regular price
$599.99
Sale price
$599.99
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description

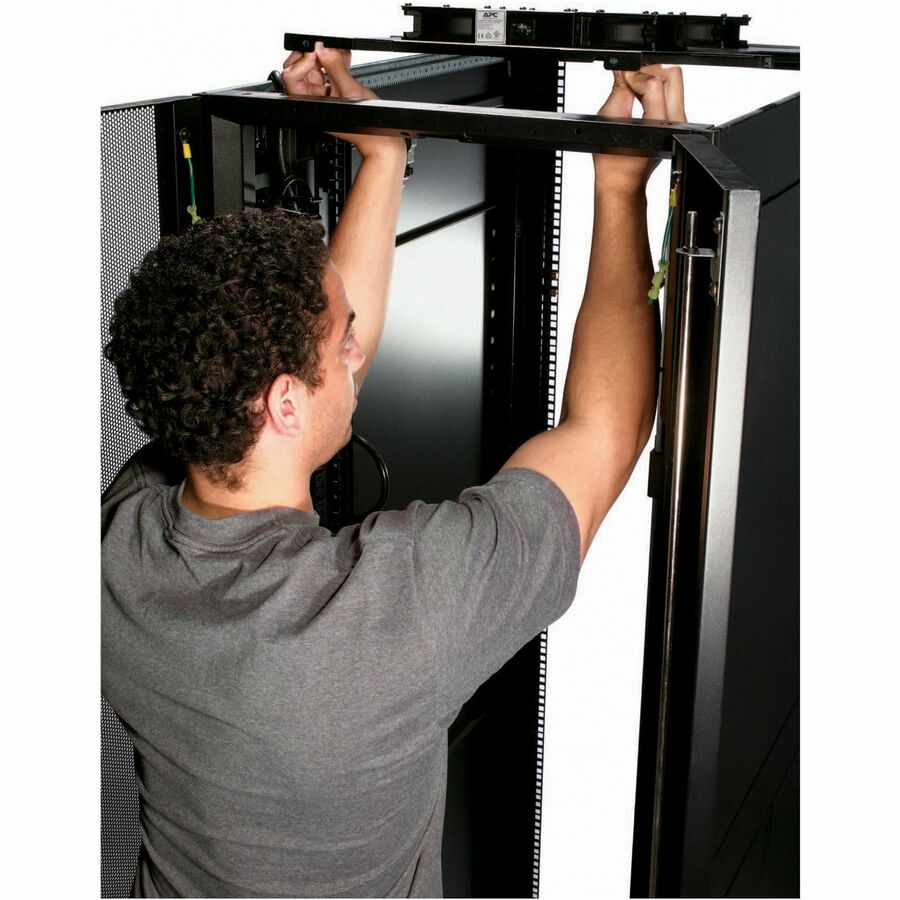

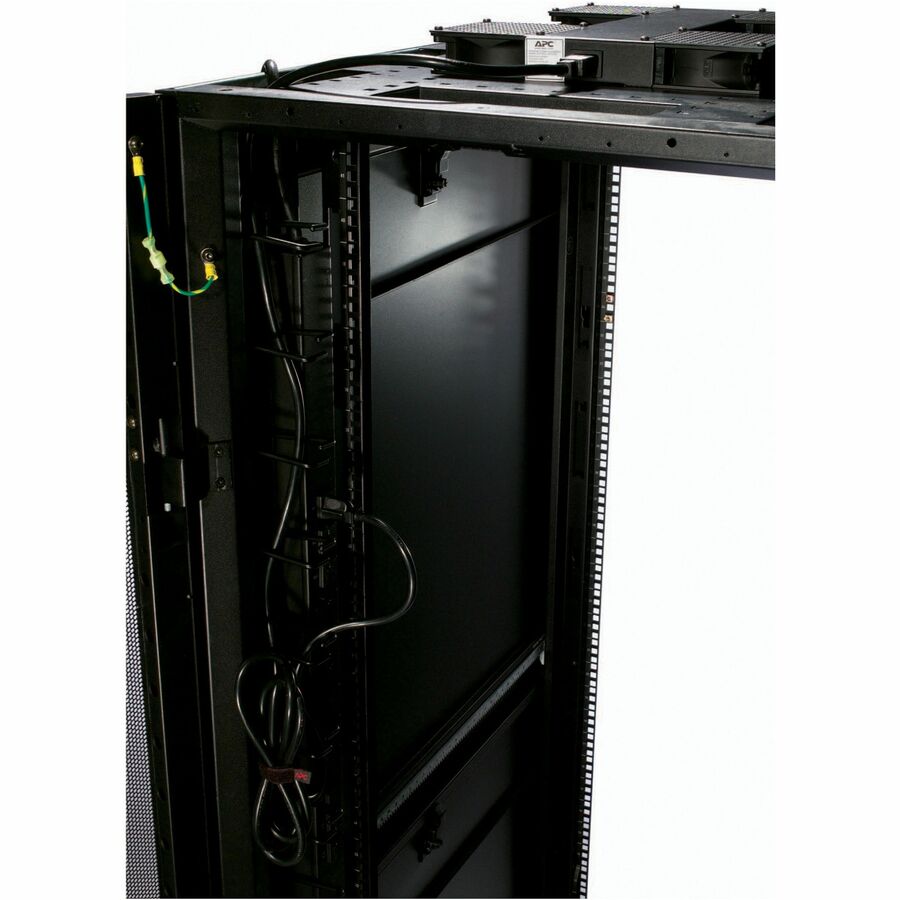

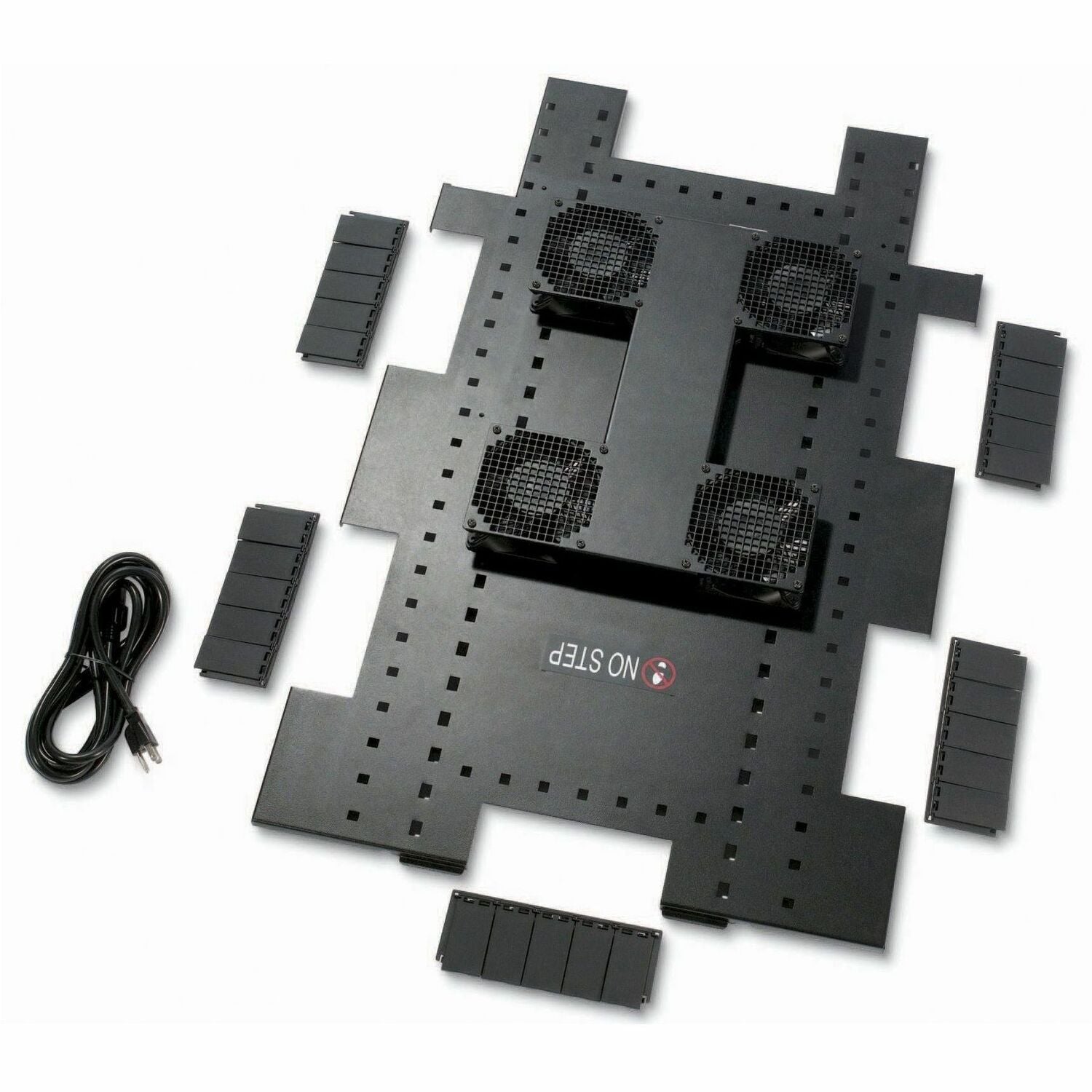

The Rack Fan Tray is a low cost solution that aids in heat removal from a Netshelter Enclosure. The system easily installs into the top of the enclosure and expels heat from the roof of the rack. Wall-mounted enclosures have the additional option of installing the rack fan tray systems in the base of the rack as well. The fan trays are designed to promote bottom to top airflow within the enclosure.
Specification
Specification
General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:ACF501
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Name:Rack Fan Tray
Marketing Information:
Packaged Quantity:1 Each
Product Type:Fan Tray
Manufacturer:Schneider Electric SA
Manufacturer Part Number:ACF501
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Name:Rack Fan Tray
Marketing Information:
The Rack Fan Tray is a low cost solution that aids in heat removal from a Netshelter Enclosure. The system easily installs into the top of the enclosure and expels heat from the roof of the rack. Wall-mounted enclosures have the additional option of installing the rack fan tray systems in the base of the rack as well. The fan trays are designed to promote bottom to top airflow within the enclosure.
Packaged Quantity:1 Each
Product Type:Fan Tray
Technical Information
Maximum Air Flow:440 CFM
Maximum Noise Level (A-Weighted):51 dB(A)
Receptacle Type:NEMA 5-15P
Maximum Air Flow:440 CFM
Maximum Noise Level (A-Weighted):51 dB(A)
Receptacle Type:NEMA 5-15P
Power Description
Input Voltage:115 V AC
Input Voltage:115 V AC
Physical Characteristics
Color Family:Black
Product Color:Black
Height:2.4"
Width:22.6"
Depth:35.2"
Weight (Approximate):18.54 lb
Color Family:Black
Product Color:Black
Height:2.4"
Width:22.6"
Depth:35.2"
Weight (Approximate):18.54 lb
Miscellaneous
Package Contents:Rack Fan Tray Installation guide
Additional Information:
Certifications & Standards:PSE
Compatibility:
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=758484&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=758484&lang=en-us
REACH free of SVHC:Yes
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Package Contents:
Additional Information:
Cools by exhausting heat out of the roof of the rack
Certifications & Standards:PSE
Compatibility:
NetShelter SX 600mm Enclosures
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=758484&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=758484&lang=en-us
REACH free of SVHC:Yes
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:2 Year
Additional Warranty Information:2 años reparar o reemplazar
Limited Warranty:2 Year
Additional Warranty Information:2 años reparar o reemplazar
