General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP8760
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Model:AP8760
Product Name:Power Interconnect Cord
Marketing Information:

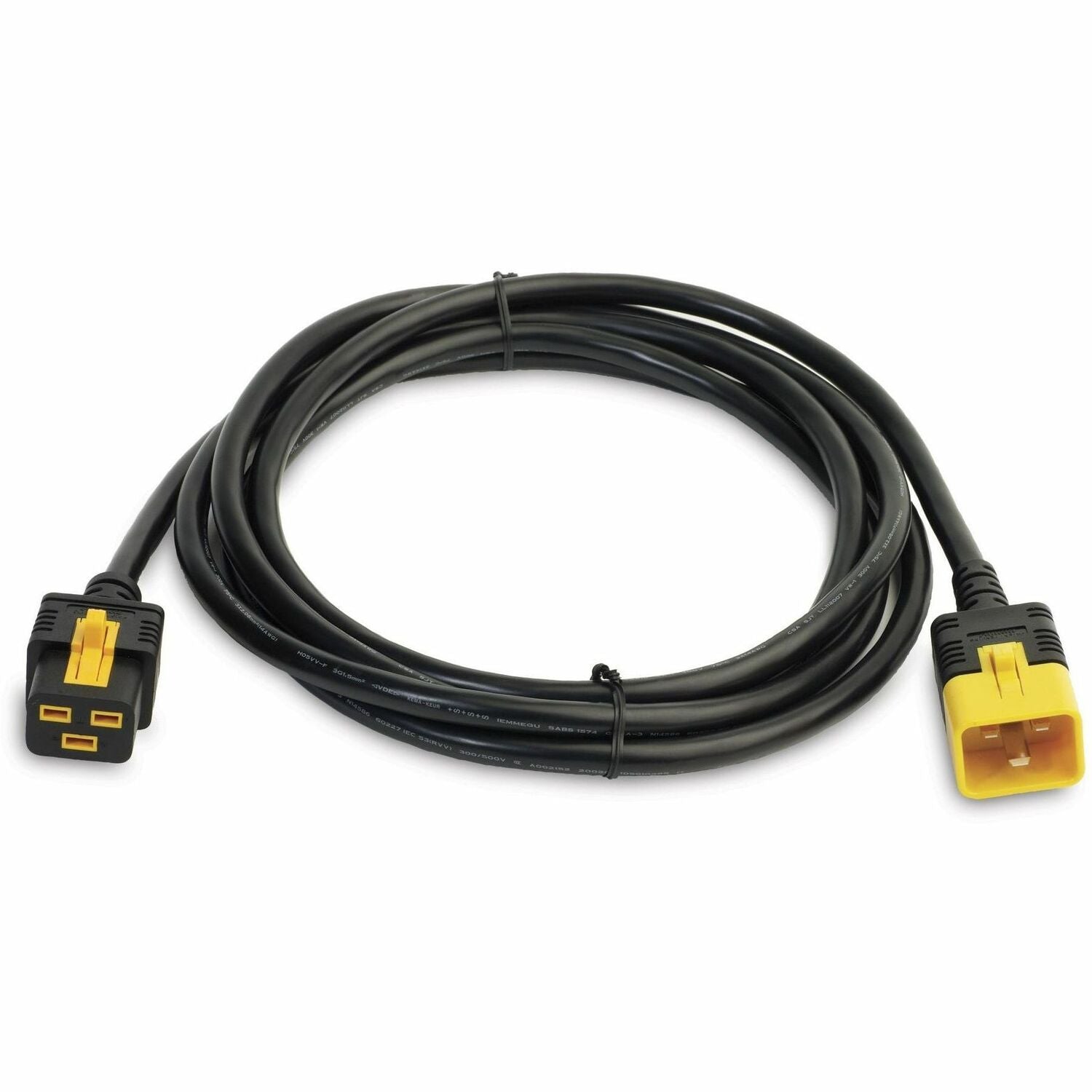

AP8760 is NetShelter range of Power Cord ensuring reliable power delivery and secure connections for your Rack PDUs and servers. This locking IEC power cord comes in cable length 9.84ft (3.0m), IEC 60320 C20 as input and IEC 60320 C19 as output receptacle. Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Packaged Quantity:1 Each
Product Type:Power Interconnect Cord

Technical Information

---

First End Connector Type:IEC 60320 C20
First End Connector Detail:1 x IEC 60320 C19
Second End Connector Type:IEC 60320 C20
Second End Connector Detail:1 x IEC 60320 C20
Device Supported:PDU

Power Description

---

Current Rating:16 A

Physical Characteristics

---

Mounting Preference:No Preference
Color Family:Black
Product Color:Black
Height:9.1"
Width:9.1"
Depth:1.8"
Cord Length:9.84 ft
Weight (Approximate):1.12 lb

Miscellaneous

---

For Country/Region:United States
Compatibility:

APC AP8000 Series Rack PDUs

Certifications & Standards:CCC|CSA|PSE|UL Listed|VDE
Product Take Back Program:No
REACH free of SVHC:Yes
Mercury Free:Yes
Lead Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8830_ROHS_DECLARATION&p_FileName=AP8830KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=149690595&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=149690595&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511004EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511004_EN
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:Singapore
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
