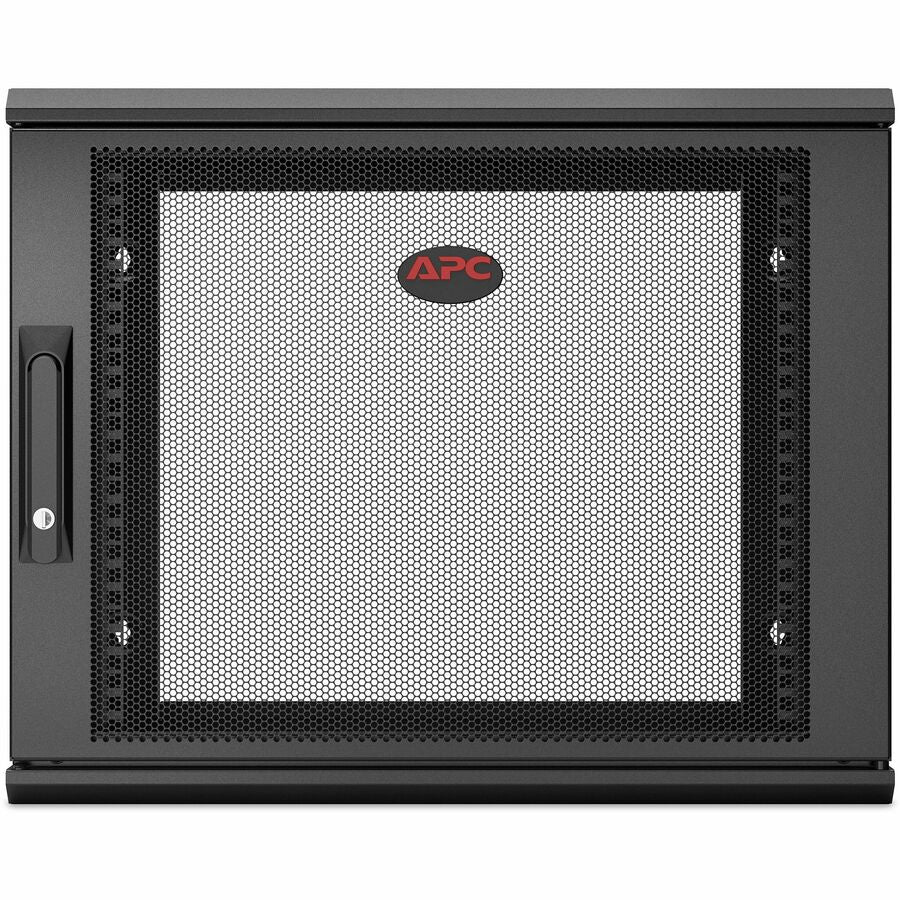

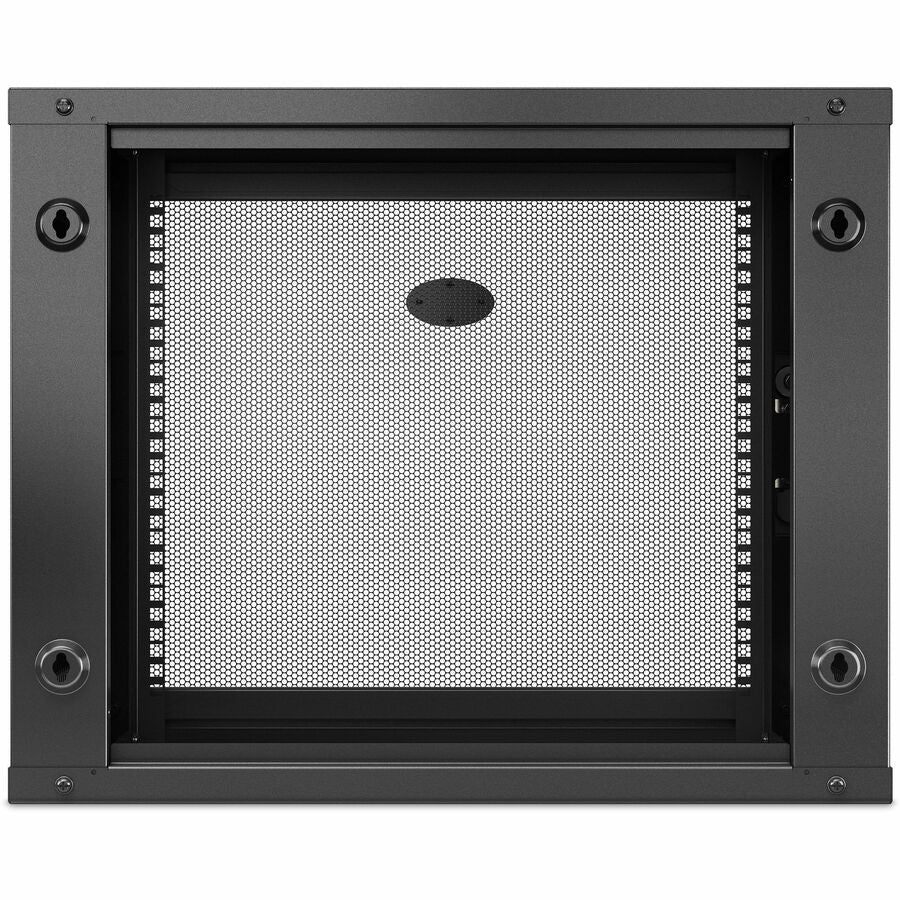

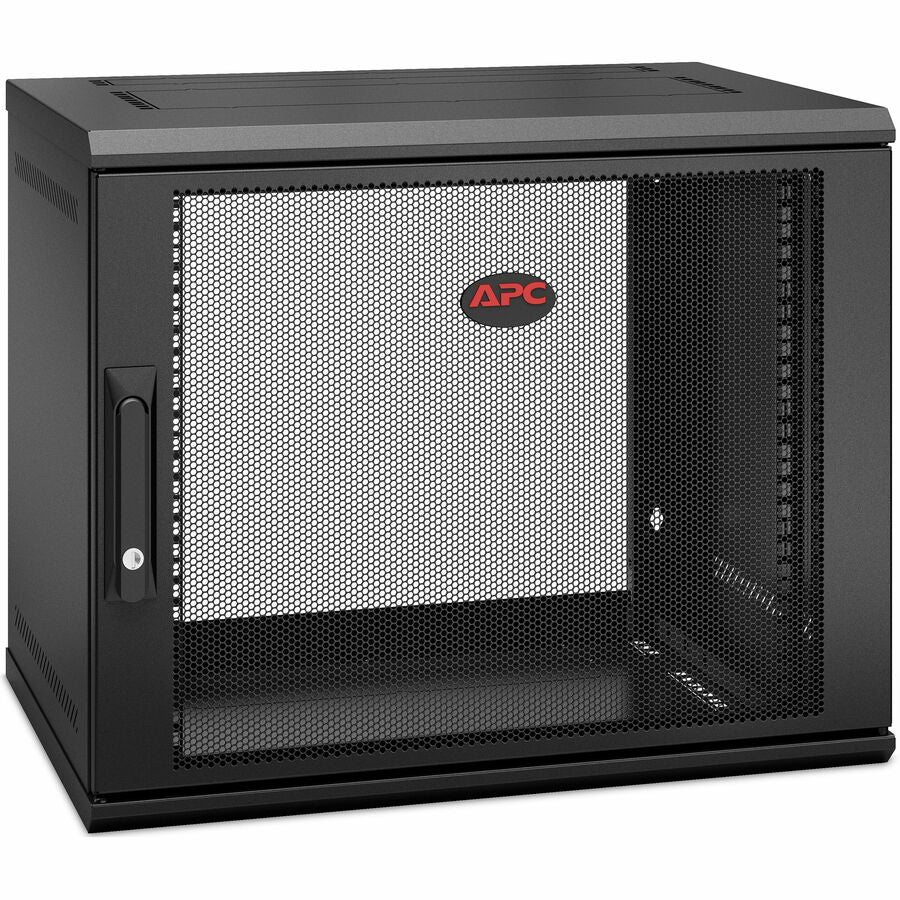

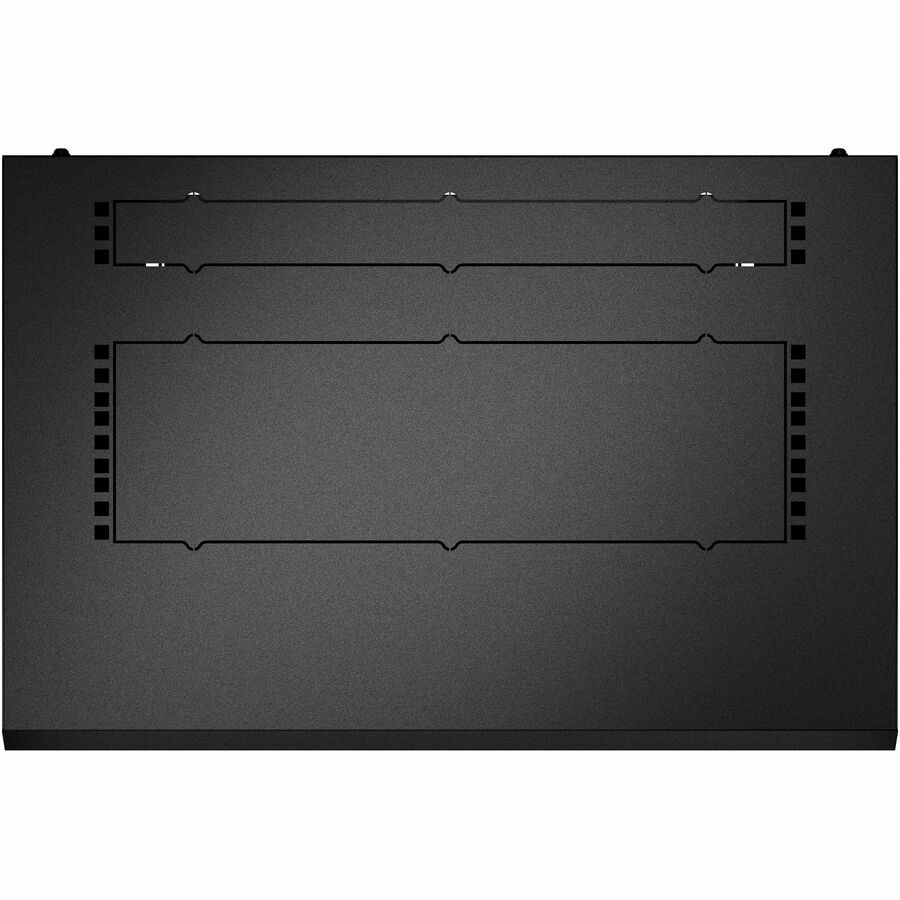

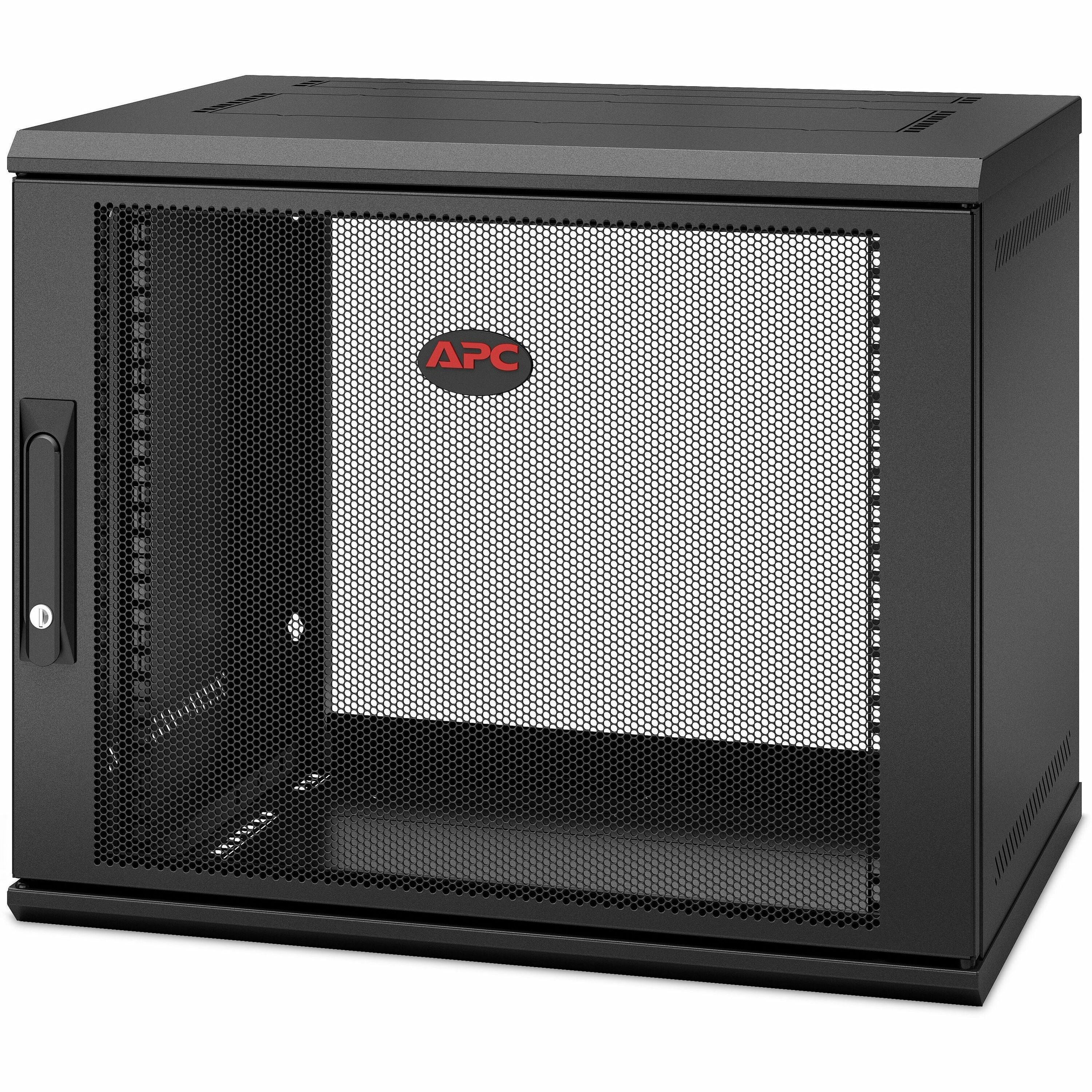

APC by Schneider Electric NetShelter WX 9U Single Hinged Wall-mount Enclosure 400mm Deep
APC by Schneider Electric NetShelter WX 9U Single Hinged Wall-mount Enclosure 400mm Deep
Overview
Overview
Description
Description
Specification
Specification
Manufacturer:Schneider Electric SA
Manufacturer Part Number:AR109SH4
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:NetShelter WX
Product Name:NetShelter WX 9U Single Hinged Wall-mount Enclosure 400mm Deep
Marketing Information:
Ideal for retail, healthcare, and educational facilities, this wall mount rack offers an efficient solution for deploying server and networking equipment for edge computing applications. This rack enclosure is wall mountable, ideal for areas with limited floor space, and is designed specifically for servers and network switches and patch panels. The cabinet's door is reversible and is compatible with APC's Netbotx security upgrade to provide remote access, video surveillance, and environmental monitoring (sold separately). Optional 120V fan tray can be top or bottom mounted (sold separately) Both the top and bottom feature knockouts of 1/2U mounting space for accessories. And several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 6U Wall mount cabinet, mounting depth range of 2.87 to 20.8 inches, 200lb weight capacity, 19"" rack width, ships fully assembled, ventilated with accessory integration options, 5 year APC warranty.
Packaged Quantity:1 Each
Product Type:Rack Cabinet
Application/Usage:
- Networking
- Airflow System
Mounting Preference:No Preference
Form Factor:Wall Mountable
Color Family:Black
Product Color:Black
Static/Stationary Weight Capacity:200.42 lb
Height:19.1"
Width:23.6"
Depth:15.7"
Weight (Approximate):28.70 lb
Rack Height:9U
Rack Width:19"
Rack Depth:12.95"
For Country/Region:United States
Compatibility:
Side-to-Side Airflow
Certifications & Standards:Free of Substances of Very High Concern above the threshold
Assembly Required:No
Product Take Back Program:No
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR109SH4_ROHS_DECLARATION&p_FileName=AR109SH4KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500387&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500387&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008_EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN
REACH free of SVHC:Yes
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Limited Warranty:5 Year
