APC by Schneider Electric Netshelter SX Roof Fan Tray - 1 Pack
APC by Schneider Electric Netshelter SX Roof Fan Tray - 1 Pack
Estimated Lead Time: Ships in 3-5 Bus Days
Regular price
$559.99
Sale price
$559.99
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description

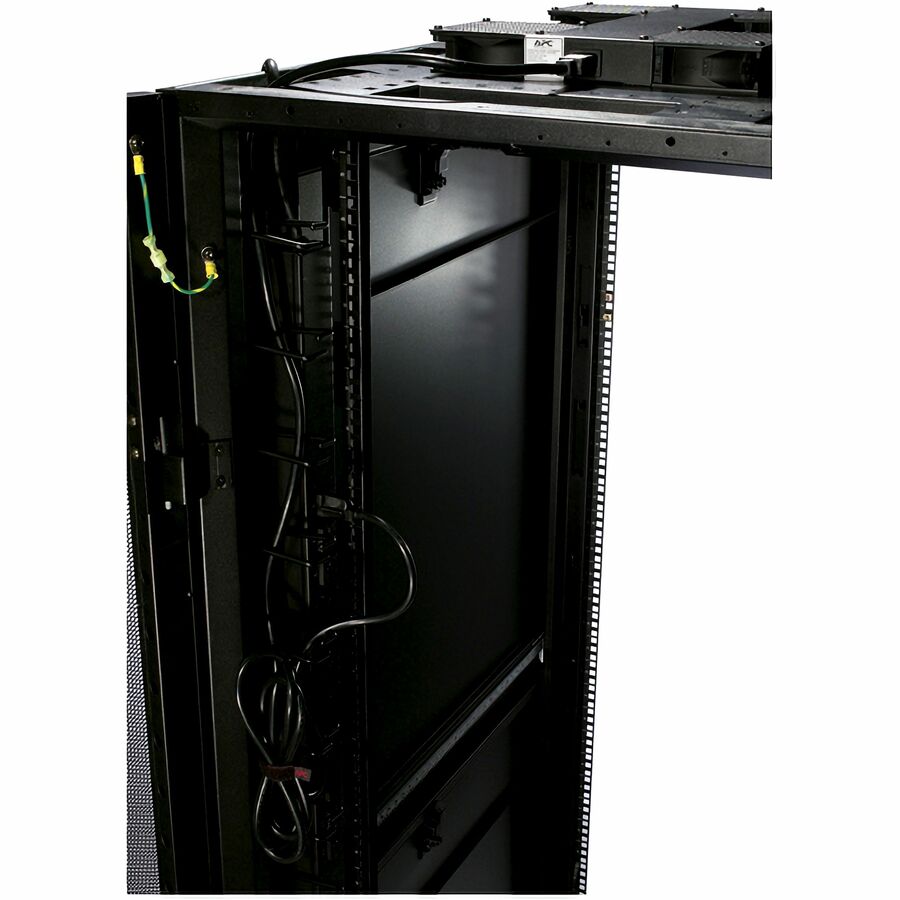

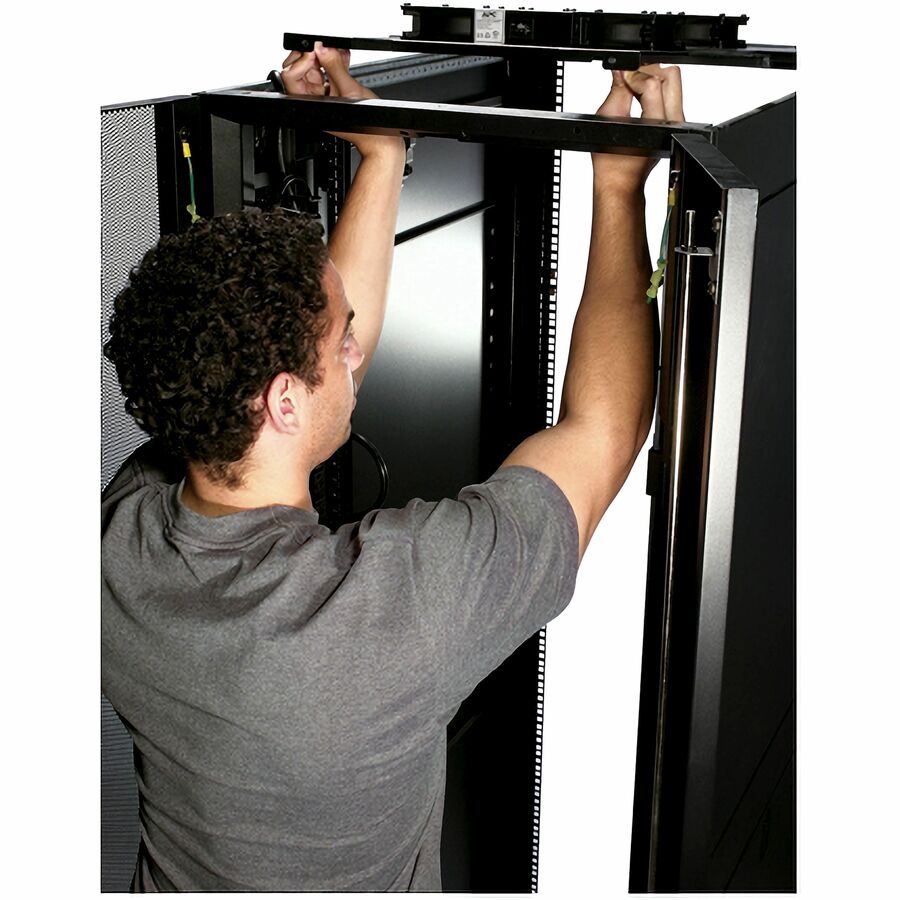

The Rack Fan Tray is a low cost solution that aids in heat removal from a Netshelter Enclosure. The system easily installs into the top of the enclosure and expels heat from the roof of the rack. Wall-mounted enclosures have the additional option of installing the rack fan tray systems in the base of the rack as well. The fan trays are designed to promote bottom to top airflow within the enclosure.
Specification
Specification
General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:ACF502
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Model:ACF502
Product Name:Netshelter SX Roof Fan Tray
Marketing Information:
Packaged Quantity:1 Each
Product Type:Cooling Fan
Manufacturer:Schneider Electric SA
Manufacturer Part Number:ACF502
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Model:ACF502
Product Name:Netshelter SX Roof Fan Tray
Marketing Information:
The Rack Fan Tray is a low cost solution that aids in heat removal from a Netshelter Enclosure. The system easily installs into the top of the enclosure and expels heat from the roof of the rack. Wall-mounted enclosures have the additional option of installing the rack fan tray systems in the base of the rack as well. The fan trays are designed to promote bottom to top airflow within the enclosure.
Packaged Quantity:1 Each
Product Type:Cooling Fan
Fan Information
Maximum Airflow:110 CFM
Airflow Details:
Maximum Airflow:110 CFM
Airflow Details:
4 x 110CFM
Power Description
Input Voltage:
Input Voltage:
- 208 V AC
- 230 V AC
Physical Characteristics
Color Family:Black
Product Color:Black
Fan Material:Plastic
Fan Height:2.36"
Fan Width:22.61"
Fan Depth:35.14"
Height:2.4"
Width:22.6"
Depth:35.2"
Weight (Approximate):18.54 lb
Color Family:Black
Product Color:Black
Fan Material:Plastic
Fan Height:2.36"
Fan Width:22.61"
Fan Depth:35.14"
Height:2.4"
Width:22.6"
Depth:35.2"
Weight (Approximate):18.54 lb
Miscellaneous

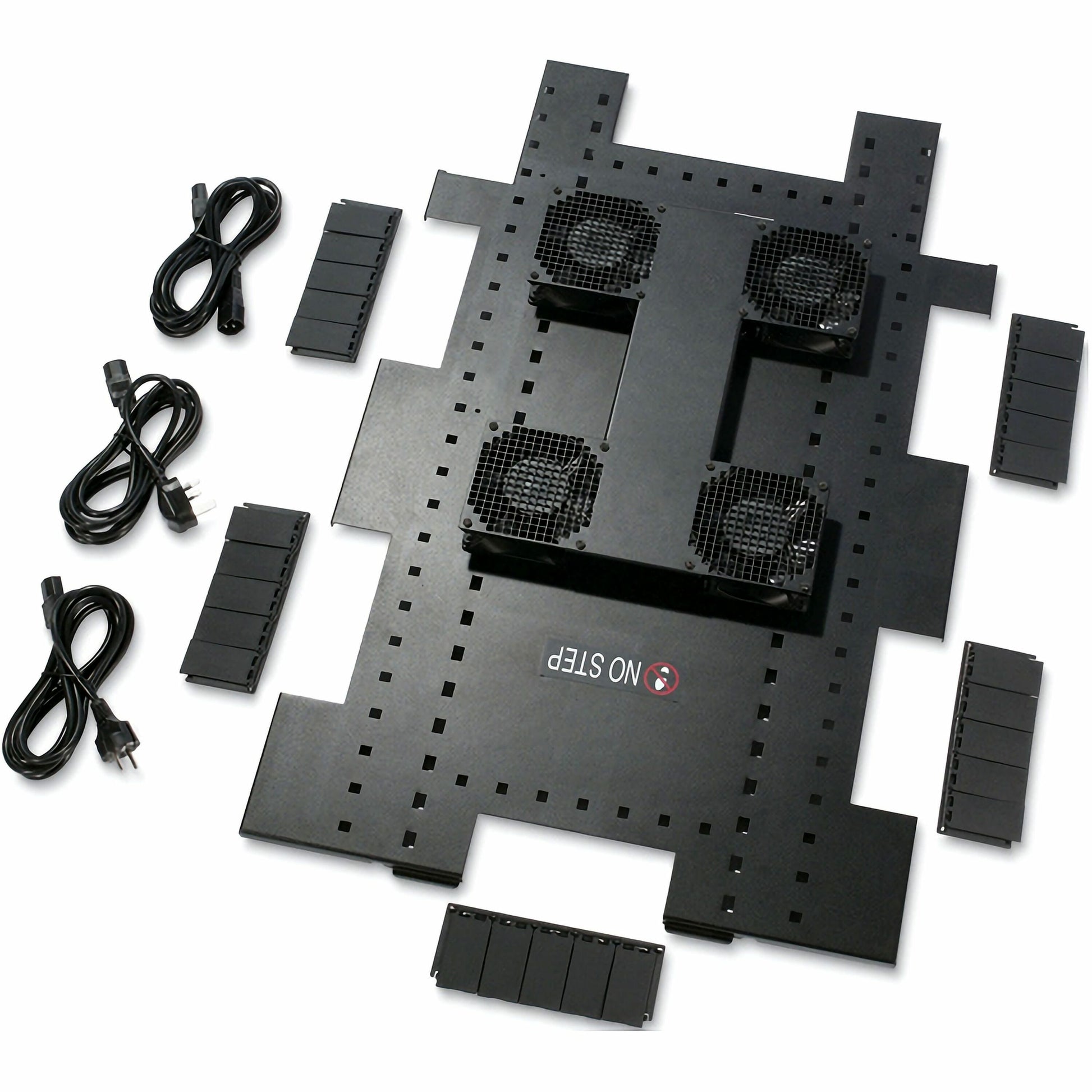

Package Contents:Netshelter SX Roof Fan Tray Installation guide
Additional Information:
Compatibility:
Application/Usage:Cabinet
Certifications & Standards:PSE|VDE
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=758486&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=758486&lang=en-us
REACH free of SVHC:Yes
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:Thailand
Package Contents:
Additional Information:
- Nominal Input Voltage: 208V, 230V
- Cord Length: 8 feet ( 2.40 meters)
- Input Frequency: 50/60 Hz
- Color: Black
- Input Connections:
- Schuko CEE 7/7P
- British BS1363A
- IEC-320 C14
- Features:
- Grommeted Edges
- Tool-less mounting
- Cable pass-through
- Ships fully assembled
- Powder coat paint finish
- Promotes Proper Airflow
- Promotes Bottom to Top Airflow
- Facilitates overhead cable management
Compatibility:
APC NetShelter SX
Application/Usage:Cabinet
Certifications & Standards:PSE|VDE
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=758486&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=758486&lang=en-us
REACH free of SVHC:Yes
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:Thailand
Warranty
Limited Warranty:2 Year
Additional Warranty Information:2 years repair or replace
Limited Warranty:2 Year
Additional Warranty Information:2 years repair or replace
