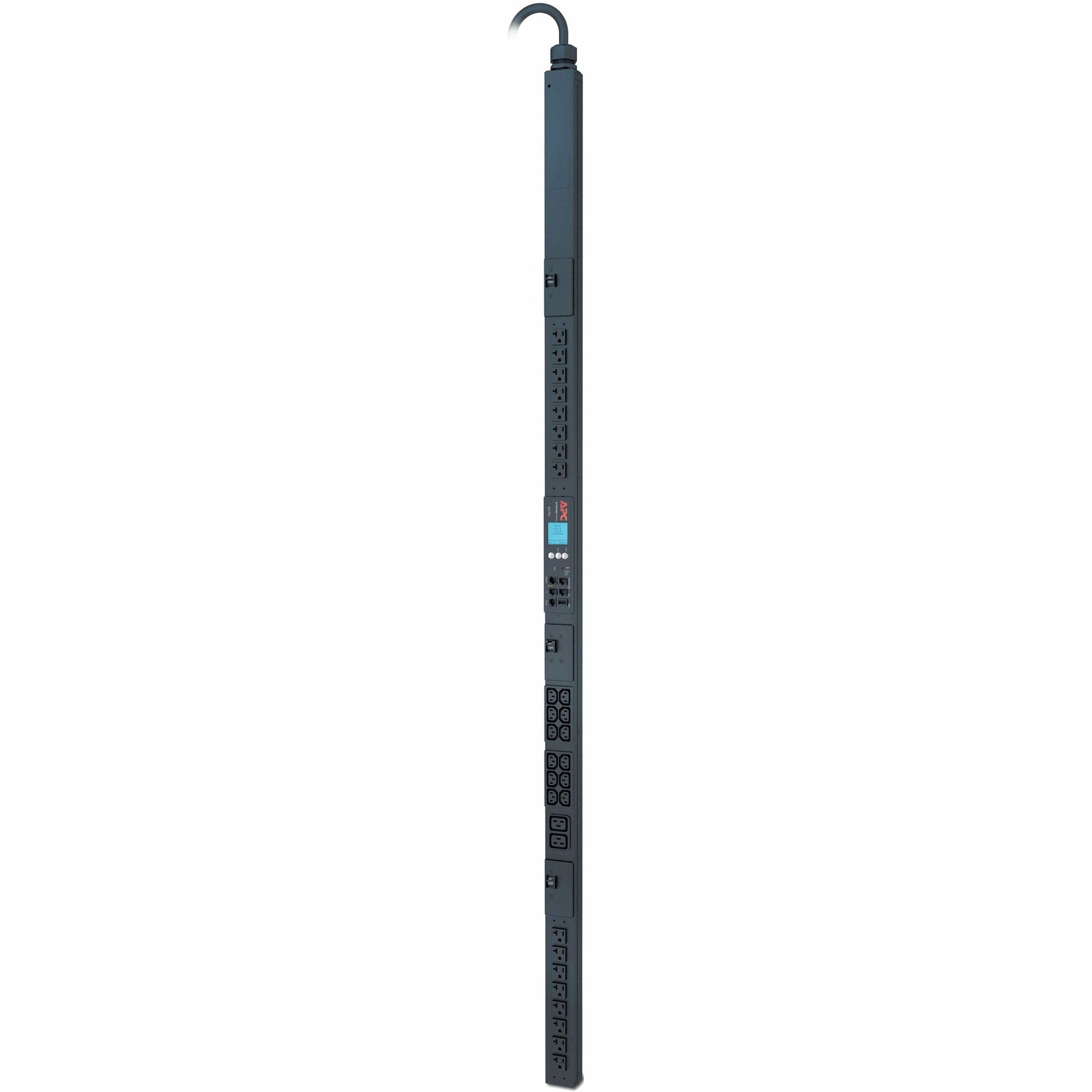

APC by Schneider Electric Metered Rack PDU, 1 Each, NEMA L14-30P, 12 x IEC 60320 C13, 16 x NEMA 5-20R, 2 x IEC 60320 C19, 120V/208V, 5760W, 9.51 ft Cord, 0U Vertical, Rack-mountable, Tower
APC by Schneider Electric Metered Rack PDU, 1 Each, NEMA L14-30P, 12 x IEC 60320 C13, 16 x NEMA 5-20R, 2 x IEC 60320 C19, 120V/208V, 5760W, 9.51 ft Cord, 0U Vertical, Rack-mountable, Tower
Regular price
$1,334.99
Sale price
$1,334.99
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Specification
Specification
General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP8870
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Name:Metered Rack PDU
Marketing Information:
Packaged Quantity:1 Each
Product Type:PDU
Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP8870
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Name:Metered Rack PDU
Marketing Information:
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Packaged Quantity:1 Each
Product Type:PDU
Technical Information
PDU Type:Metered
Plug/Connector Type:NEMA L14-30P
Receptacle Type:
Receptacle Detail:
Protection Type:
PDU Type:Metered
Plug/Connector Type:NEMA L14-30P
Receptacle Type:
- NEMA 5-20R
- IEC 60320 C19
- IEC 60320 C13
Receptacle Detail:
- 12 x IEC 60320 C13
- 16 x NEMA 5-20R
- 2 x IEC 60320 C19
Protection Type:
- Circuit Protection
- Overload Protection
Power Description
Input Voltage:
Input Voltage Range:120 V AC - 230 V AC
Output Voltage:120 V AC
Power Rating (VA):5760 VA
Input Current:30 A
Circuit Breaker:Yes
Input Voltage:
- 120 V
- 208 V
Input Voltage Range:120 V AC - 230 V AC
Output Voltage:120 V AC
Power Rating (VA):5760 VA
Input Current:30 A
Circuit Breaker:Yes
Management
Management:
Management:
- Web
- SNMP
- Telnet
Physical Characteristics
Color Family:Black
Product Color:Black
Mounting Orientation:Vertical
Mounting Preference:No Preference
Mount Type:Rack-mountable
Placement:Side
Form Factor:Tower
Rack Height:0U
Number of Cord/Cable:1
Cord Length:9.51 ft
Height:70.5"
Width:2.2"
Depth:1.7"
Weight (Approximate):14.07 lb
Color Family:Black
Product Color:Black
Mounting Orientation:Vertical
Mounting Preference:No Preference
Mount Type:Rack-mountable
Placement:Side
Form Factor:Tower
Rack Height:0U
Number of Cord/Cable:1
Cord Length:9.51 ft
Height:70.5"
Width:2.2"
Depth:1.7"
Weight (Approximate):14.07 lb
Miscellaneous
For Country/Region:United States
Package Contents:Metered Rack PDU Installation guide Rack mounting brackets Safety guide Serial configuration cable
Certifications & Standards:cUL Listed|UL Listed
Product Take Back Program:No
REACH free of SVHC:Yes
Mercury Free:Yes
Lead Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8870_ROHS_DECLARATION&p_FileName=AP8870KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134899&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134899&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:India
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
For Country/Region:United States
Package Contents:
Certifications & Standards:cUL Listed|UL Listed
Product Take Back Program:No
REACH free of SVHC:Yes
Mercury Free:Yes
Lead Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8870_ROHS_DECLARATION&p_FileName=AP8870KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134899&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134899&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:India
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:2 Year
Limited Warranty:2 Year
