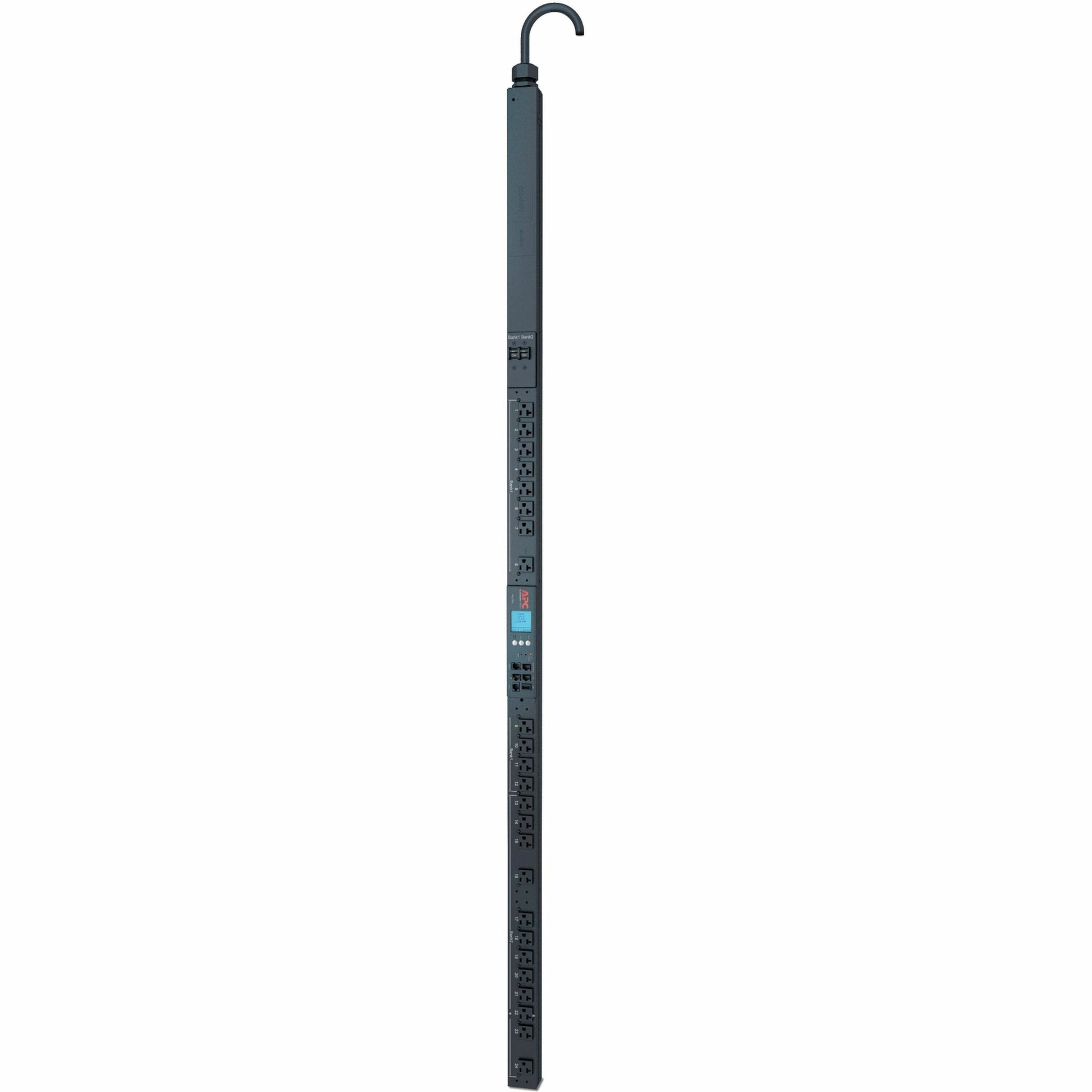

APC by Schneider Electric Metered-by-Outlet with Switching Rack PDU
APC by Schneider Electric Metered-by-Outlet with Switching Rack PDU
Overview
Overview
Description
Description
Specification
Specification
Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP8632
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Name:Metered-by-Outlet with Switching Rack PDU
Marketing Information:
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules.
Packaged Quantity:1 Each
Product Type:PDU
PDU Type:Metered-by-Outlet
Plug/Connector Type:NEMA L5-30P
Receptacle Type:NEMA 5-20R
Receptacle Detail:24 x NEMA 5-20R
Protection Type:Overload Protection
Input Voltage:
- 100 V
- 120 V
Output Voltage:
- 100 V AC
- 120 V AC
Power Rating (VA):2880 VA
Input Current:30 A
Management:
- Web
- SNMP
- Telnet
Color Family:Black
Product Color:Black
Mounting Orientation:Vertical
Mounting Preference:No Preference
Mount Type:Rack-mountable
Placement:Side
Form Factor:Tower
Rack Height:0U
Number of Cord/Cable:1
Cord Length:9.51 ft
Height:72"
Width:2.2"
Depth:2"
Weight (Approximate):17.75 lb
For Country/Region:United States
Package Contents:
Certifications & Standards:cUL Listed|PSE|UL Listed
Product Take Back Program:No
REACH free of SVHC:Yes
Mercury Free:Yes
Lead Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8632_ROHS_DECLARATION&p_FileName=AP8632KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134854&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134854&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:India
Environmentally Friendly:Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty:2 Year
