General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP9613
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric

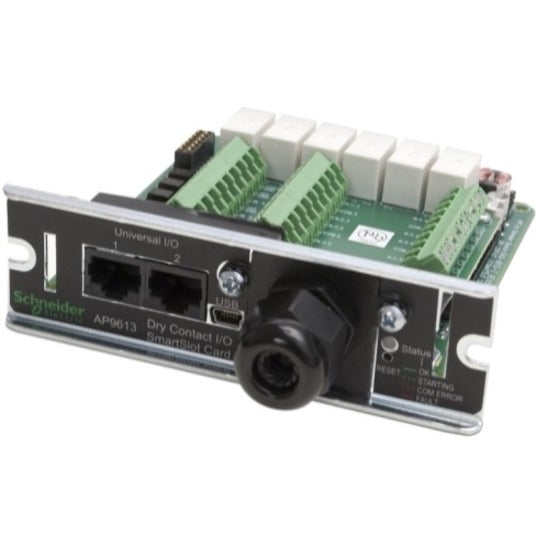

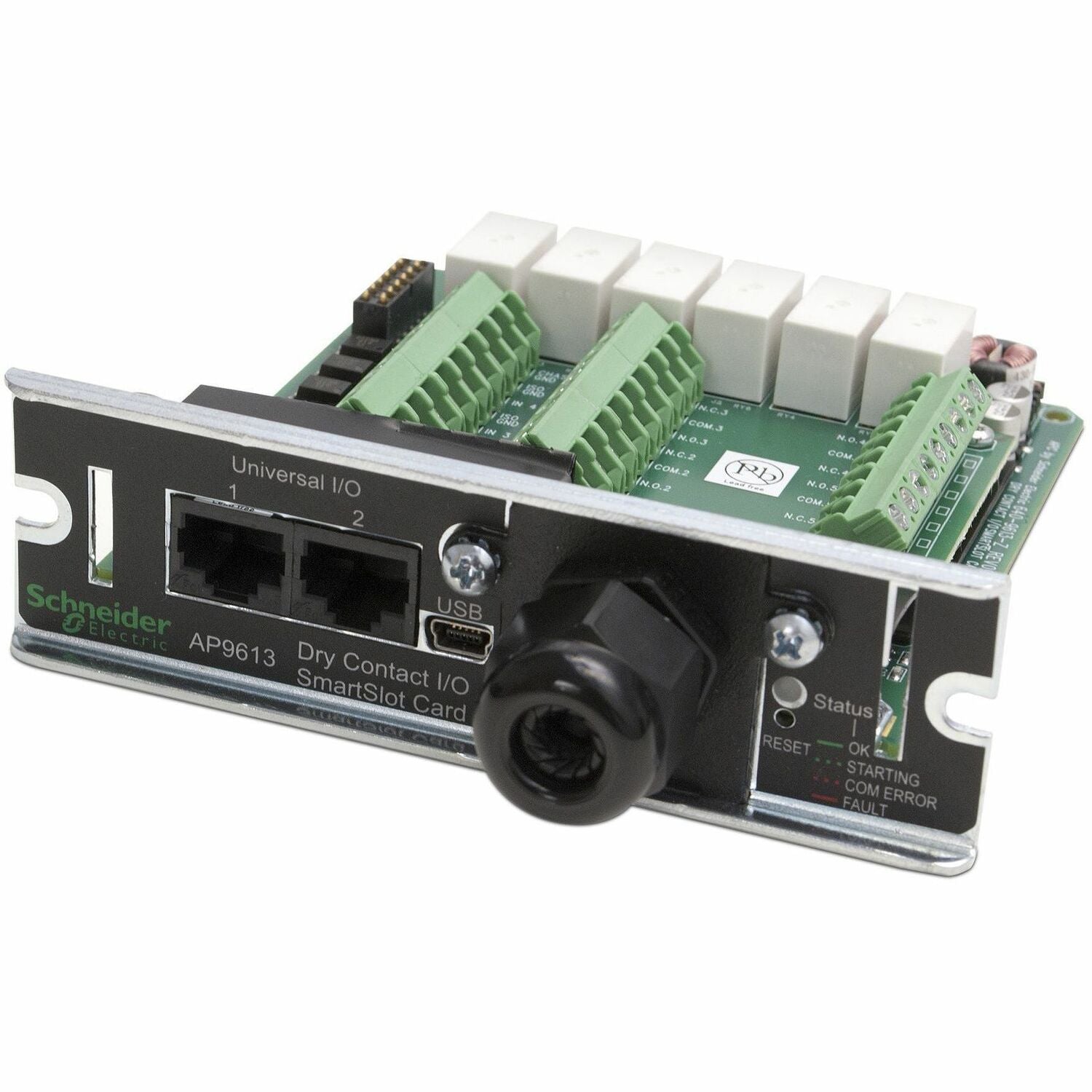

Product Name:Dry Contact I/O SmartSlot Card
Marketing Information:

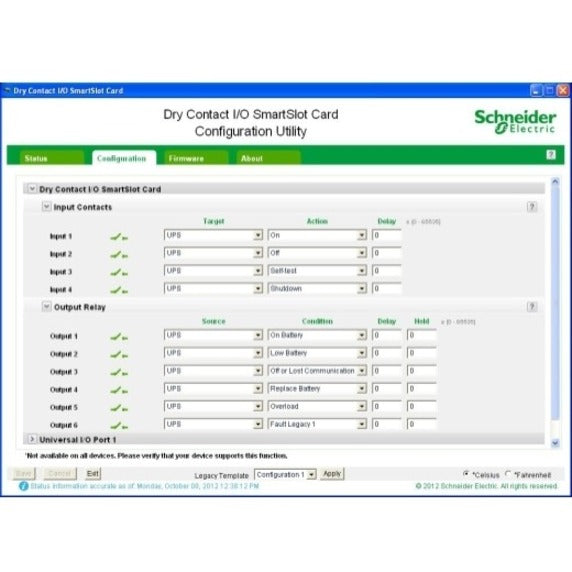

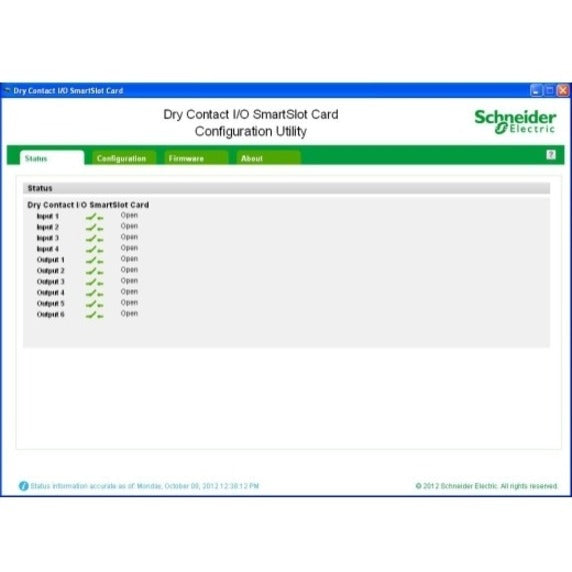

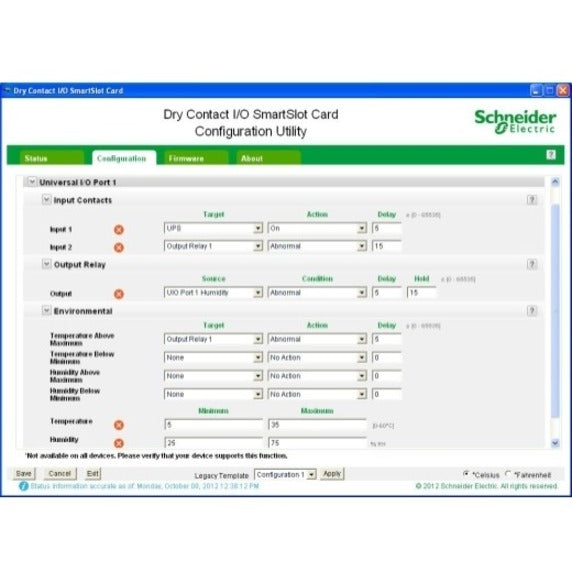

The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included USB cable to the Card and a PC to use the Configuration Utility user interface. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.

Packaged Quantity:1 Each
Product Type:UPS Management Adapter

Technical Information

---

Proprietary Slot Type:SmartSlot

Physical Characteristics

---

Color Family:Black
Product Color:Black
Mounting Preference:No Preference
Rack Height:0U
Height:1.5"
Width:4.8"
Depth:4.5"
Weight (Approximate):7.36 oz

Miscellaneous

---

For Country/Region:United States
Package Contents:

Dry Contact I/O SmartSlot Card

USB cable

User manual

Additional Information:

• 6 x Configurable Output Relays
• Optional Dry Contact I/O Accessory
• Expandable Input and Output Ports
• 4 x Configurable Input Contacts
• Compatible with SmartSlot enabled UPSs
• Input Output Interaction
• Configuration Utility

Certifications & Standards:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Optimized Energy Efficiency:Yes
Product Take Back Program:No
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP9613_ROHS_DECLARATION&p_FileName=AP9613KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384164514&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384164514&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512011_V1
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512011_EN
REACH free of SVHC:No
Lead Free:Yes
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
