General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP9570
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Basic Rack

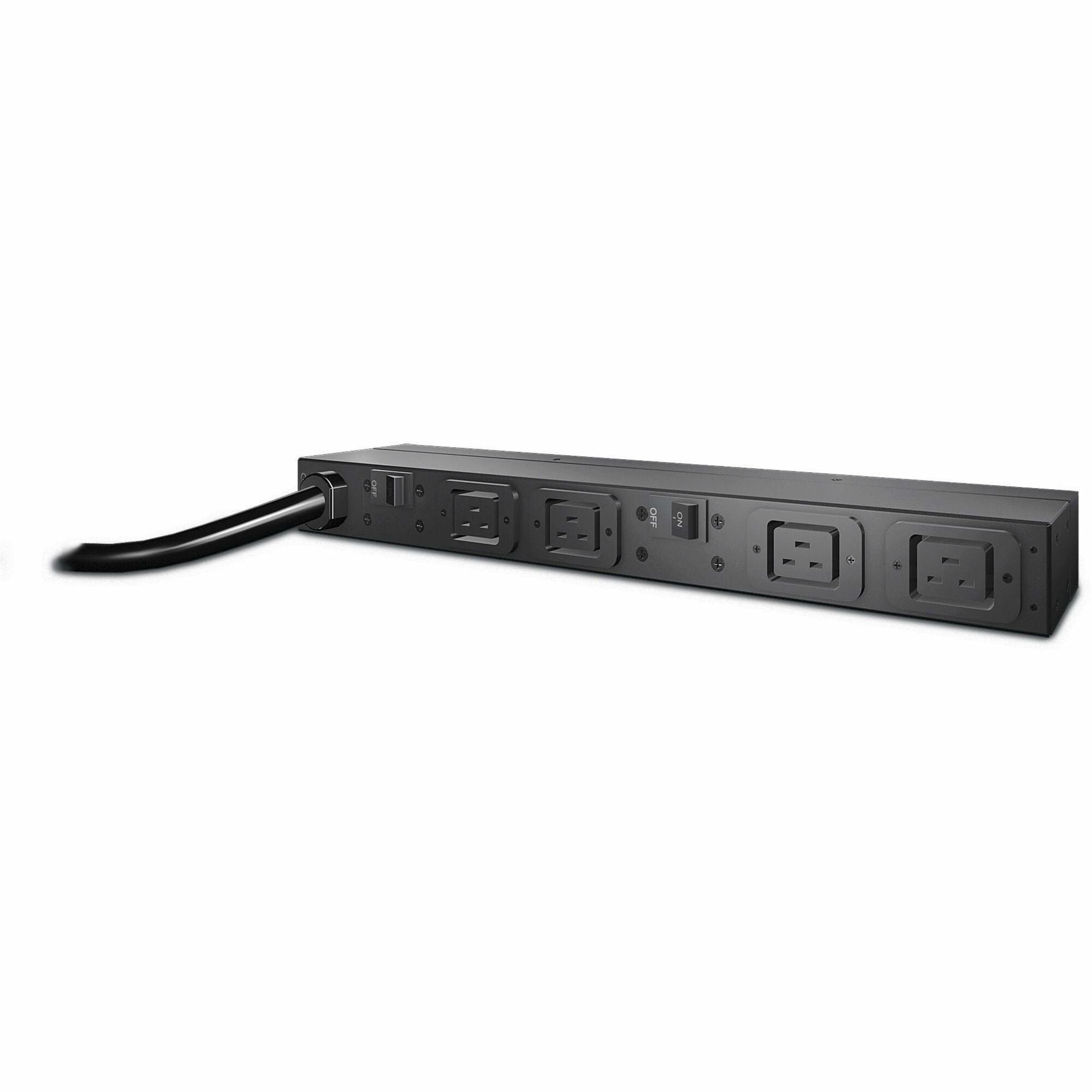

Product Name:Basic Rack 6.24kVA PDU
Marketing Information:

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 30A and operates at 208V. The PDU features 4 IEC 60320 C19 outlets, providing connections for high-power IT equipment. It includes a 10-foot power cord with a NEMA L6-30P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.

Packaged Quantity:1 Each
Product Type:PDU

Technical Information

---

PDU Type:Basic
Plug/Connector Type:NEMA L6-30P
Receptacle Type:IEC 60320 C19
Receptacle Detail:4 x IEC 60320 C19
Protection Type:Overload Protection

Power Description

---

Input Voltage:

• 200 V
• 208 V
• 230 V

Input Voltage Range:208 V AC - 240 V AC
Output Voltage:208 V AC
Power Rating (VA):6240 VA
Circuit Breaker:Yes

Physical Characteristics

---

Color Family:Black
Product Color:Black
Mounting Orientation:Horizontal
Mounting Preference:No Preference
Mount Type:Rack-mountable
Placement:

• Front
• Rear

Rack Height:1U
Cord Length:9.84 ft
Height:1.7"
Width:17.6"
Depth:2.5"
Weight (Approximate):6.02 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

Basic Rack 6.24kVA PDU

Installation guide

Rack mounting brackets

Certifications & Standards:cUL Listed|METI Denan|PSE|UL Listed
Product Take Back Program:No
REACH free of SVHC:Yes
Lead Free:Yes
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759578&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759578&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
Parts Warranty/Labor:2 Year
