General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP7581
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Basic Rack

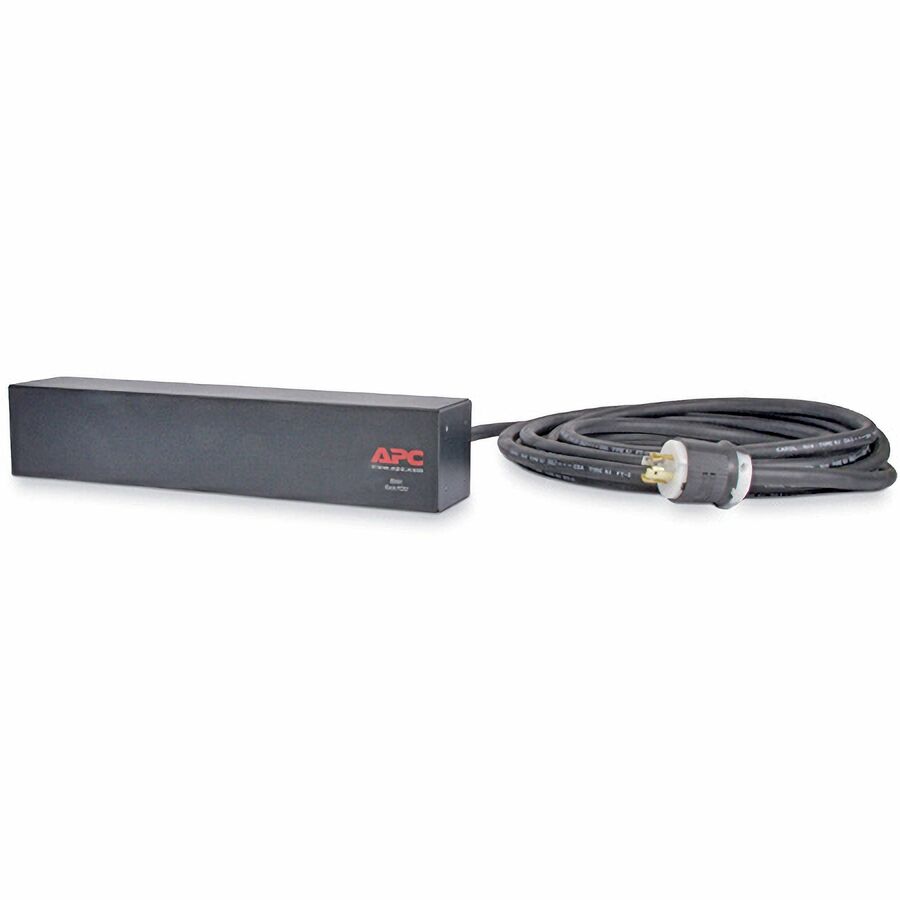

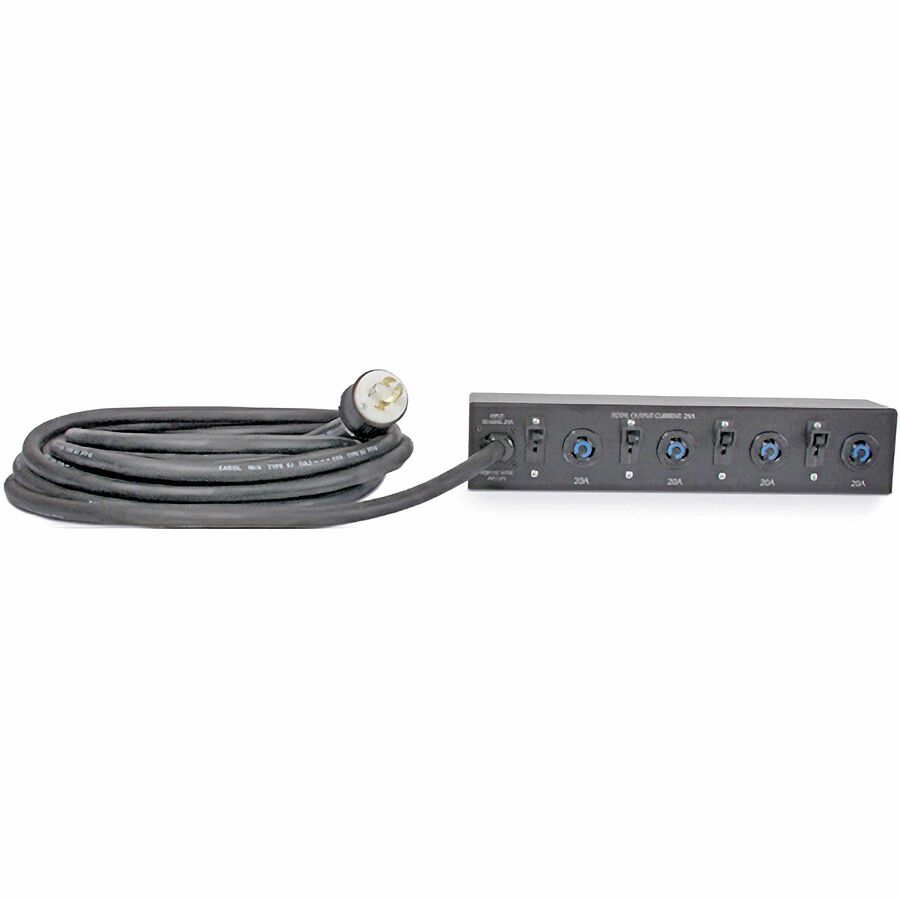

Product Name:Basic Rack 4.992kVA Extender PDU
Marketing Information:

It is a basic rack PDU with a 2U horizontal mounting design. It supports a maximum input current of 30A and operates at 200V and 208V. The PDU features 4 NEMA L6-20R outlets, providing connections for IT equipment. It includes a 28-foot power cord with a NEMA L14-30P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.

Packaged Quantity:1 Each
Product Type:PDU

Technical Information

---

PDU Type:Basic
Plug/Connector Type:NEMA L14-30P
Receptacle Type:NEMA L6-20R
Receptacle Detail:4 x NEMA L6-20R

Power Description

---

Input Voltage:

• 200 V
• 208 V

Input Voltage Range:120 V AC - 208 V AC
Output Voltage:208 V AC
Power Rating (VA):4992 VA
Circuit Breaker:Yes

Physical Characteristics

---

Color Family:Black
Product Color:Black
Mounting Orientation:Horizontal
Mounting Preference:Lower
Mount Type:Rack-mountable
Placement:

• Front
• Rear

Rack Height:2U
Cord Length:27.99 ft
Height:3.5"
Width:17.2"
Depth:3.5"
Weight (Approximate):14.02 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

Basic Rack 4.992kVA Extender PDU

Installation guide

Rack mounting brackets

Certifications & Standards:cUL Listed|METI Denan|UL Listed
Product Take Back Program:No
REACH free of SVHC:Yes
Lead Free:Yes
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759126&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759126&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:India
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
Parts Warranty/Labor:2 Year
