General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP7532
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Basic Rack

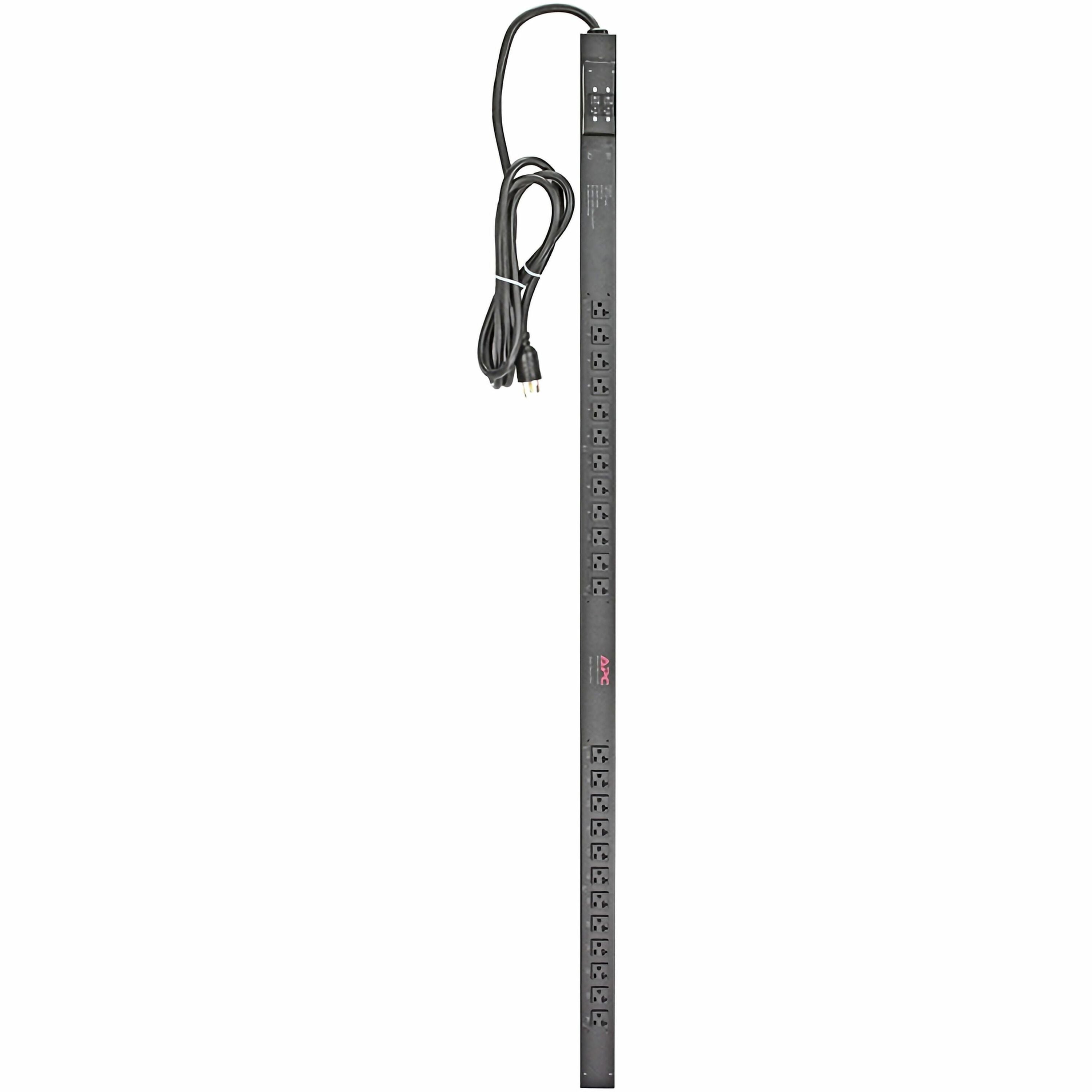

Product Name:Basic Rack 2880VA PDU
Marketing Information:

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 30A and operates at 120V. The PDU features 24 NEMA 5-20R outlets, providing ample connections for IT equipment. It includes a 10-foot power cord with a NEMA L5-30P plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.

Packaged Quantity:1 Each
Product Type:PDU

Technical Information

---

PDU Type:Basic
Plug/Connector Type:NEMA L5-30P
Receptacle Type:NEMA 5-20R
Receptacle Detail:24 x NEMA 5-20R

Power Description

---

Input Voltage:

• 100 V
• 120 V

Output Voltage:120 V AC
Power Rating (VA):2880 VA

Physical Characteristics

---

Color Family:Black
Product Color:Black
Mounting Orientation:Vertical
Mounting Preference:No Preference
Mount Type:Rack-mountable
Placement:Side
Rack Height:0U
Cord Length:9.84 ft
Height:63.7"
Width:2.2"
Depth:1.7"
Weight (Approximate):12.28 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

Basic Rack 2880VA PDU

Installation guide

Rack mounting brackets

Toolless mounting kit

Additional Information:

• Single input power source
• Vertical Mounting Capabilities

Certifications & Standards:cUL Listed|UL Listed
Product Take Back Program:No
REACH free of SVHC:Yes
Lead Free:Yes
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759084&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759084&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:India
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
Parts Warranty/Labor:2 Year
