General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP9551
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Basic Rack

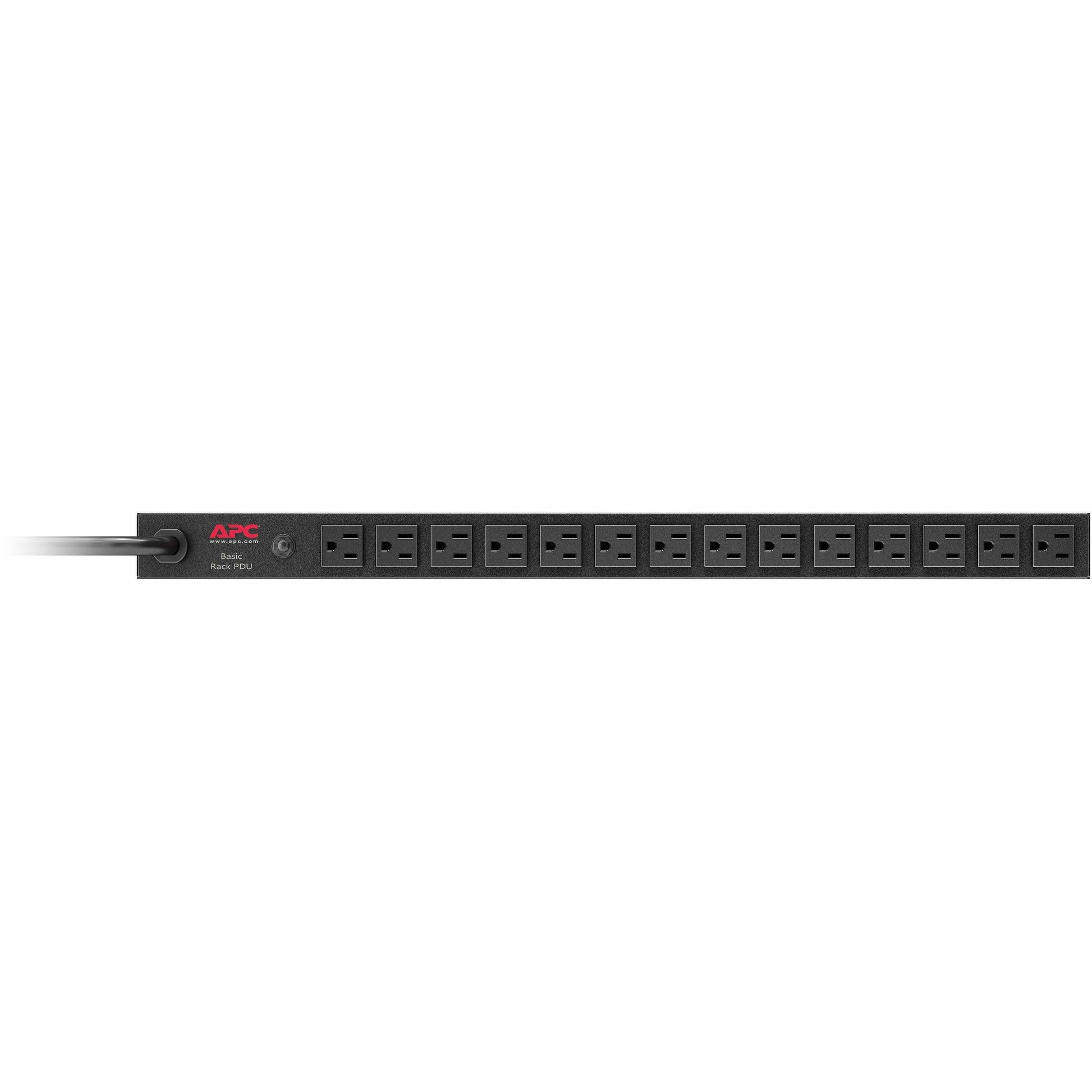

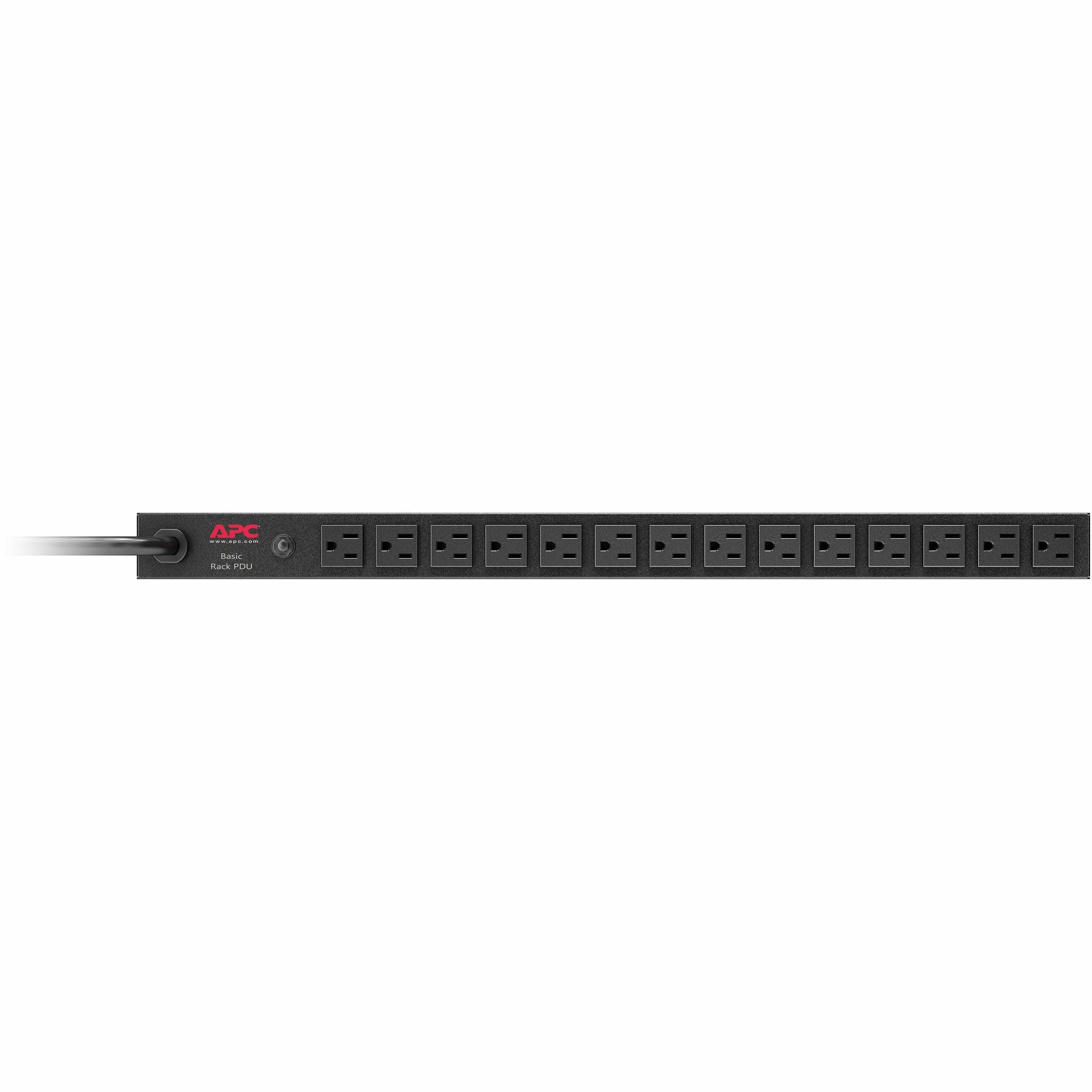

Product Name:Basic Rack 2400VA PDU
Marketing Information:

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 120V. The PDU features 14 NEMA 5-15R outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L5-20P plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a toolless mounting kit.

Packaged Quantity:1 Each
Product Type:PDU

Technical Information

---

PDU Type:Basic

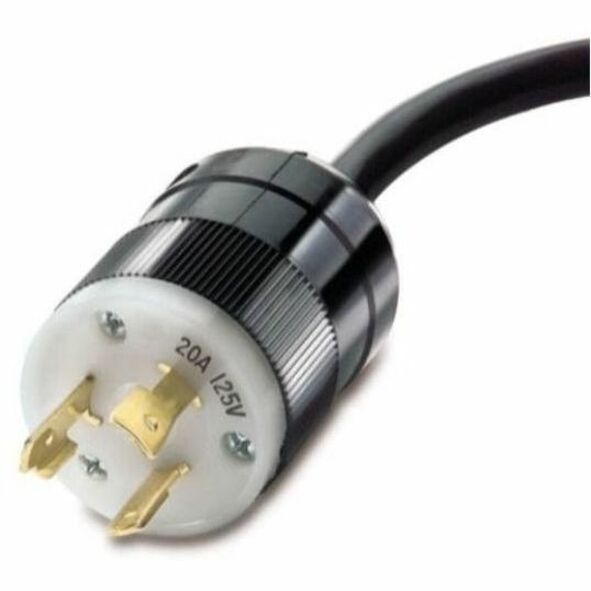

Plug/Connector Type:NEMA L5-20P
Receptacle Type:NEMA 5-15R
Receptacle Detail:14 x NEMA 5-15R
Protection Type:Overload Protection

Power Description

---

Input Voltage:

• 100 V
• 120 V

Input Voltage Range:120 V AC - 132 V AC
Output Voltage:120 V AC
Power Rating (VA):2400 VA

Physical Characteristics

---

Color Family:Black
Product Color:Black
Mounting Orientation:Vertical
Mounting Preference:No Preference
Mount Type:Rack-mountable
Placement:Side
Rack Height:0U
Cord Length:11.98 ft
Height:24"
Width:1.7"
Depth:1.7"
Weight (Approximate):4.85 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

Basic Rack 2400VA PDU

Rack mounting brackets

Toolless mounting kit

User manual

Certifications & Standards:cUL Listed|CSA|UL Listed
Product Take Back Program:No
REACH free of SVHC:Yes
Lead Free:Yes
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759546&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759546&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
Parts Warranty/Labor:2 Year
