General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP9568
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:NetShelter
Product Series:Basic

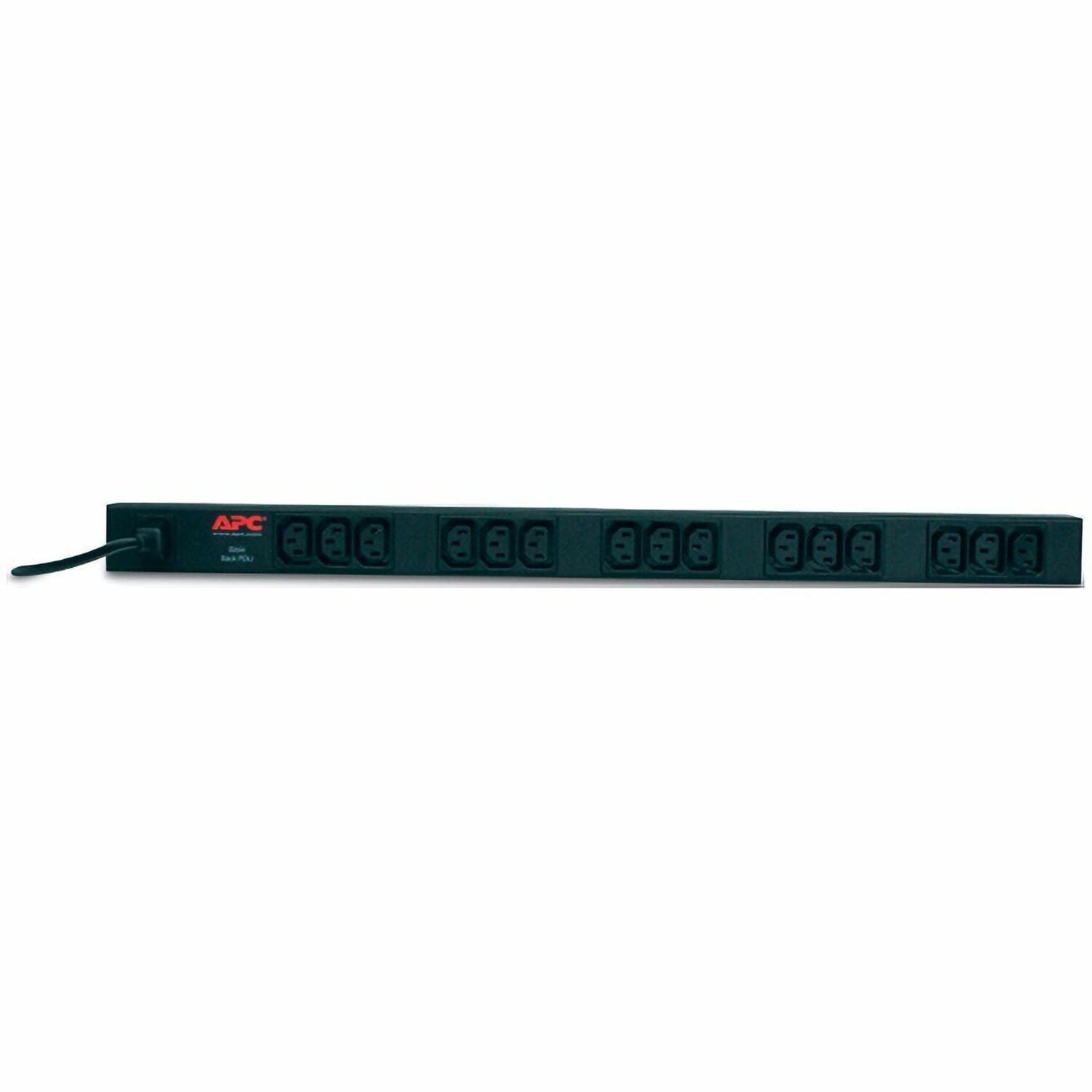

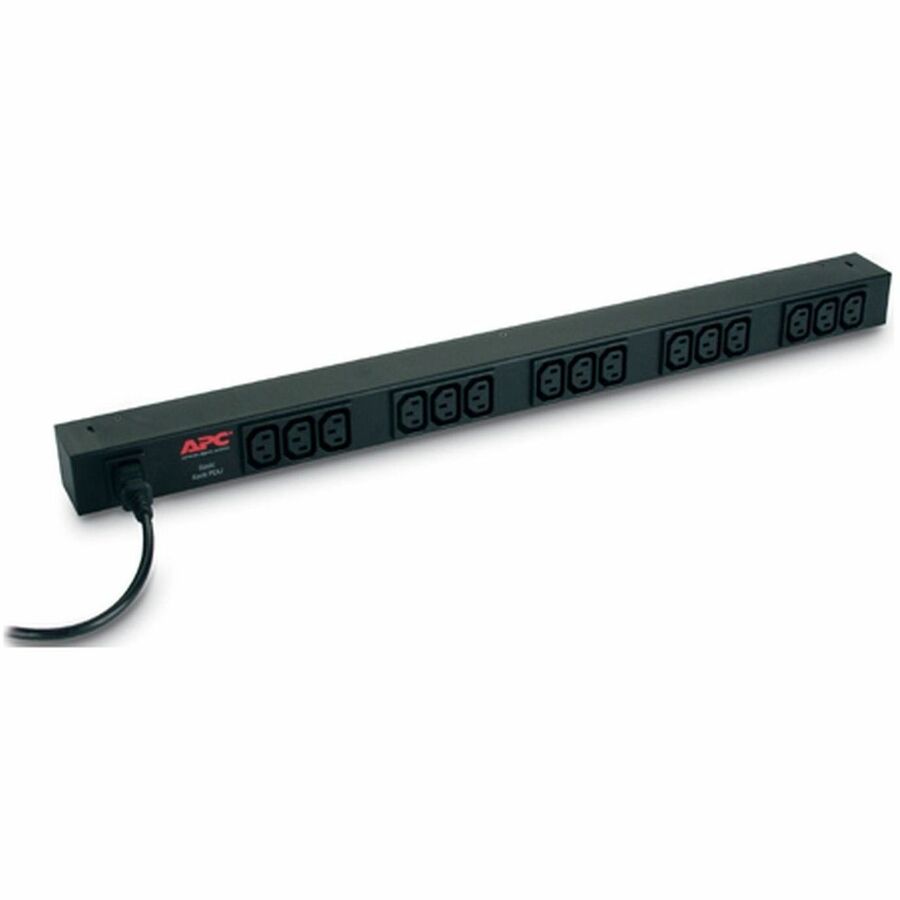

Product Name:Basic Rack 2.3kVA PDU
Marketing Information:

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 10A and operates at 230V. The PDU features 15 IEC 60320 C13 outlets, providing flexibility for connecting various IT equipment. It includes a 6.5-foot power cord with an IEC 60320 C14 plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.

Packaged Quantity:1 Each
Product Type:PDU

Technical Information

---

PDU Type:Basic
Plug/Connector Type:IEC 60320 C14
Receptacle Type:IEC 60320 C13
Receptacle Detail:15 x IEC 60320 C13

Power Description

---

Input Voltage:

• 120 V
• 200 V
• 208 V
• 230 V
• 240 V

Input Voltage Range:208 V AC - 240 V AC
Output Voltage:

• 208 V AC
• 230 V AC

Power Rating (VA):2300 VA

Physical Characteristics

---

Color Family:Black
Product Color:Black
Mounting Orientation:Vertical
Mounting Preference:No Preference
Mount Type:Rack-mountable
Placement:Side
Rack Height:0U
Cord Length:6.50 ft
Height:24"
Width:1.7"
Depth:1.7"
Weight (Approximate):4.41 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

Basic Rack 2.3kVA PDU

Installation guide

Rack mounting brackets

Toolless mounting kit

Certifications & Standards:cUL Listed|CE|GOST|Queensland Australia|UL Listed|VDE
Product Take Back Program:No
REACH free of SVHC:Yes
Lead Free:Yes
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759574&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759574&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:India
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
Parts Warranty/Labor:2 Year
