General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:BR1500MS2
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Back-UPS Pro

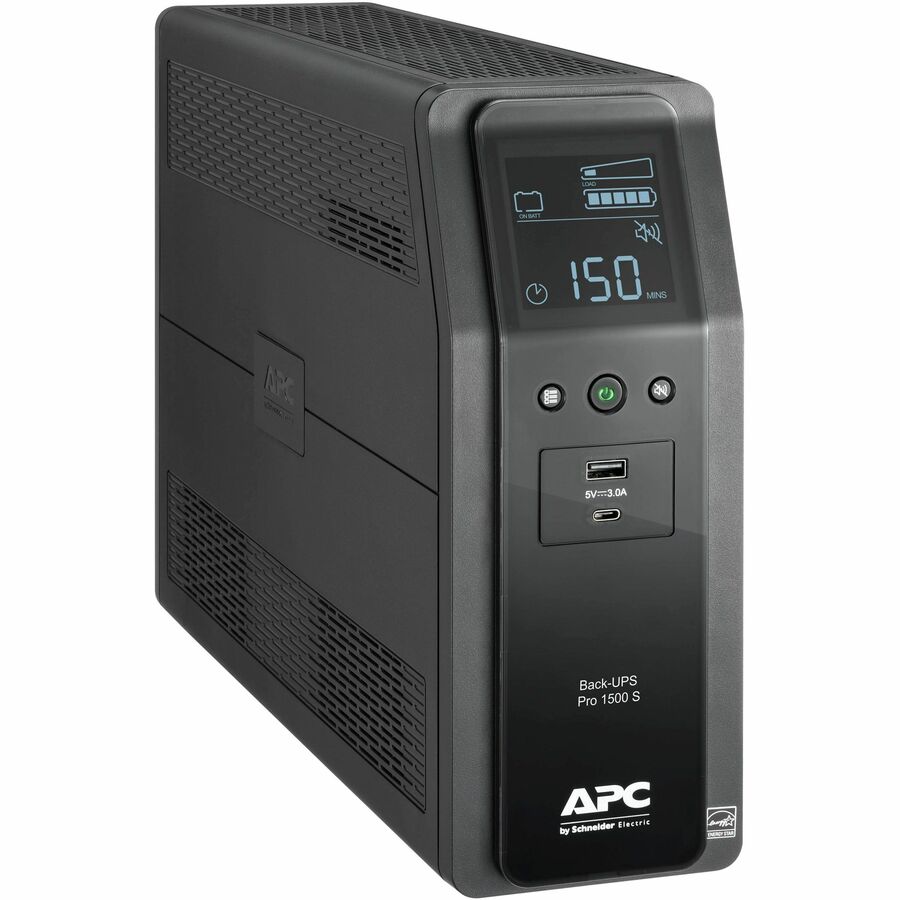

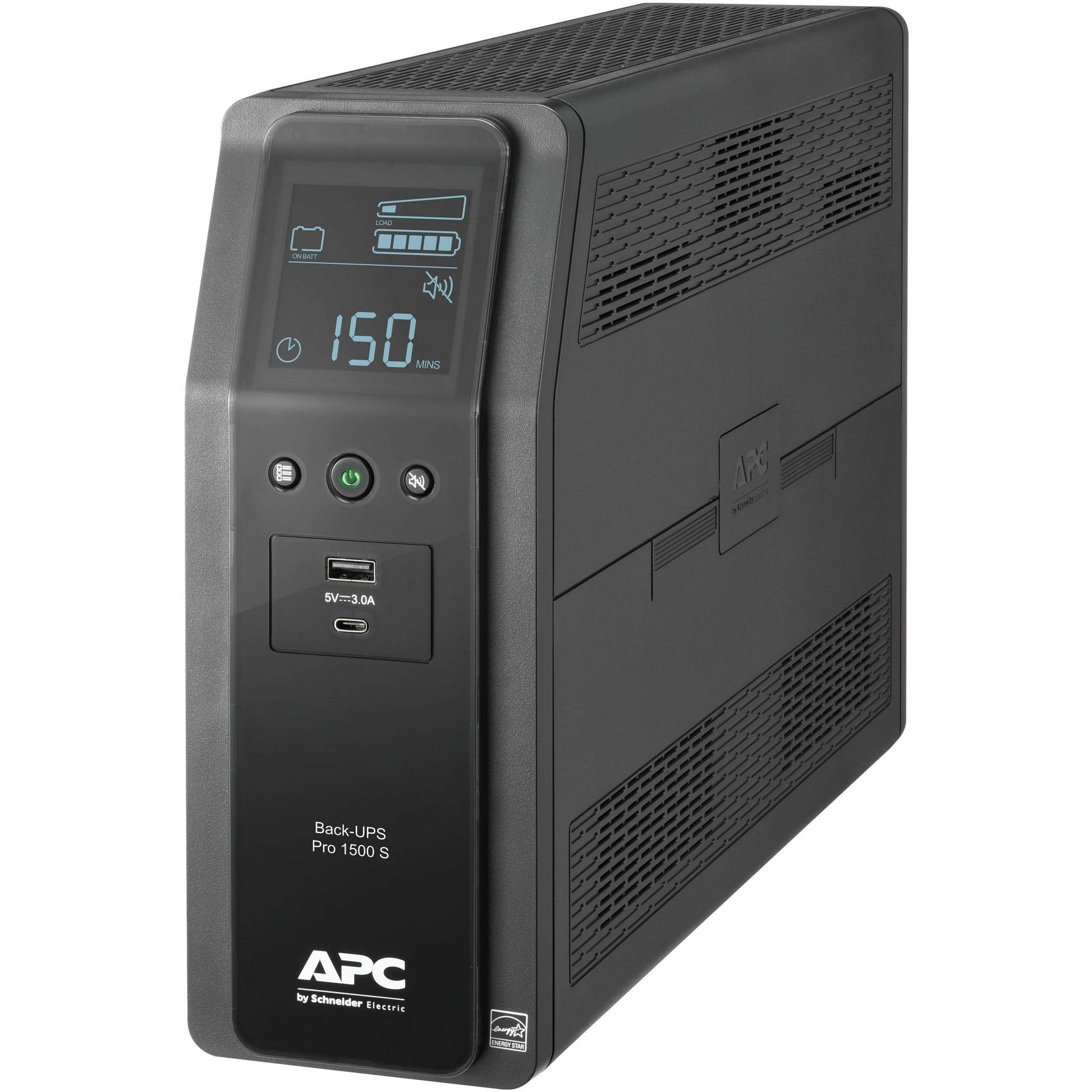

Product Name:Back UPS PRO 1500VA Line Interactive Tower UPS
Marketing Information:

This APC Back-UPS Pro offers premium power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. The 1500VA tower UPS has 10 total outlets, 6 of which are battery back up and surge protection, and 4 that are surge protection only. It has a surge energy rating of 1080 Joules. It has 2 USB ports (Type A + C) for smart charging of personal devices. This UPS has a 3-year warranty and CE product certification. This UPS has a 3-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Packaged Quantity:1 Each
Product Type:Line-interactive UPS

Technical Information

---

AVR:Yes
Plug/Connector Type:NEMA 5-15P
Receptacle Type:

• NEMA 5-15R
• USB

Receptacle Detail:

• 4 x NEMA 5-15R Surge
• 6 x NEMA 5-15R

Number of Battery & Surge Outlets:10
Number of Surge-only Outlets:4
Dataline Protection:RJ-45
Overload Protection:Yes
Cord Length:6 ft
Transfer Time:8 ms
Phase:Single Phase
Application/Usage:

• Computer System
• Router
• Modem
• Storage Device
• Gaming Console
• Home
• Business
• Electronic Device

Power Description

---

Load Capacity (VA):1500 VA
Load Capacity (Watt):900 W
Input Voltage:120 V
Input Voltage Range:88 V AC - 147 V AC
Output Voltage:120 V AC
Input Frequency:60 Hz
Output Frequency:60 Hz
Waveform Type:Sine Wave
Surge Energy Rating:1080 J

Management

---

Alarm:

• On Battery
• Low Battery
• Overload

Controls/Indicators

---

Status Indicators:Multifunction LCD status and control console

Interfaces/Ports

---

USB (HID Compliant) Port:Yes

Battery Information

---

Battery Chemistry:Lead Acid
Battery Capacity:257000 mAh
Backup/Run Time (Full Load):4.10 Minute
Backup/Run Time (Half Load):14.50 Minute
Typical Battery Recharge Time:16 Hour
Replaceable Battery:Yes

Environmental Conditions

---

Maximum Operating Temperature:104°F (40°C)
Storage Temperature:5°F (-15°C) - 104°F (40°C)
Maximum Operating Elevation:10000 ft
Maximum Storage Elevation:10000 ft
Sound Emission (A-Weighted):45 dB(A)

Physical Characteristics

---

Color Family:Black
Product Color:Black
Height:10.2"
Width:3.9"
Depth:14.5"
Form Factor:Tower
Mounting Preference:No Preference
Weight (Approximate):27.56 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

Back UPS PRO 1500VA Line Interactive Tower UPS

Coaxial cable

USB cable

User manual

Certifications & Standards:ENERGY STAR V2.0 (USA)|NOM|TUV C-US certified
Recycled:No
Assembly Required:No
Energy Star:Yes
Optimized Energy Efficiency:Yes
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BR1500MS2_ROHS_DECLARATION&p_FileName=BR1500MS2KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552168865&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552168865&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN
Energy Star URL:https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC:No
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:3 Year
Additional Warranty Information:Battery: 12 month(s)|UPS: 36 month(s)
Directly Connected Equipment Guarantee:

• 500000 Lifetime
