APC by Schneider Electric ACF001 Airflow Cooling System
APC by Schneider Electric ACF001 Airflow Cooling System
Estimated Lead Time: Ships in 3-5 Bus Days
Regular price
$1,569.99
Sale price
$1,569.99
Regular price
$0.00
Shipping calculated at checkout.
Description
Description

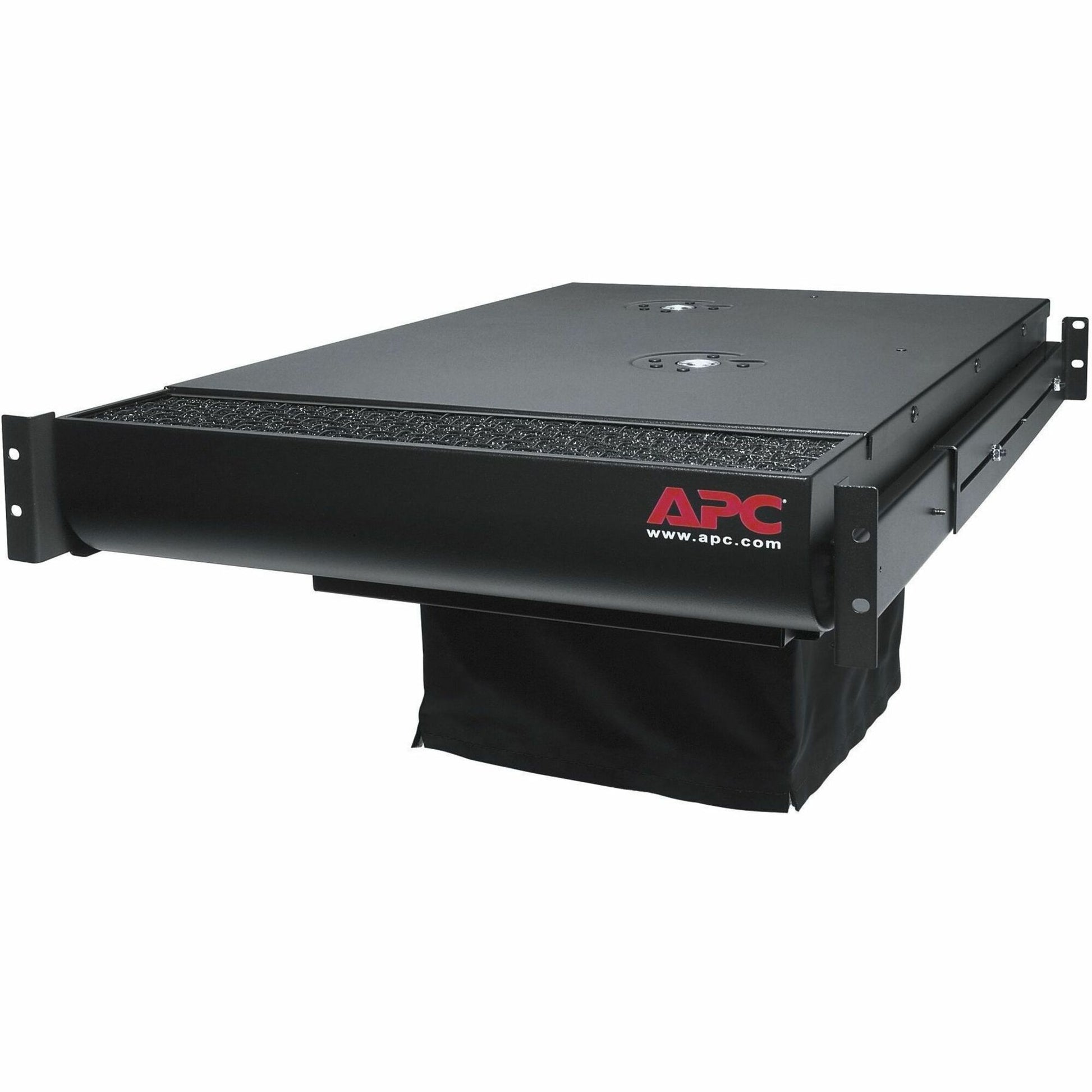

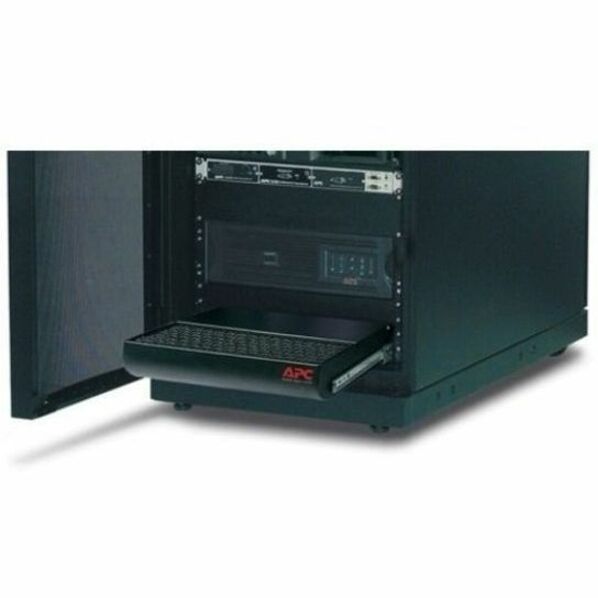

The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure, while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.
Specification
Specification
General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:ACF001
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Model:ACF001
Product Name:ACF001 Airflow Cooling System
Marketing Information:
Packaged Quantity:1 Each
Product Type:Airflow Cooling System
Manufacturer:Schneider Electric SA
Manufacturer Part Number:ACF001
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Model:ACF001
Product Name:ACF001 Airflow Cooling System
Marketing Information:
The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure, while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.
Packaged Quantity:1 Each
Product Type:Airflow Cooling System
Technical Information
Cooling Power Consumption:3500 W
Maximum Air Flow:503 CFM
Plug Type:NEMA 5-15P
Receptacle Type:IEC 60320 C13
Mounting Preference:Lower
Cooling Power Consumption:3500 W
Maximum Air Flow:503 CFM
Plug Type:NEMA 5-15P
Receptacle Type:IEC 60320 C13
Mounting Preference:Lower
Power Description
Input Voltage:120 V
Input Current:2 A
Power Consumption:240 W
Plug/Connector Type:IEC 60320 C13
Input Voltage:120 V
Input Current:2 A
Power Consumption:240 W
Plug/Connector Type:IEC 60320 C13
Physical Characteristics
Compatible Rack Height:2U
Color Family:Black
Product Color:Black
Height:3.5"
Width:16.6"
Depth:29"
Weight (Approximate):41.09 lb
Compatible Rack Height:2U
Color Family:Black
Product Color:Black
Height:3.5"
Width:16.6"
Depth:29"
Weight (Approximate):41.09 lb
Miscellaneous
Package Contents:
Certifications & Standards:UL Recognized
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=758436&lang=en-us
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Package Contents:
- ACF001 Airflow Cooling System
- Rack Mounting brackets
- User Manual
Certifications & Standards:UL Recognized
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=758436&lang=en-us
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:2 Year
Additional Warranty Information:2 years repair or replace
Limited Warranty:2 Year
Additional Warranty Information:2 years repair or replace
