General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP7563
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Basic Rack

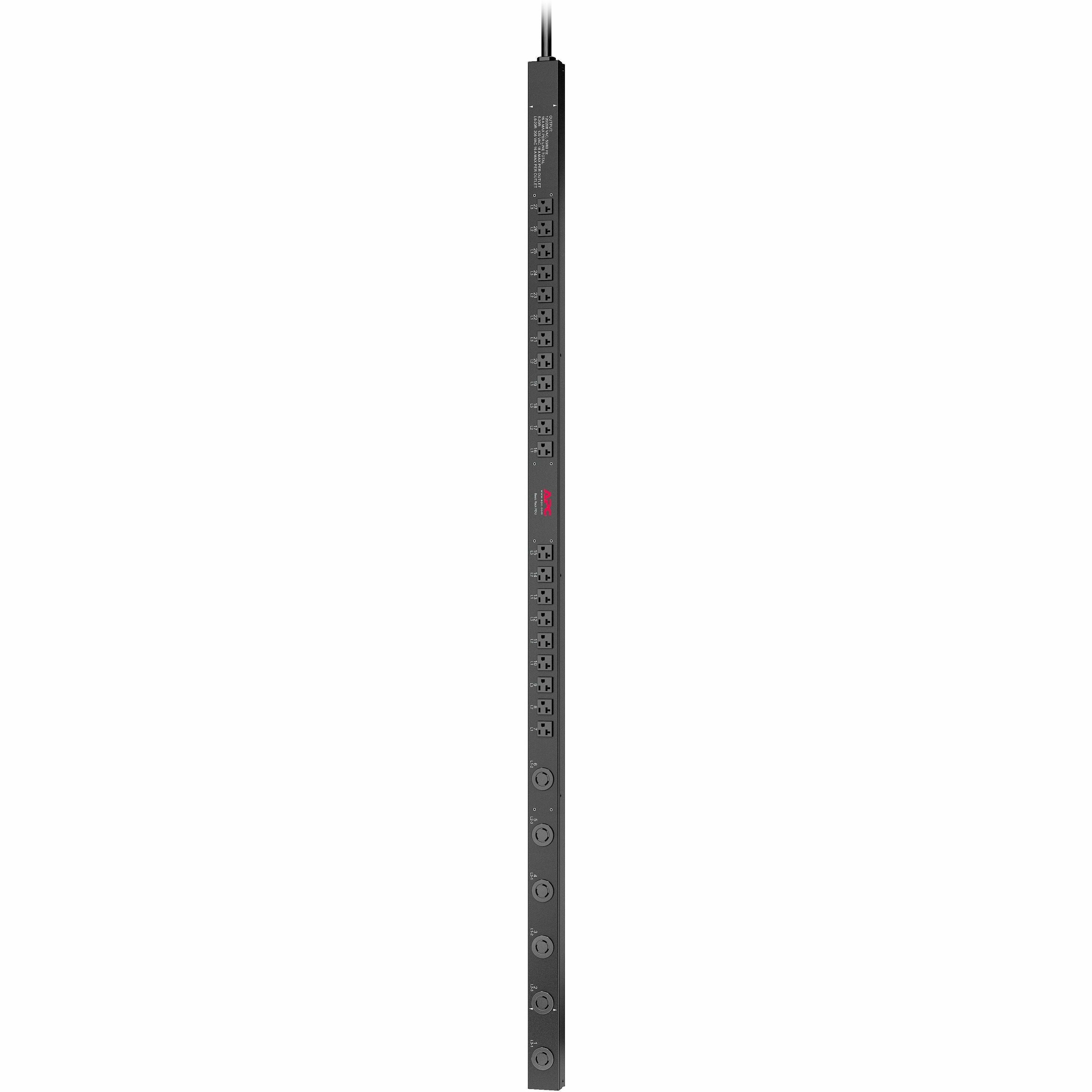

Product Name:5.7K VA Basic Rack PDU
Marketing Information:

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 208V. The PDU features 21 NEMA 5-20R outlets and 6 NEMA L6-20R outlets, providing ample connections for IT equipment. It includes a 3-foot power cord with a NEMA L21-20P plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.

Packaged Quantity:1 Each
Product Type:PDU

Technical Information

---

PDU Type:Basic
Plug/Connector Type:NEMA L21-20P
Receptacle Type:

• NEMA 5-20R
• NEMA 6-20R

Receptacle Detail:

• 21 x NEMA 5-20R
• 6 x NEMA 6-20R

Power Description

---

Input Voltage:208 V
Output Voltage:

• 120 V AC
• 208 V AC

Physical Characteristics

---

Color Family:Black
Product Color:Black
Mounting Orientation:Vertical
Mounting Preference:No Preference
Mount Type:Rack-mountable
Placement:Side
Rack Height:0U
Cord Length:2.95 ft
Height:70"
Width:2.2"
Depth:1.7"
Weight (Approximate):12.04 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

5.7K VA Basic Rack PDU

Installation guide

Rack mounting brackets

Toolless mounting kit

Certifications & Standards:cUL Listed|UL Listed
Product Take Back Program:No
REACH free of SVHC:Yes
Toxic Heavy Metal Free:Yes
Mercury Free:Yes
Lead Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7563_ROHS_DECLARATION&p_FileName=AP7563KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759112&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759112&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
Country of Origin:India
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
Parts Warranty/Labor:2 Year
