General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:SURT023M
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric

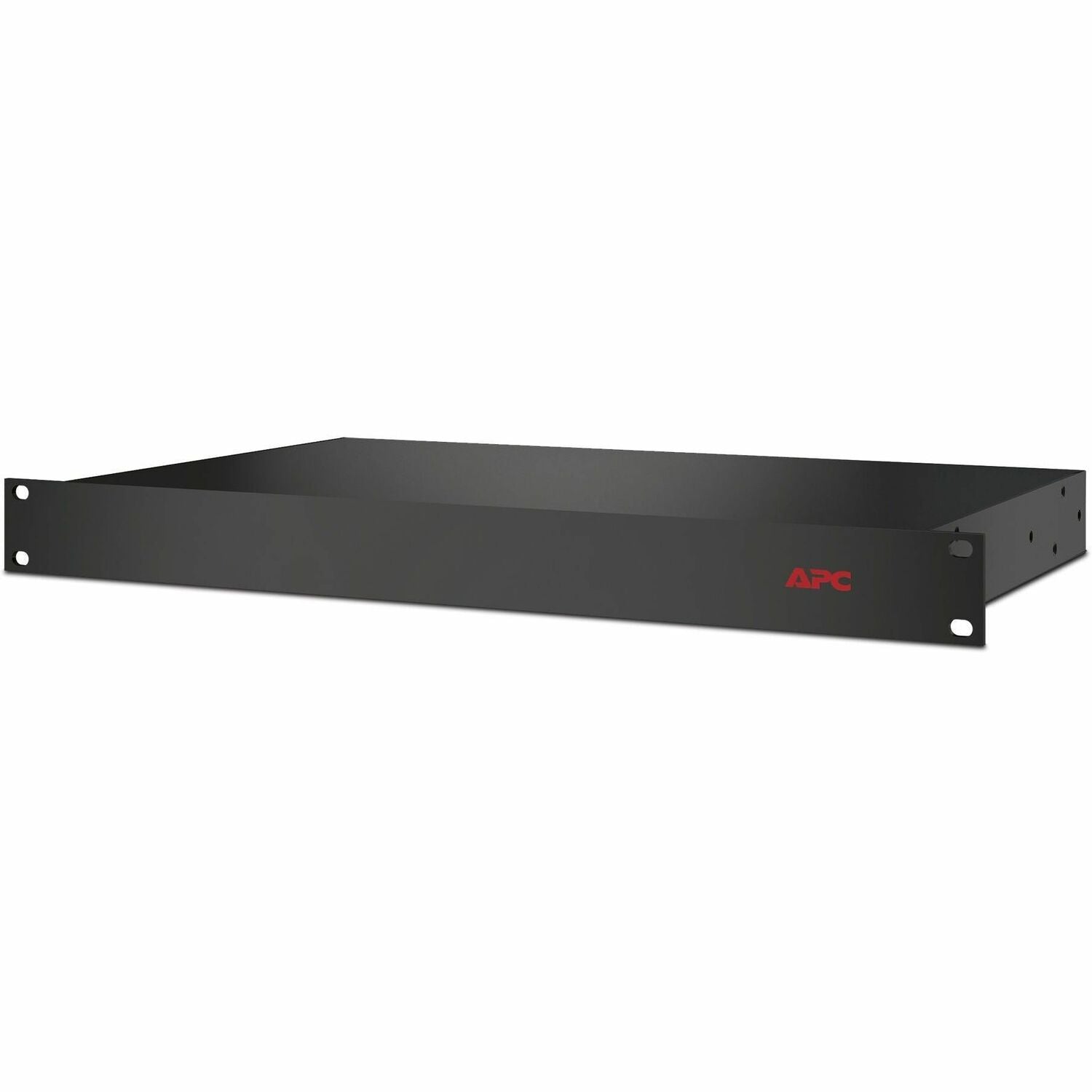

Product Name:3000VA Filter - MARINE
Marketing Information:

The APC Filter for Marine application provides high availability and ruggedized power protection for shipboard and other transportation applications. It supports input voltage range of 208V to 240V, and output voltage range of 200V to 240V. The filter has a load capacity of 3000 VA and includes one IEC 60320 C19 power socket outlet. It operates at a frequency range of 47-63 Hz and has a maximum line current of 16 A. The unit is 1U in height.

Packaged Quantity:1 Each
Product Type:Surge Suppressor/Protector

Technical Information

---

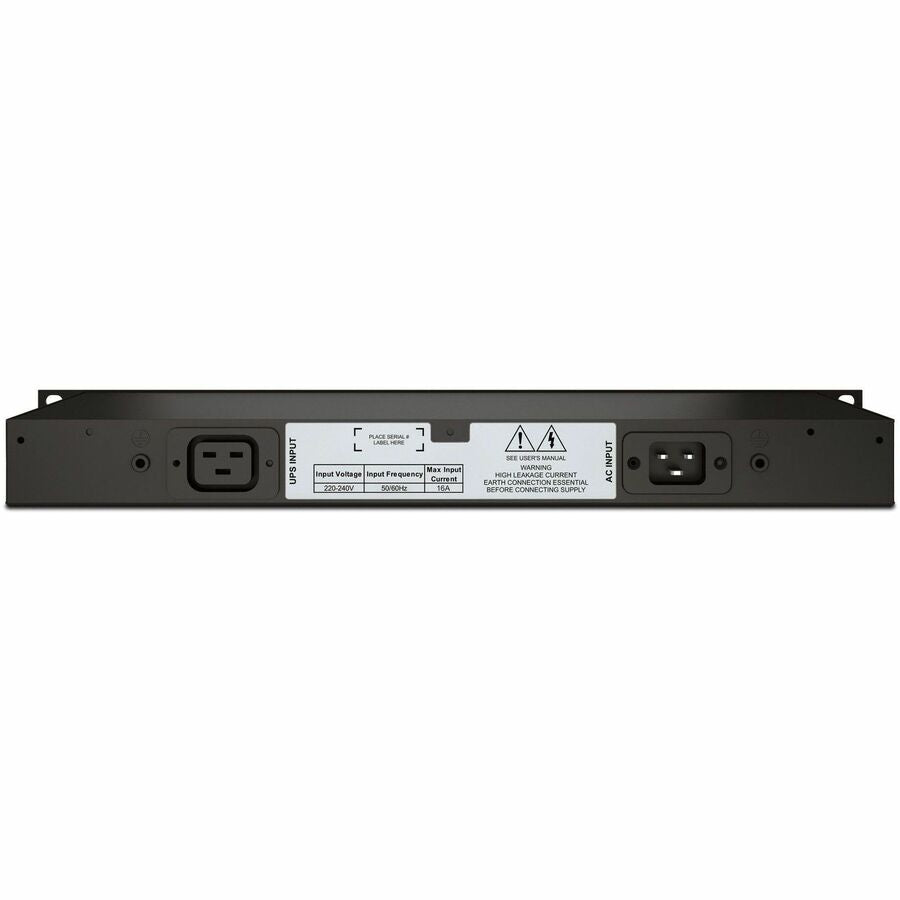

Plug/Connector Type:IEC 60320 C20
Receptacles:IEC 60320 C20
Protection Type:

• Spikes
• Lightning
• Surge

Power Description

---

Input Voltage:

• 208 V
• 220 V
• 230 V
• 240 V

Output Voltage:

• 200 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC

Maximum Line Current:16 A
Power Handling:3000 VA

Physical Characteristics

---

Color Family:Black
Product Color:Black
Power Cord/Cable Length:8 ft
Mounting Location:Front
Mounting Preference:No Preference
Rack Height:1U
Height:1.7"
Width:17"
Depth:11"
Weight (Approximate):11.22 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

3000VA Filter - MARINE

Installation guide

Mounting hardware

User manual

Certifications & Standards:DNV
Product Take Back Program:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT023M_ROHS_DECLARATION&p_FileName=SURT023MKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=149690486&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=149690486&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512016EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512016_EN
REACH free of SVHC:No
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:Thailand
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
