General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:SBP16KP
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Model:SBP16KP

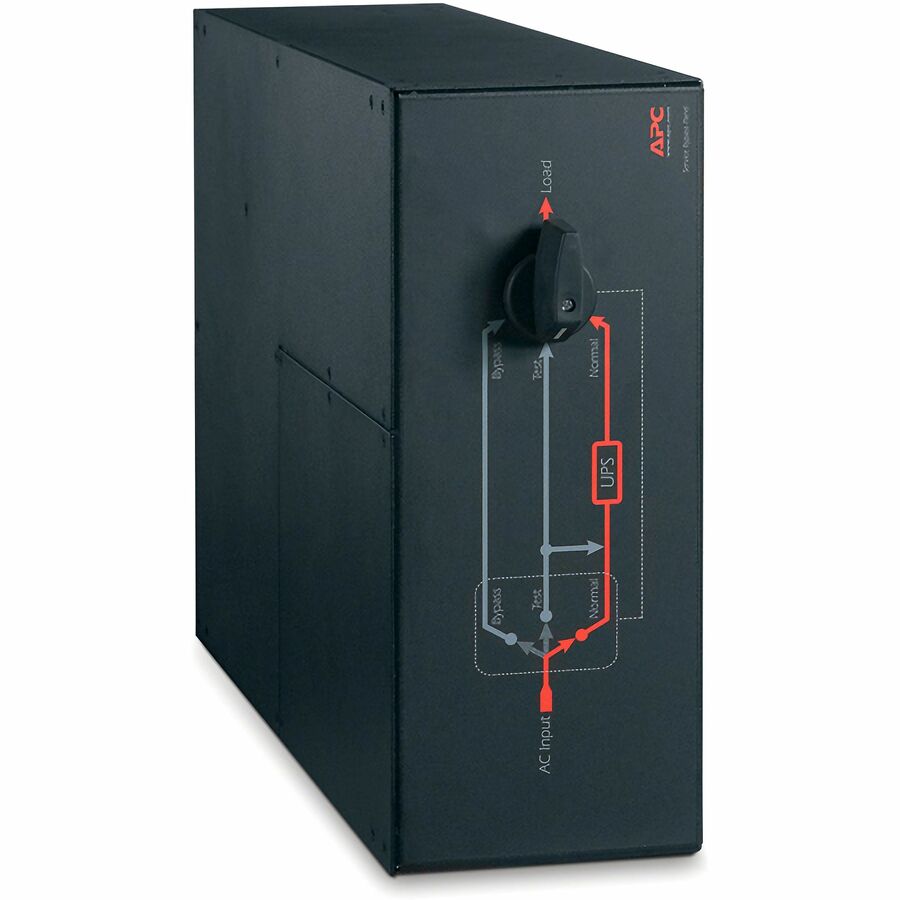

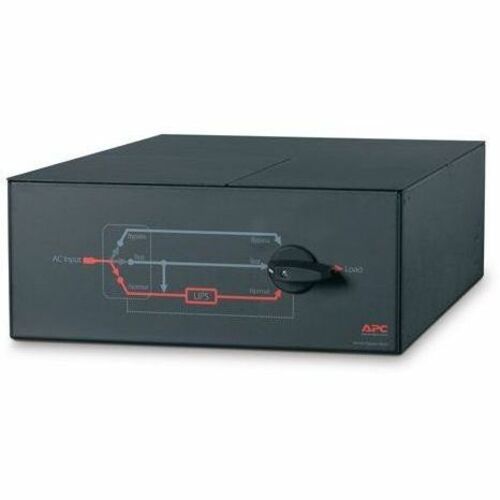

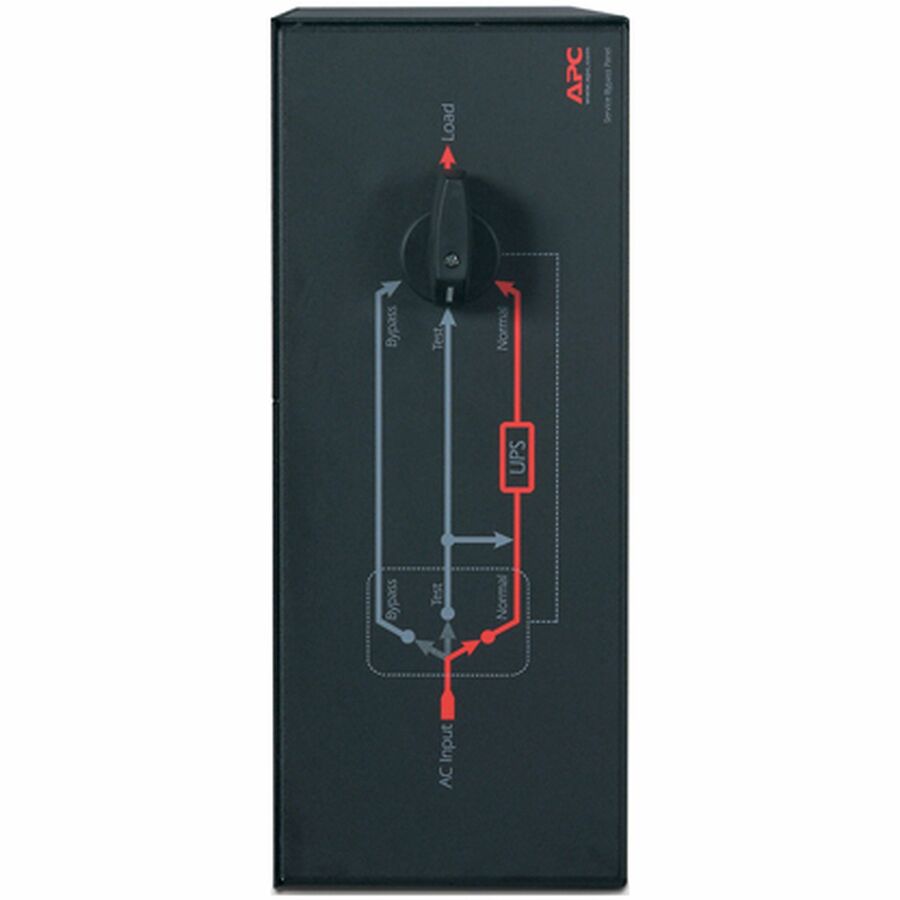

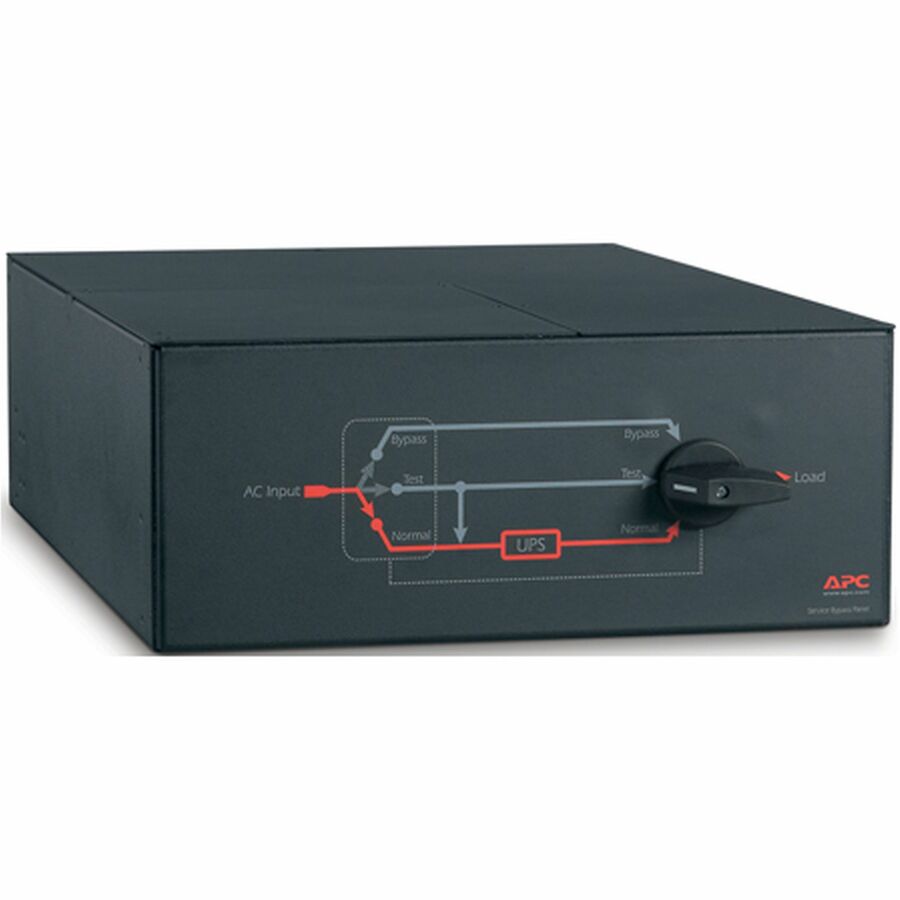

Product Name:20 kVA Rack Mountable Maintenance Bypass Switch
Marketing Information:

The APC Service Bypass Panel support voltage of 200V, 208V, and 240V. It features a 4U rack-mount design and is rack mountable. It includes an installation guide, rack mounting brackets, and a user manual.

Packaged Quantity:1 Each
Product Type:Bypass Switch

Technical Information

---

Receptacles:

• 1 x Hard Wire 3-wire (H+N+E)
• 1 x Hard Wire 3-wire (2PH + G)
• 1 x Hard Wire 4-wire (2PH+N+G)

Protection Type:Overload

Power Description

---

Load Capacity (VA):20 kW
Input Voltage:

• 200 V AC
• 208 V AC
• 230 V AC
• 480 V AC

Output Voltage:

• 120 V AC
• 200 V AC
• 208 V AC
• 230 V AC

Physical Characteristics

---

Color Family:Black
Product Color:Black
Form Factor:Rack-mountable
Mounting Location:Front
Mounting Preference:Lower
Rack Height:4U
Height:7"
Width:17"
Depth:26"
Weight (Approximate):47.09 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

20 kVA Rack Mountable Maintenance Bypass Switch

Installation guide

Rack mounting brackets

User manual

Certifications & Standards:CSA|GOST
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SBP16KP_ROHS_DECLARATION&p_FileName=SBP16KPKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=764470&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=764470&lang=en-us
REACH free of SVHC:Yes
Toxic Heavy Metal Free:Yes
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:2 Year
