APC by Schneider Electric 19" Rack Mountable 24A Maintenance Bypass Panel - 2 x NEMA L6-20R, 2 x NEMA L6-30R - 5000 W - 200 V AC, 208 V AC - 24 A, 24 A, 24 A
APC by Schneider Electric 19" Rack Mountable 24A Maintenance Bypass Panel - 2 x NEMA L6-20R, 2 x NEMA L6-30R - 5000 W - 200 V AC, 208 V AC - 24 A, 24 A, 24 A
Regular price
$1,234.99
Sale price
$1,234.99
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description

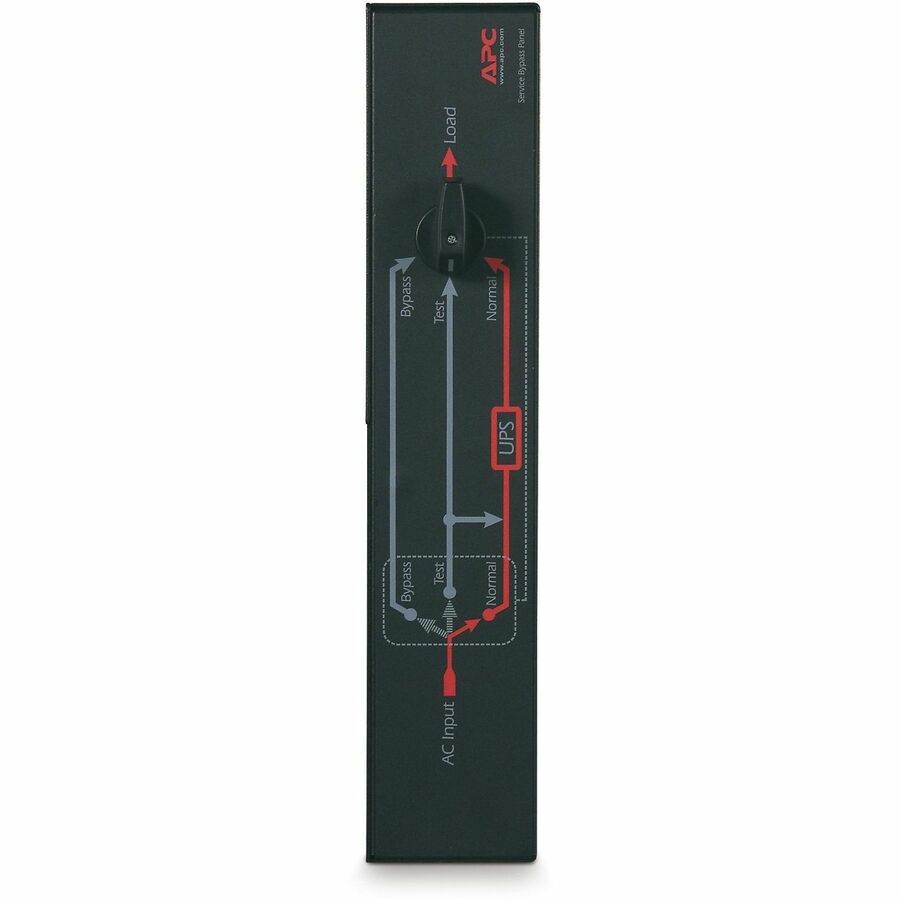

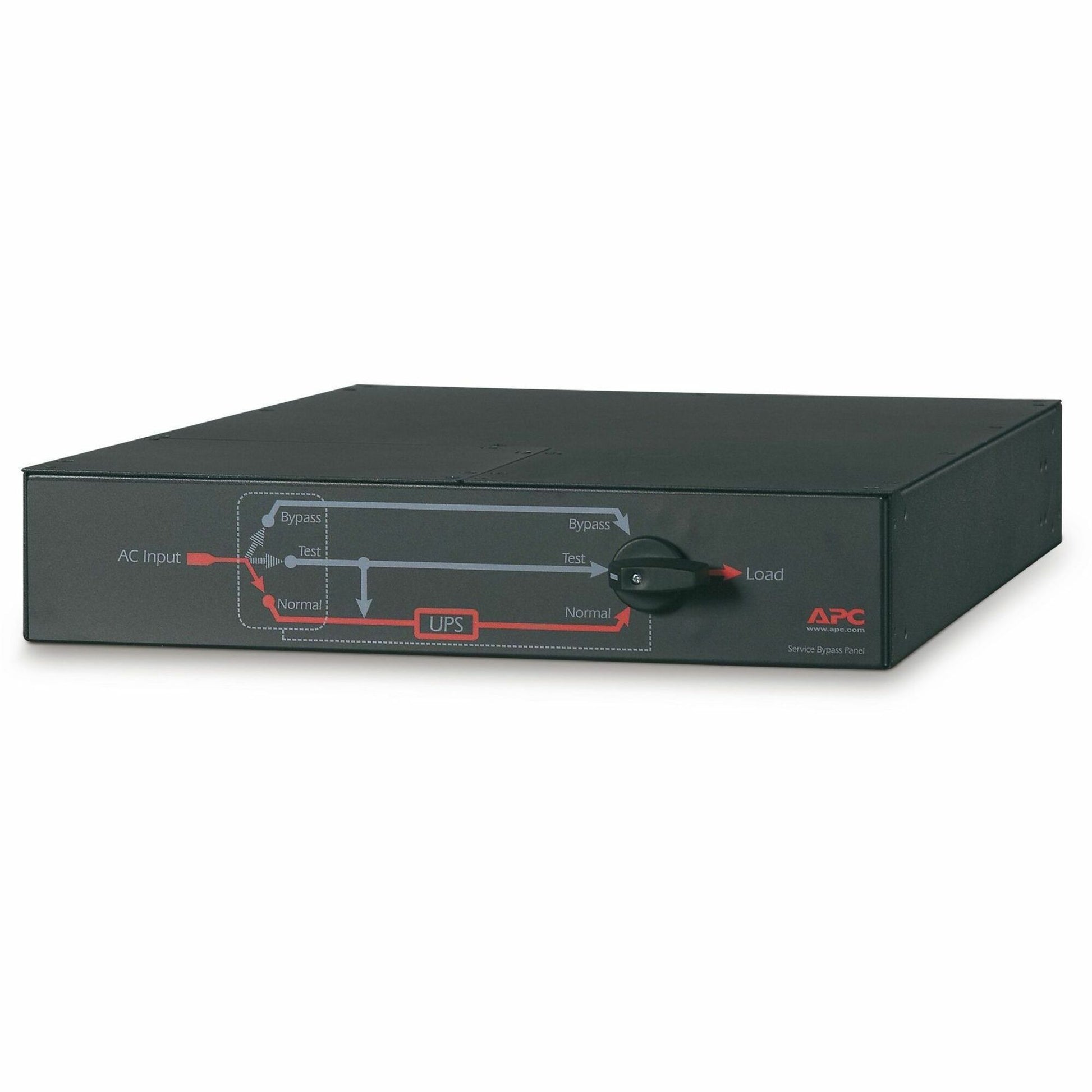

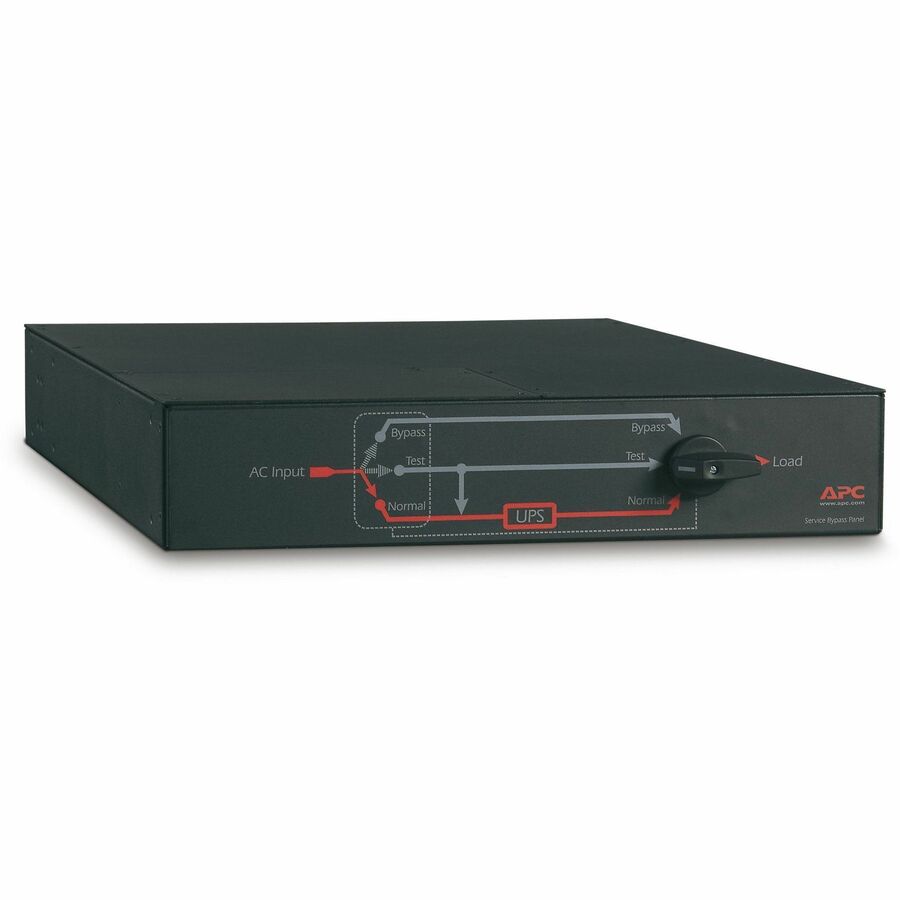

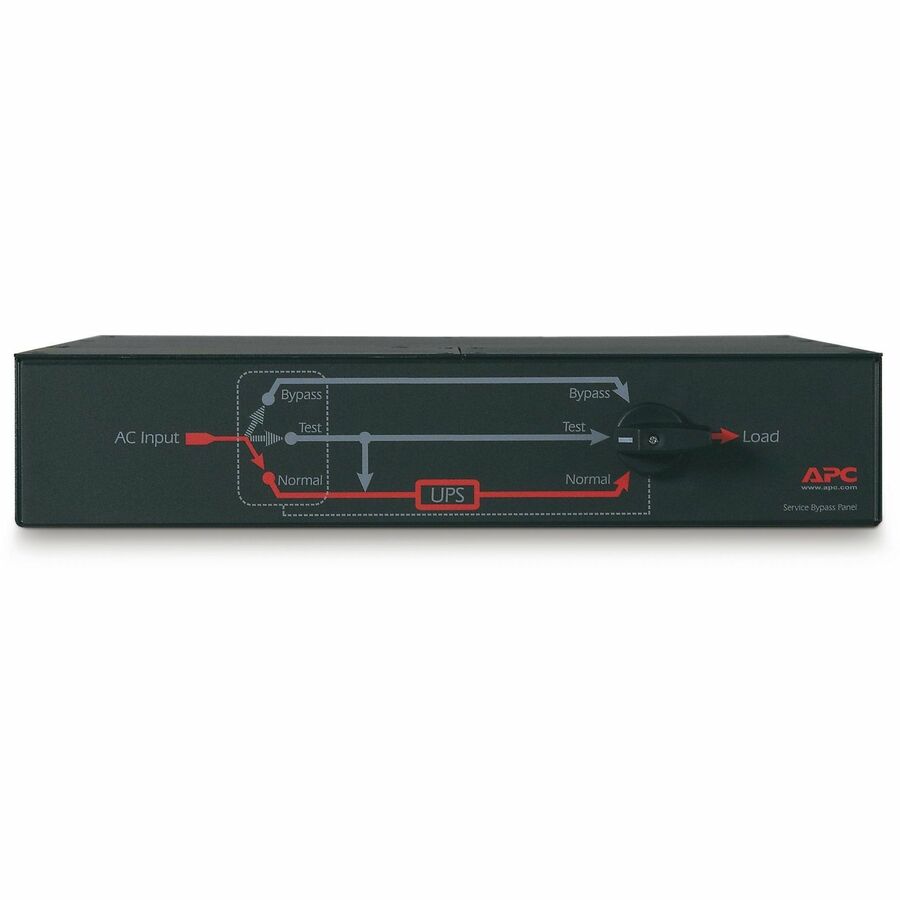

The APC SBP5000RMT2U Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires L6-30P input and offers (2) L6-30R, (2) L6-20R outlets. The panel is 2U in height with 208V input and user selectable 200V/208V/240V output voltage. This panel comes with a 2-year warranty.
Specification
Specification
General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SBP5000RMT2U
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Name:19" Rack Mountable 24A Maintenance Bypass Panel
Marketing Information:
Packaged Quantity:1 Each
Product Type:Bypass Panel
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SBP5000RMT2U
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Name:19" Rack Mountable 24A Maintenance Bypass Panel
Marketing Information:
The APC SBP5000RMT2U Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires L6-30P input and offers (2) L6-30R, (2) L6-20R outlets. The panel is 2U in height with 208V input and user selectable 200V/208V/240V output voltage. This panel comes with a 2-year warranty.
Packaged Quantity:1 Each
Product Type:Bypass Panel
Technical Information
Plug/Connector Type:NEMA L6-30P
Receptacles:
Protection Type:Overload
Cord Length:10.01 ft
Plug/Connector Type:NEMA L6-30P
Receptacles:

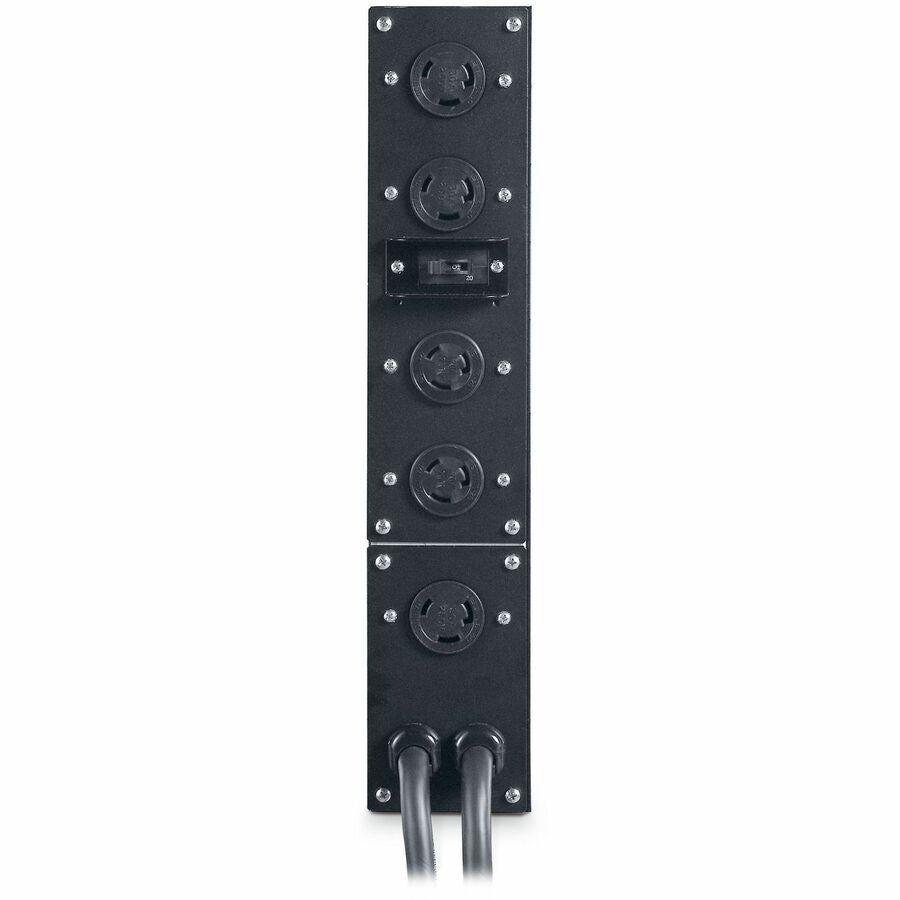

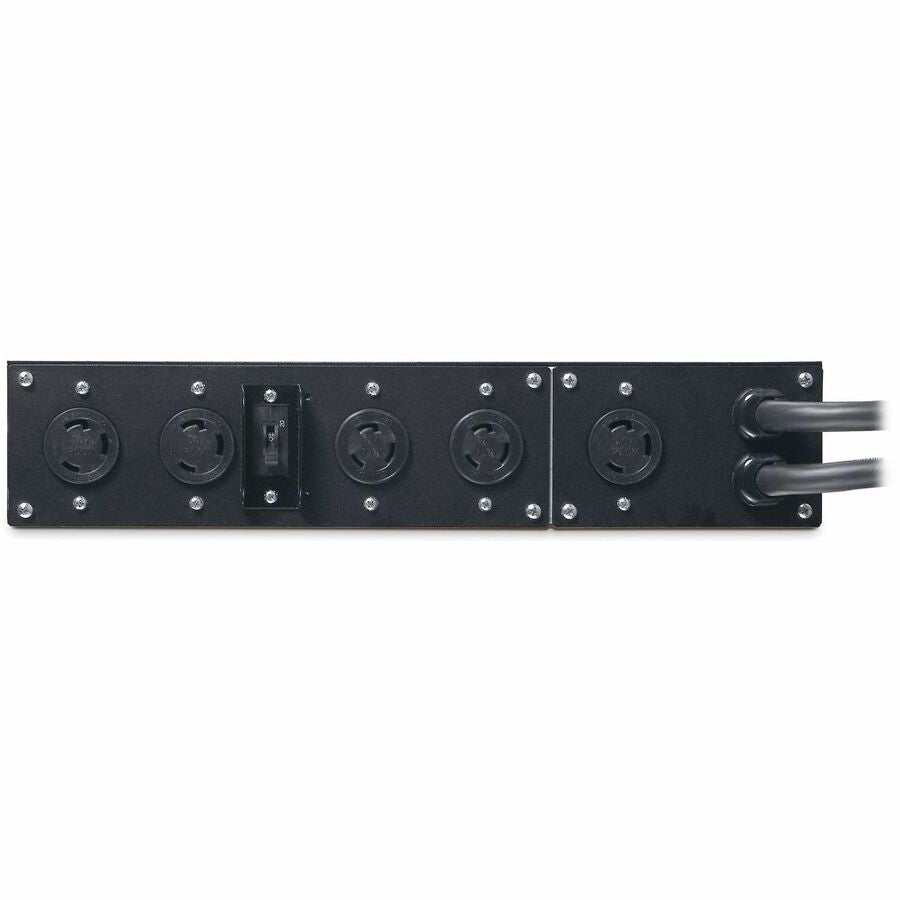

- 2 x NEMA L6-20R
- 2 x NEMA L6-30R
Protection Type:Overload
Cord Length:10.01 ft
Power Description
Load Capacity (VA):5000 W
Input Voltage:
Output Voltage:
Current:24 A
Load Capacity (VA):5000 W
Input Voltage:
- 200 V AC
- 208 V AC
Output Voltage:
- 200 V AC
- 208 V AC
Current:24 A
Physical Characteristics
Color Family:Black
Product Color:Black
Form Factor:Rack-mountable
Mounting Location:Front
Mounting Preference:Lower
Rack Height:2U
Height:3.5"
Width:17"
Depth:26"
Weight (Approximate):30.07 lb
Color Family:Black
Product Color:Black
Form Factor:Rack-mountable
Mounting Location:Front
Mounting Preference:Lower
Rack Height:2U
Height:3.5"
Width:17"
Depth:26"
Weight (Approximate):30.07 lb
Miscellaneous
For Country/Region:United States
Package Contents:19" Rack Mountable 24A Maintenance Bypass Panel Installation guide Rack mounting brackets User manual
Certifications & Standards:CSA|GOST
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SBP5000RMT2U_ROHS_DECLARATION&p_FileName=SBP5000RMT2UKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=764532&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=764532&lang=en-us
REACH free of SVHC:Yes
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:China
Environmentally Friendly:Yes
Environmental Certification:RoHS
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
For Country/Region:United States
Package Contents:
Certifications & Standards:CSA|GOST
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SBP5000RMT2U_ROHS_DECLARATION&p_FileName=SBP5000RMT2UKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=764532&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=764532&lang=en-us
REACH free of SVHC:Yes
WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin:China
Environmentally Friendly:Yes
Environmental Certification:RoHS
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:2 Year
Limited Warranty:2 Year
