APC by Schneider Electric 19" Rack Mountable 100A Maintenance Bypass Panel - 6 x NEMA L14-30R - 20 kW - 208 V AC - 100 A, 100 A, 100 A
APC by Schneider Electric 19" Rack Mountable 100A Maintenance Bypass Panel - 6 x NEMA L14-30R - 20 kW - 208 V AC - 100 A, 100 A, 100 A
APC by Schneider Electric 19" Rack Mountable 100A Maintenance Bypass Panel - 6 x NEMA L14-30R - 20 kW - 208 V AC - 100 A, 100 A, 100 A
APC by Schneider Electric 19" Rack Mountable 100A Maintenance Bypass Panel - 6 x NEMA L14-30R - 20 kW - 208 V AC - 100 A, 100 A, 100 A
APC by Schneider Electric 19" Rack Mountable 100A Maintenance Bypass Panel - 6 x NEMA L14-30R - 20 kW - 208 V AC - 100 A, 100 A, 100 A
APC by Schneider Electric 19" Rack Mountable 100A Maintenance Bypass Panel - 6 x NEMA L14-30R - 20 kW - 208 V AC - 100 A, 100 A, 100 A

APC by Schneider Electric 19" Rack Mountable 100A Maintenance Bypass Panel - 6 x NEMA L14-30R - 20 kW - 208 V AC - 100 A, 100 A, 100 A

APC by Schneider Electric 19" Rack Mountable 100A Maintenance Bypass Panel - 6 x NEMA L14-30R - 20 kW - 208 V AC - 100 A, 100 A, 100 A

Brand: APC by Schneider Electric

Categories: Switches

Item Number: 635087

Estimated Lead Time: Ships in 3-5 Bus Days

$2,320.99
$2,320.99 $0.00
Shipping calculated at checkout.

Description

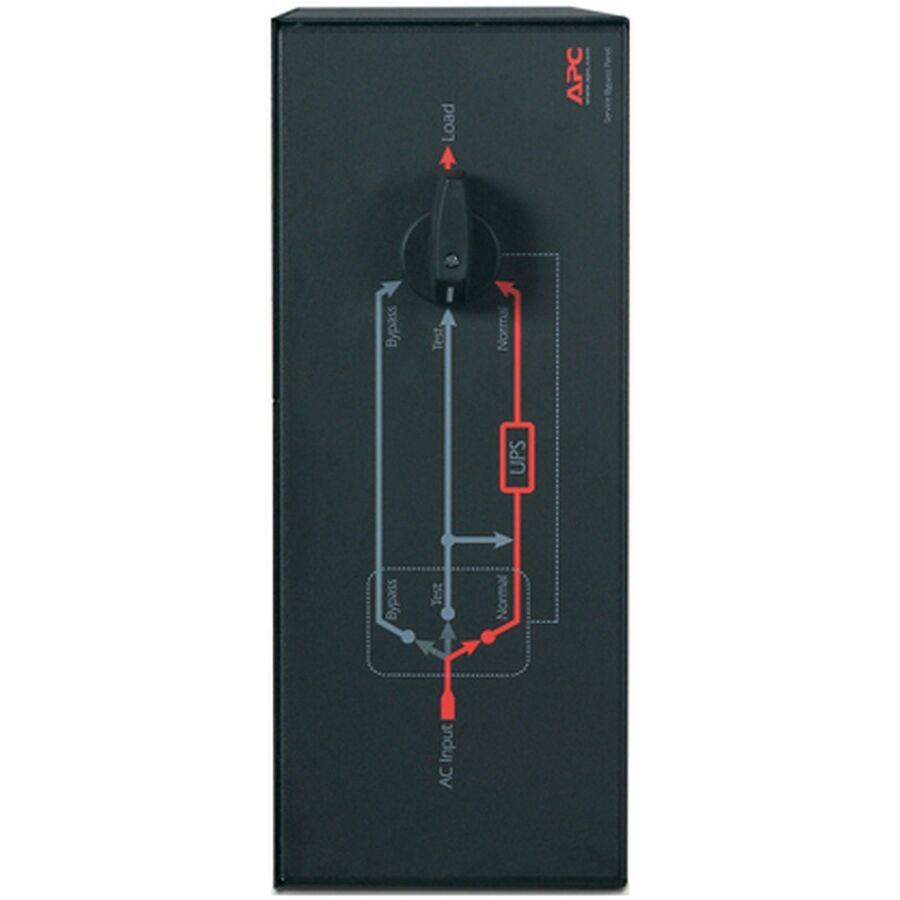

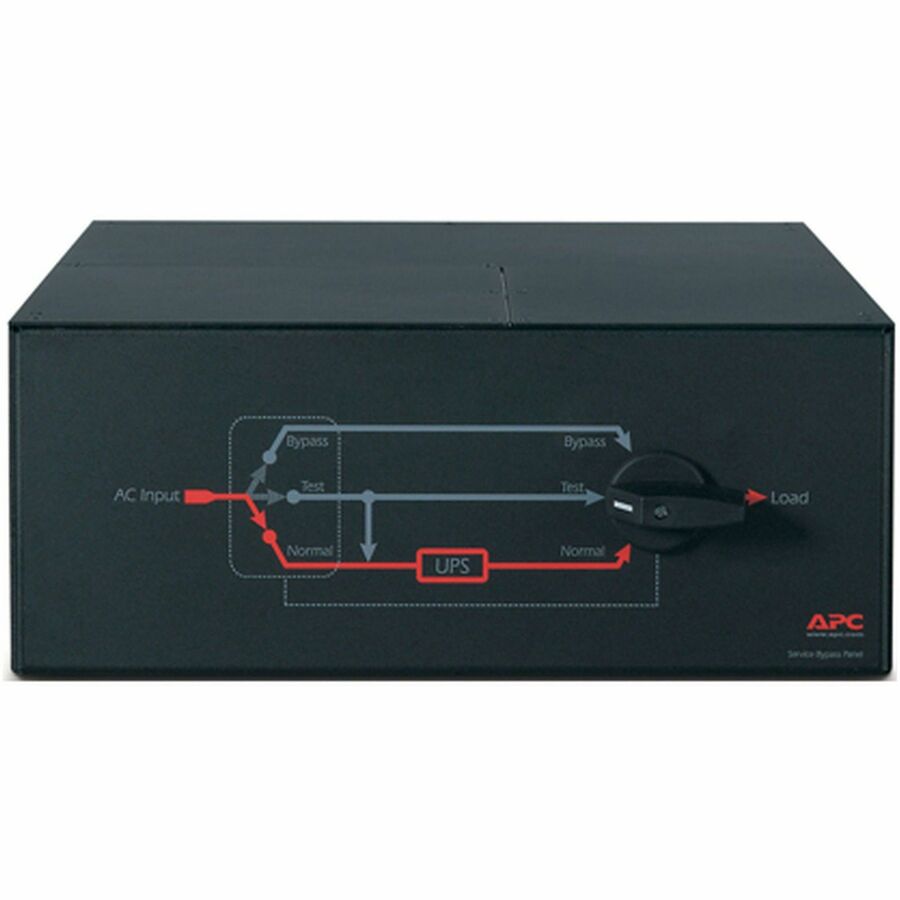

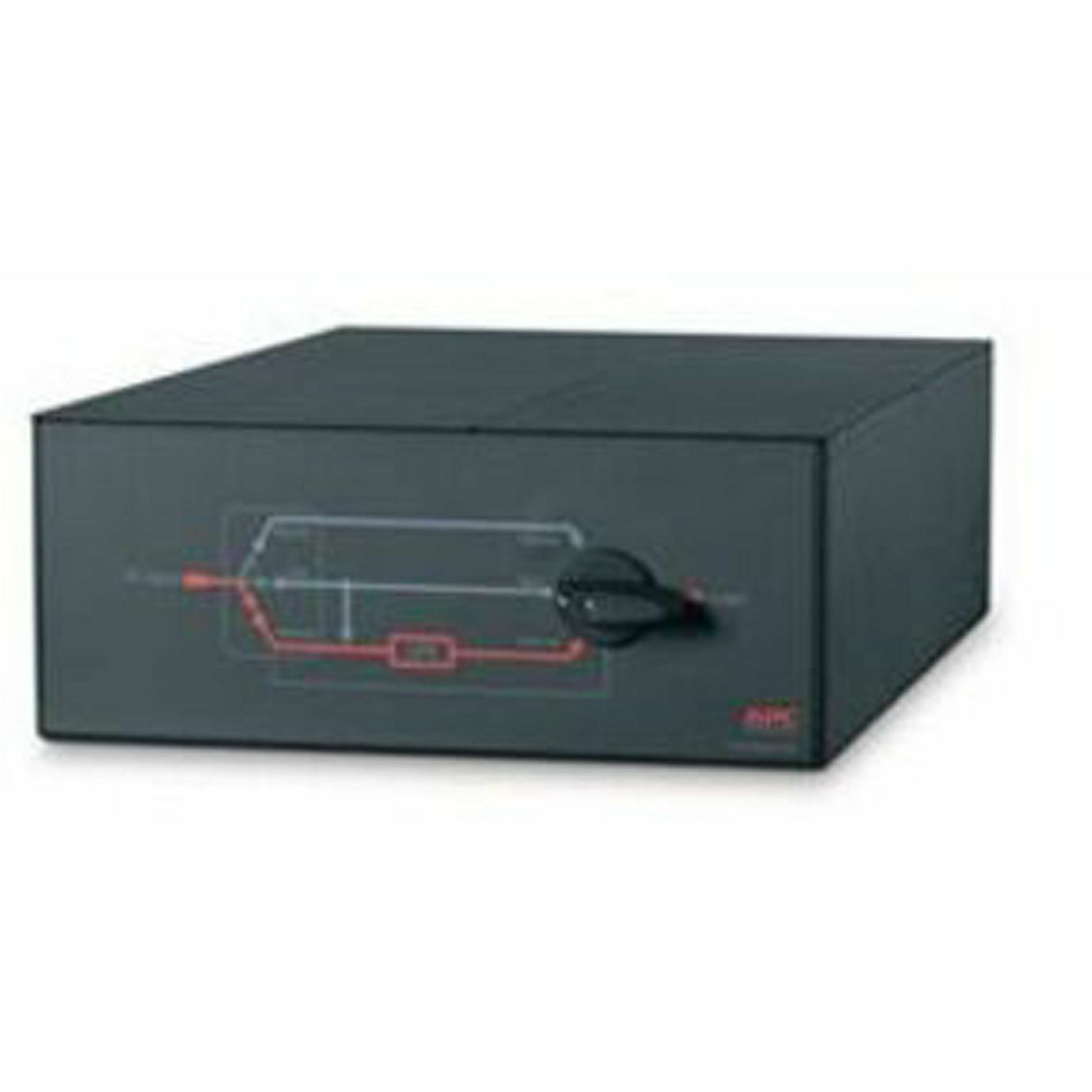

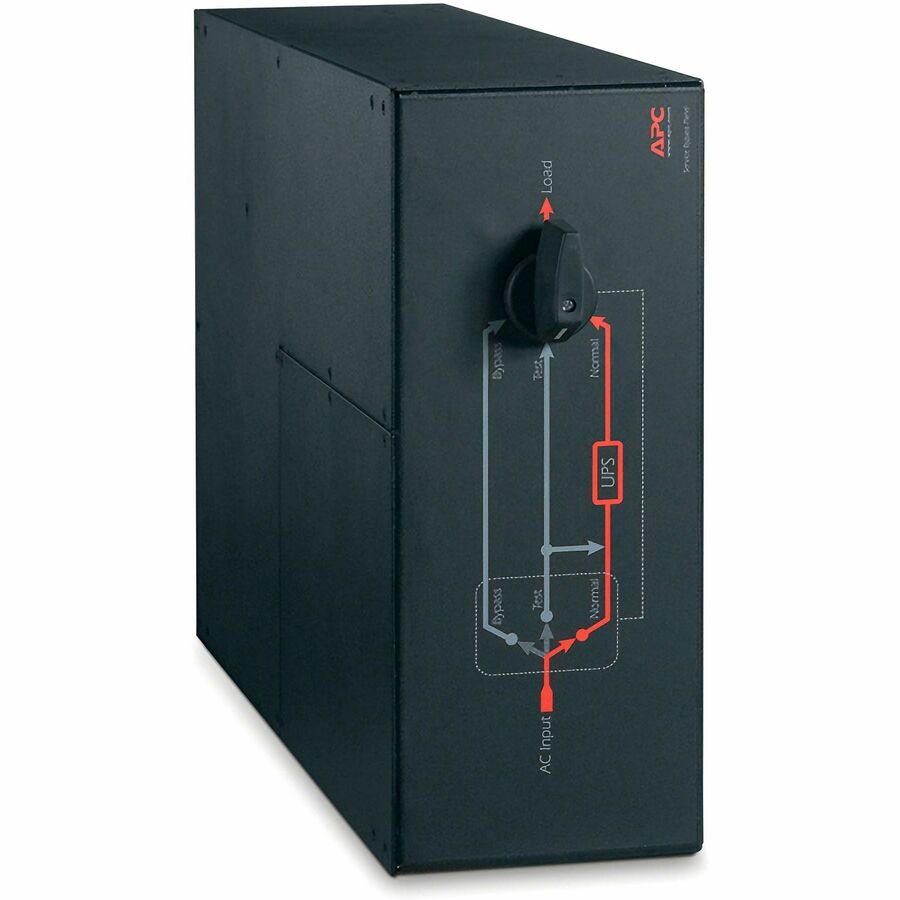

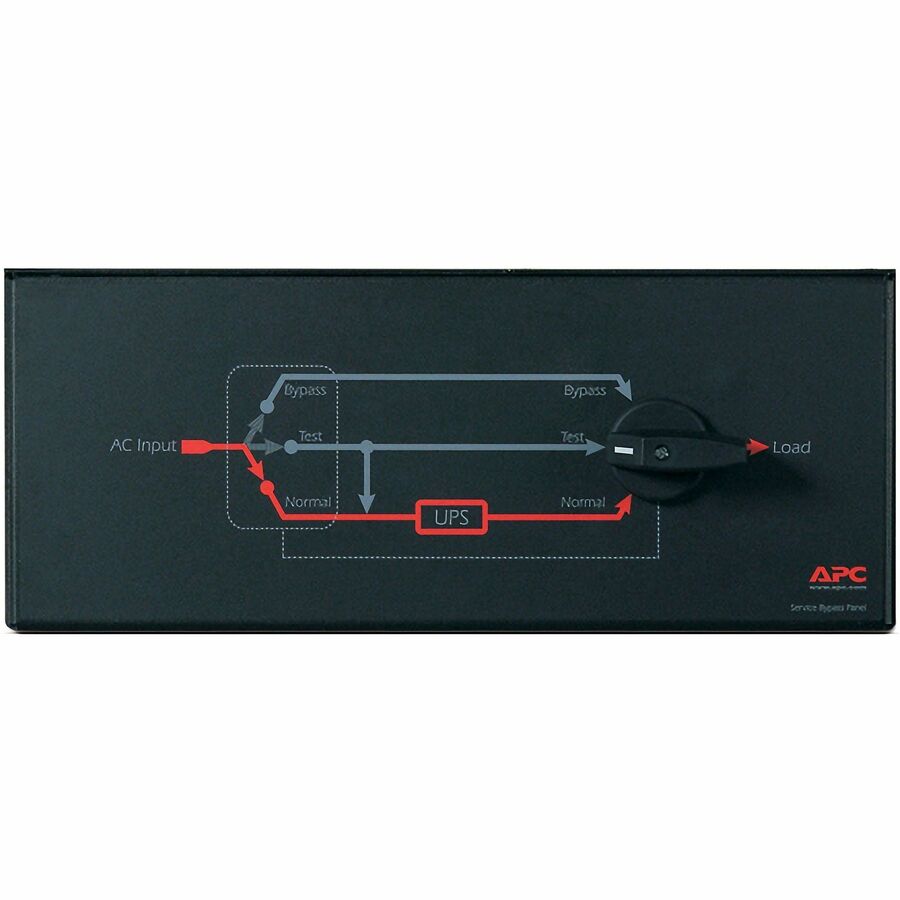

The APC Service Bypass Panel supports output voltage of 200V and 208V. It includes 6 NEMA L14-30R outlets. It features a 4U rack-mount design and is rack mountable.

Specification

General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:SBP16KRMP4U
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Name:19" Rack Mountable 100A Maintenance Bypass Panel
Marketing Information:

The APC Service Bypass Panel supports output voltage of 200V and 208V. It includes 6 NEMA L14-30R outlets. It features a 4U rack-mount design and is rack mountable.


Packaged Quantity:1 Each
Product Type:Bypass Panel
Technical Information
Plug/Connector Type:
  • Hard Wire 3-wire
  • Hard Wire 4-wire

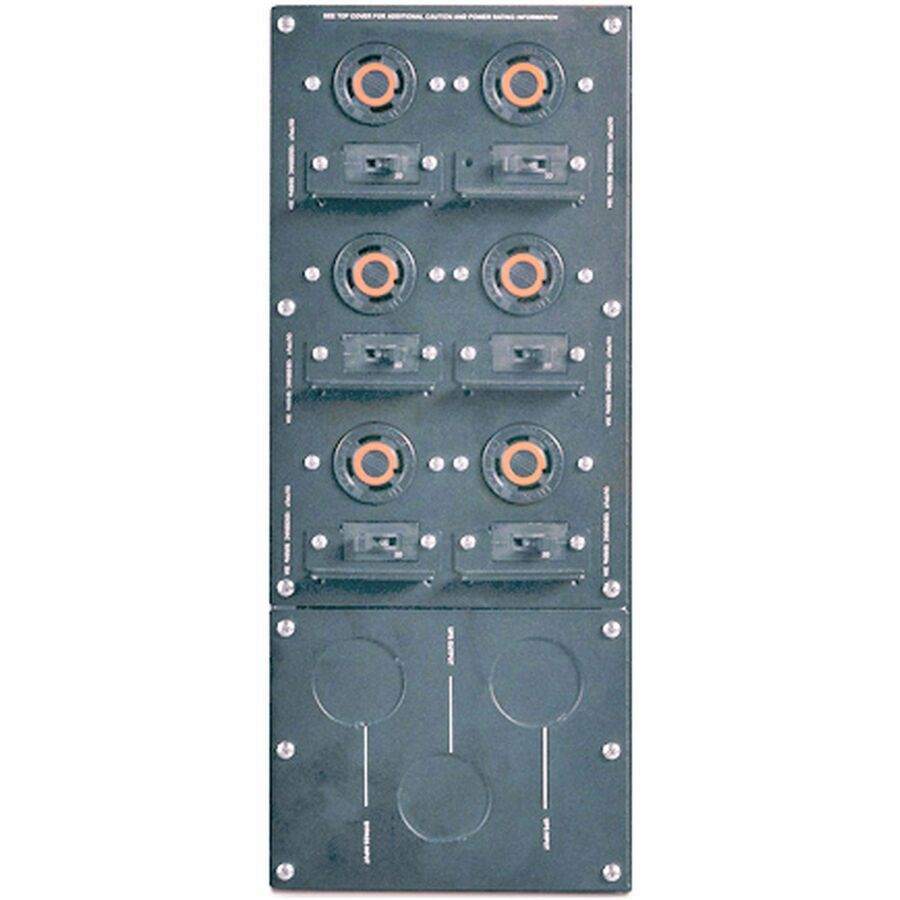

Receptacles:6 x NEMA L14-30R
Protection Type:Overload
Power Description
Load Capacity (VA):20 kW
Input Voltage:208 V AC
Output Voltage:
  • 200 V AC
  • 208 V AC

Current:100 A
Physical Characteristics
Color Family:Black
Product Color:Black
Form Factor:Rack-mountable
Mounting Location:Front
Mounting Preference:Lower
Rack Height:4U
Height:7"
Width:17"
Depth:26.5"
Weight (Approximate):51.10 lb
Miscellaneous
For Country/Region:United States
Package Contents:
  • 19" Rack Mountable 100A Maintenance Bypass Panel
  • Installation guide
  • Rack mounting brackets
  • User manual

    • Certifications & Standards:CSA|GOST
    Product Take Back Program:Yes
    Mercury Free:Yes
    RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SBP16KRMP4U_ROHS_DECLARATION&p_FileName=SBP16KRMP4UKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=764478&lang=en-us
    EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=764478&lang=en-us
    REACH free of SVHC:Yes
    Toxic Heavy Metal Free:Yes
    WEEE Statement:The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Country of Origin:China
    Environmentally Friendly:Yes
    Environmental Compliance:Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty:2 Year
