AC/DC Power Supply, 0 – 30 V, max. 5 A
AC/DC Power Supply, 0 – 30 V, max. 5 A
Regular price
$2,094.40
Sale price
$2,094.40
Regular price
$0.00
Shipping calculated at checkout.
Description
Description
Product Information: ..

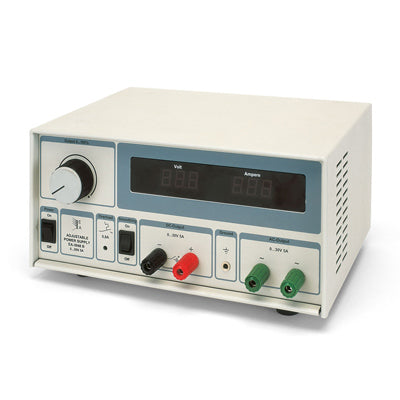

Continuously adjustable AC / DC power supply unit with digital displays for voltage and current readings, particularly suitable for experiments for students and trainees.
The outputs are galvanically isolated. A pushbutton can be used to turn the capacitor filtration of the output direct voltage on and off (smoothing). In the event of an overload, the device is turned off by a thermal overload protection switch.
Sorry, not available in 115 V.
Specifications: ..
DC output: voltage: 0 − 30 V, max. current: 5 A
AC output:.. voltage: 0 − 30 V, max. current: 5 A
Max. output power: 150 VA
Display:. 2 x 3 digit LED
Digit height: 15 mm
Connections: 4 mm jacks
Dimensions: 280 mm x 205 mm x 140 mm approx.
Weight: 8.3 kg approx
Specification
Specification
| Weight | 19.11 lb |
| Product Area | Physics |
