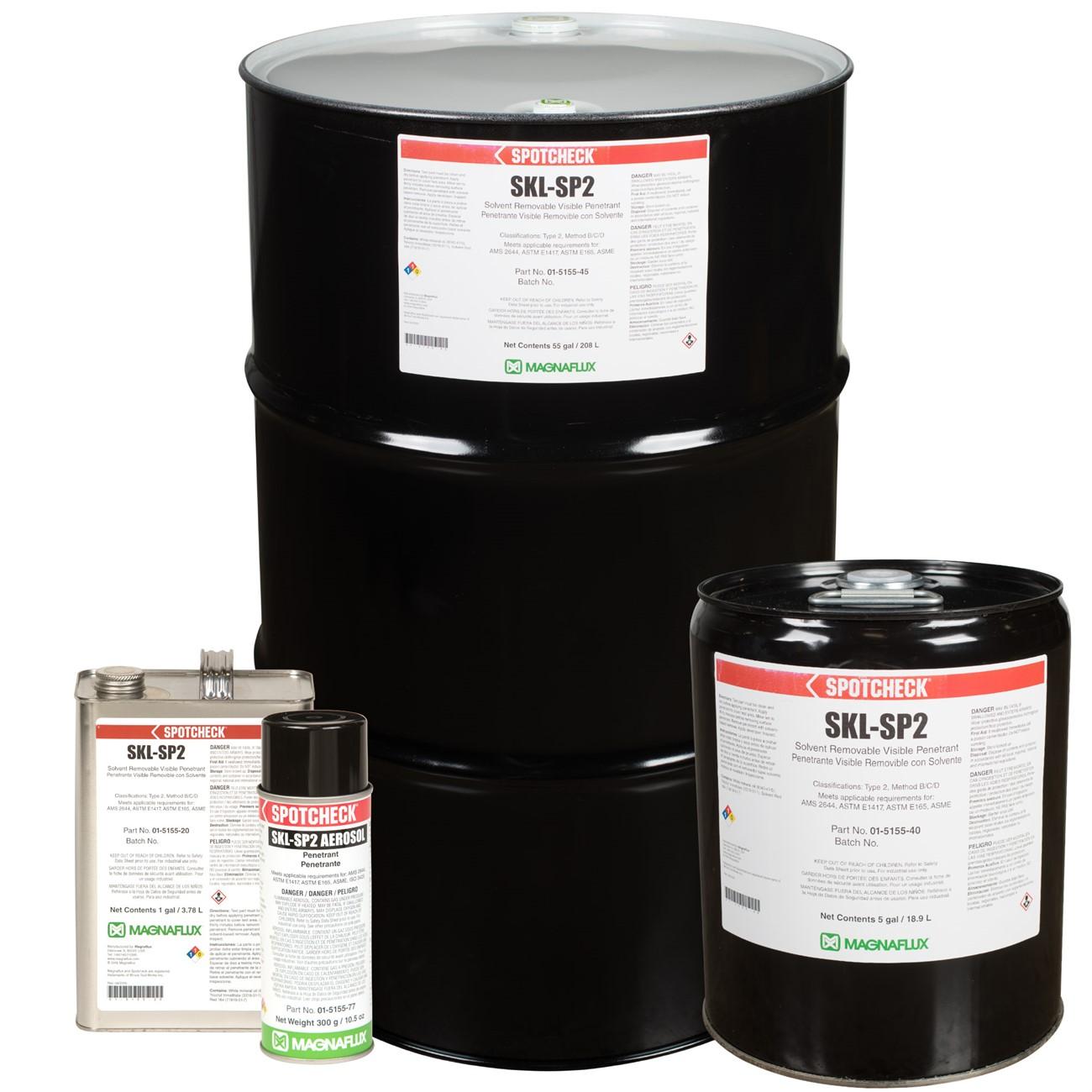

SKL-SP2 is a solvent removable visible red dye penetrant. SKL-SP2 locates surface-breaking discontinuities with a simple three-step process that is ideal for basic industrial nondestructive testing. SKL-SP2 features high-performance penetrating characteristics and produces clear vivid red indications. SKL-SP2 is a reliable penetrant testing method for preventative maintenance and quality checks. SKL-SP2 is used to inspect welds, forgings, pressure vessels, castings, general metalwork and can be used in leak testing applications. SKL-SP2 is listed on QPL-AMS-2644 as Type 2, Methods B, C, and D.

KEY FEATURES

• Solvent removeable
• ISO 3452 sensitivity level #2[EG1]
• Can be used for Method B, Method C and Method D
• Simple, easy-to-use process
• Vivid, high-contrast red color
• Superior flaw resolution
• Good surface wetting
• Optimized capillary action
• Works in visible light
• Very low toxicity
• Low odor
• NDT-spec compliant

BENEFITS

Fastest inspection processing

• Reliable, simple 3-step process is a convenient and easy-to-use solution for preventative maintenance and control checks
• Quickly and completely covers the entire test surface due to high surface wetting
• Remove excess penetrant without water to eliminate the need to dry parts before applying developer?

Dependable and convenient to use

• Easy to carry and use in the field with the convenient aerosol cans which are carefully designed for consistent, even coverage and maximum test area coverage
• Use in all conditions without the need for darkness or UV lights

Maximum indication detection

• Produces strong, vibrant indications thanks to the bright, vibrant red color, especially when used with SKD-S2 solvent-based developer

Wide application versatility

• Inspect a wide range of components without fear of corrosion or specification non-conformance
• Use with various applicators, choose the sprayer that works best for your application
• Meets AMS 2644 and is NDT-approved for professional industrial applications

Applications

Defect location:

Open to Surface

Ideal for:

• Wide range of applications
• Castings
• Forgings
• Welds
• Pressure vessels
• Metalworking
• Automotive maintenance
• Tubular goods
• Leak testing
• Ferrous and non-ferrous metals
• Non-porous ceramics

Defect examples:

• Cracks
• Leaks
• Incomplete weld penetration
• Incomplete weld fusion
• Undercutting
• Slag inclusions
• Flux inclusions
• Weld porosity

Compliance

• AECL
• AMS 2644
• ASME
• ASTM E1417
• ASTM E165
• ISO 3452
• MIL-STD-2132
• MIL-STD-271
• NAVSEA T9074-AS-GIB-010/271
• NAVSEA 250-1500-1
• QPL SAE AMS 2644
